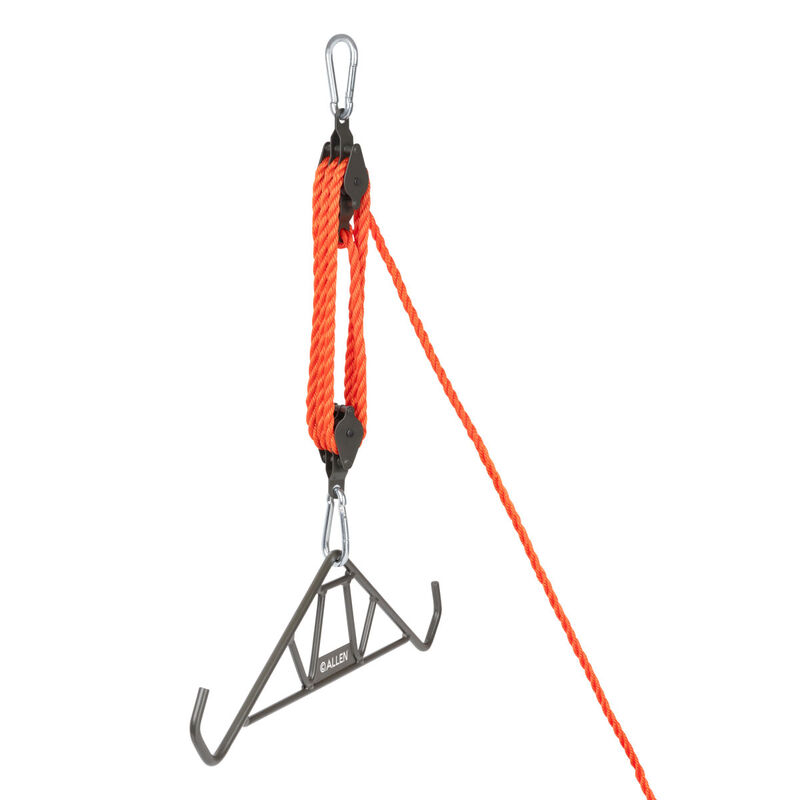

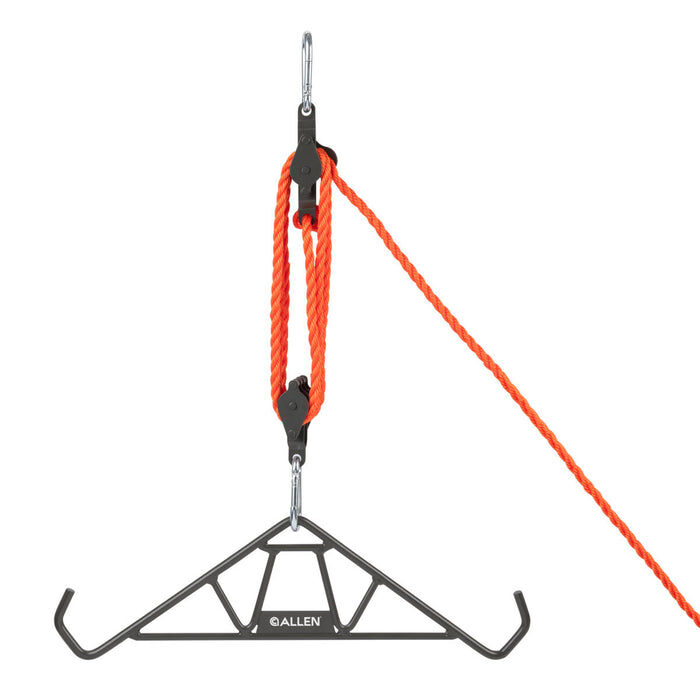

The Allen Heavy Duty Gambrel and Hoist (Model AL7245) is a high-capacity, manual mechanical lifting system engineered for processing large game in the field or at camp. Rated to support and lift up to 1,200 lbs (approximately 544 kg), this heavy-duty kit allows a single operator to safely lift, suspend, and secure heavy carcasses for skinning, dressing, and butchering. Because it operates on a fully manual pulley system, it requires no electrical power, making it highly reliable for remote Australian hunting trips where 240V power is unavailable. Built with a rugged steel construction, this system is designed to withstand the demanding conditions of the Australian bush.

Key Features:

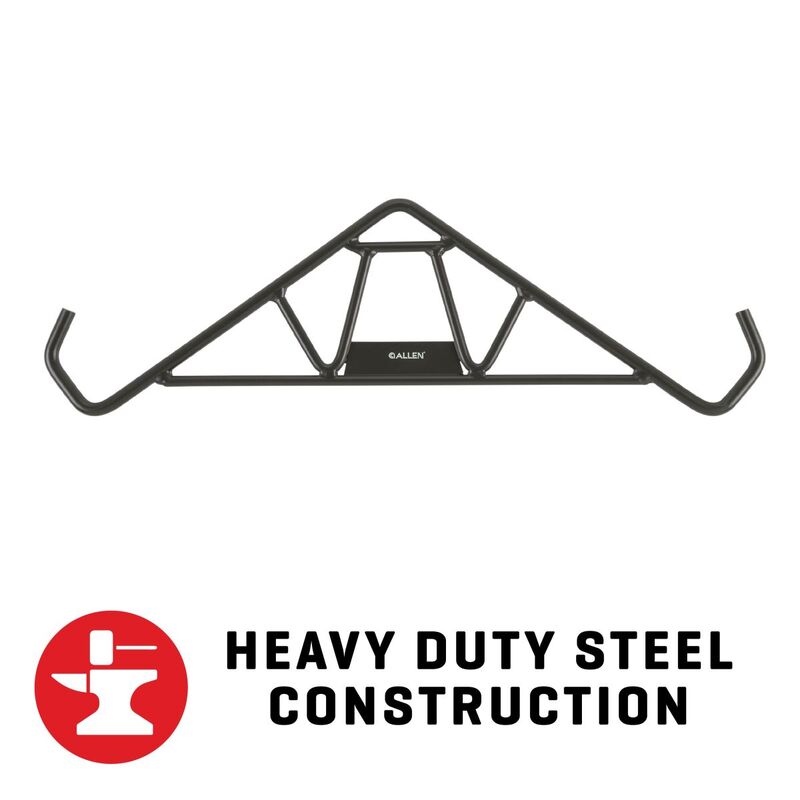

• High-Strength Steel Gambrel: The 25-inch (63.5 cm) wide gambrel is constructed from heavy-duty reinforced steel, providing a wide and stable platform that prevents the hind legs of large game from slipping or bending under load.
• Mechanical Advantage Pulley System: Features a multi-pulley configuration consisting of a 3-wheel hoist and a 2-wheel hoist. This design multiplies your lifting force, making it easier for a single person to hoist heavy carcasses.

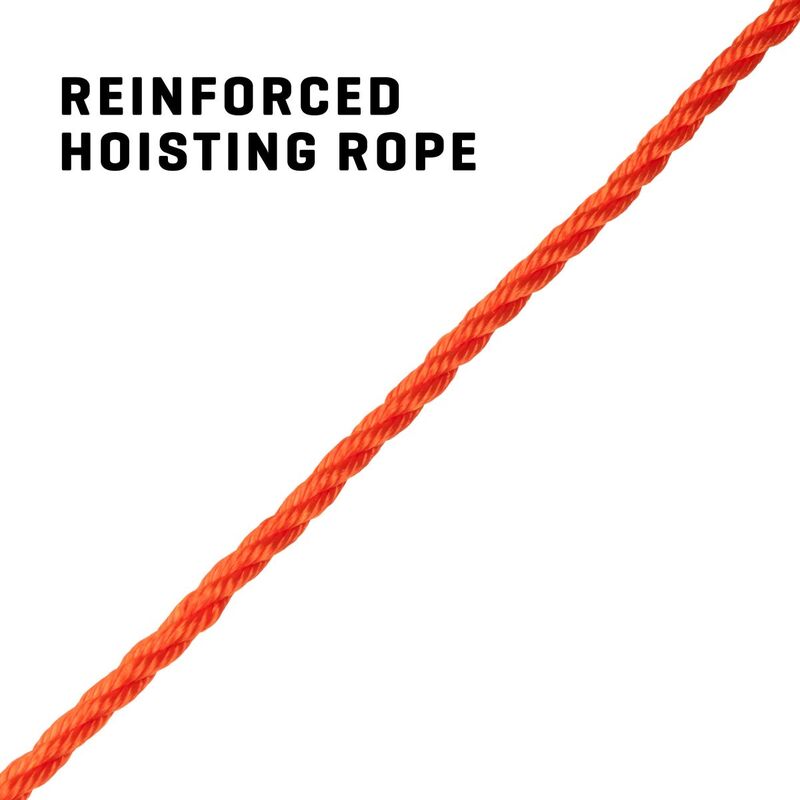

• Heavy-Duty Rope: Comes equipped with 45 feet (13.7 metres) of 1/2-inch (12.7 mm) diameter rope, offering the length and thickness needed for secure knots and comfortable hand gripping.
• Field Portability: Weighing 7.72 lbs (approximately 3.5 kg), the entire kit is compact enough to be packed into a gear bag and easily transported to remote hunting locations.

Specifications:

• Brand: Allen
• Model: AL7245
• Weight Capacity: 1,200 lbs (544 kg)
• Physical Weight: 7.72 lbs (3.5 kg)
• Gambrel Width: 25 inches (63.5 cm)
• Material: Heavy-duty reinforced steel
• Rope Length: 45 feet (13.7 metres)
• Rope Diameter: 1/2-inch (12.7 mm)
• Pulley System: 3-wheel upper hoist and 2-wheel lower hoist
• Power Requirement: None (fully manual mechanical system)

Who It Is For:

This heavy-duty hoist and gambrel kit is designed for Australian hunters, outfitters, and recreational meat processors who target large-sized game and feral pests. It is particularly suited for those hunting Sambar deer, Red deer, Rusa deer, large feral boars, and wild scrub cattle, which frequently exceed the weight limits of standard 440-lb or 500-lb hoists. Whether you are operating in the dense bush of Victoria, the forests of New South Wales, or remote northern territories, this manual system provides a reliable, electricity-free solution for hygienic game processing in any outdoor environment.
