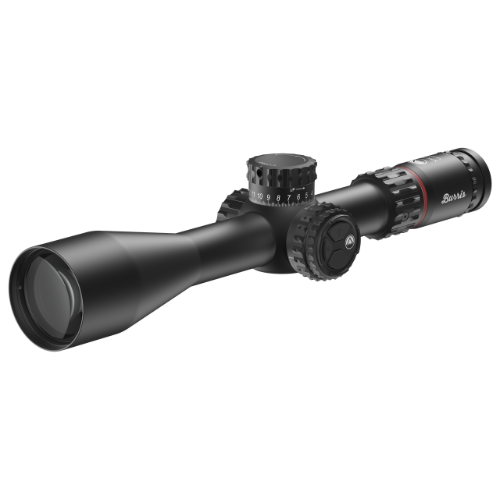

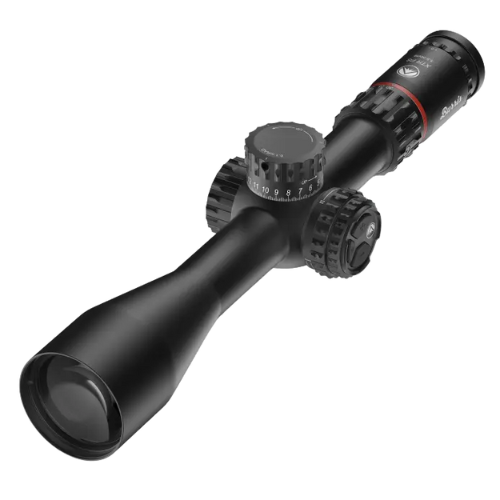

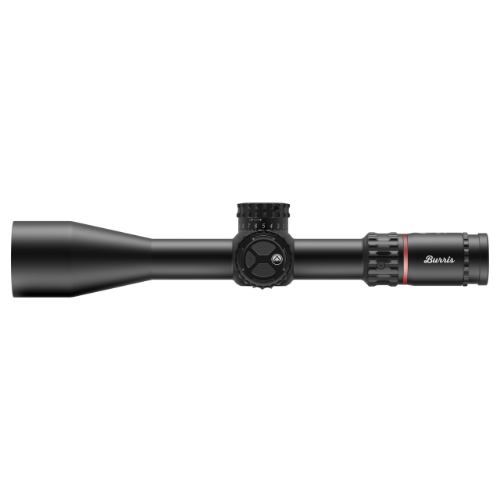

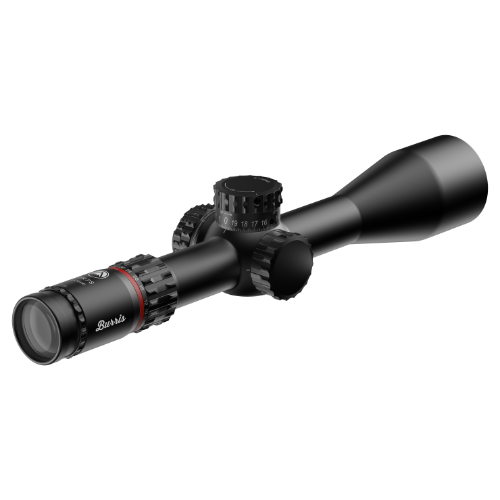

The Burris Xtr Ps 5.5-30x56 Scr2 Mil Illum (Model: BO201230) is a tactical long-range riflescope engineered to combine rugged mechanical construction with advanced onboard digital ballistics technology. Featuring a heavy-duty 34 mm main tube milled from a single piece of 6061-T6 aluminum, this first focal plane (FFP) optic integrates an in-view digital Heads-Up Display (HUD) powered by a single CR123A battery. By pairing a digital position sensor with a clickless turret, the internal electronic processor of the Programmable Elevation Knob (PĒK) system delivers an ultra-precise digital adjustment accuracy of 1/30 MIL.

Key Features

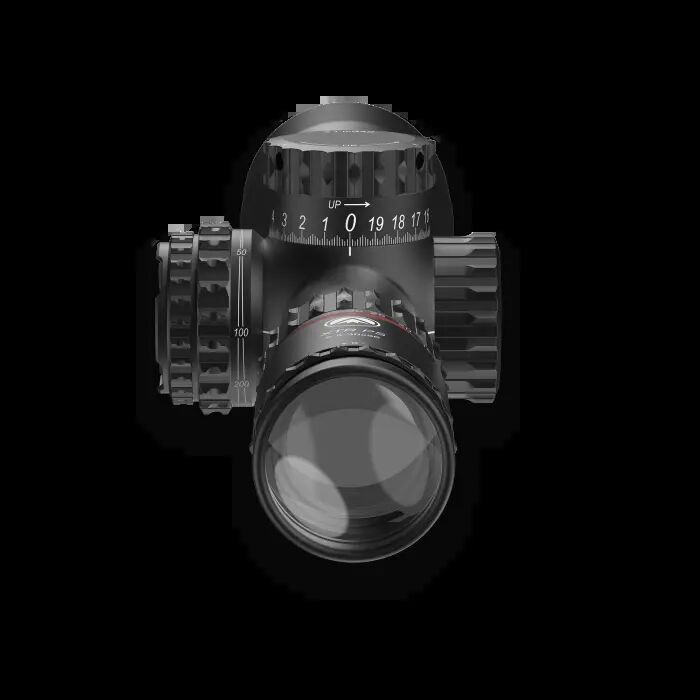

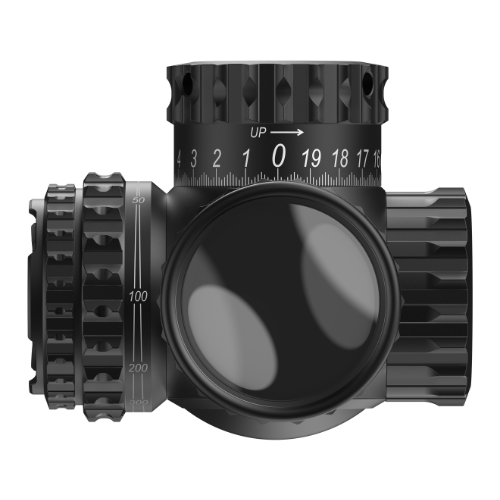

• PĒK (Programmable Elevation Knob) System: Achieves a digital resolution of 1/30 MIL and provides more than 19 MILs of elevation adjustment within a single mechanical rotation of the turret.

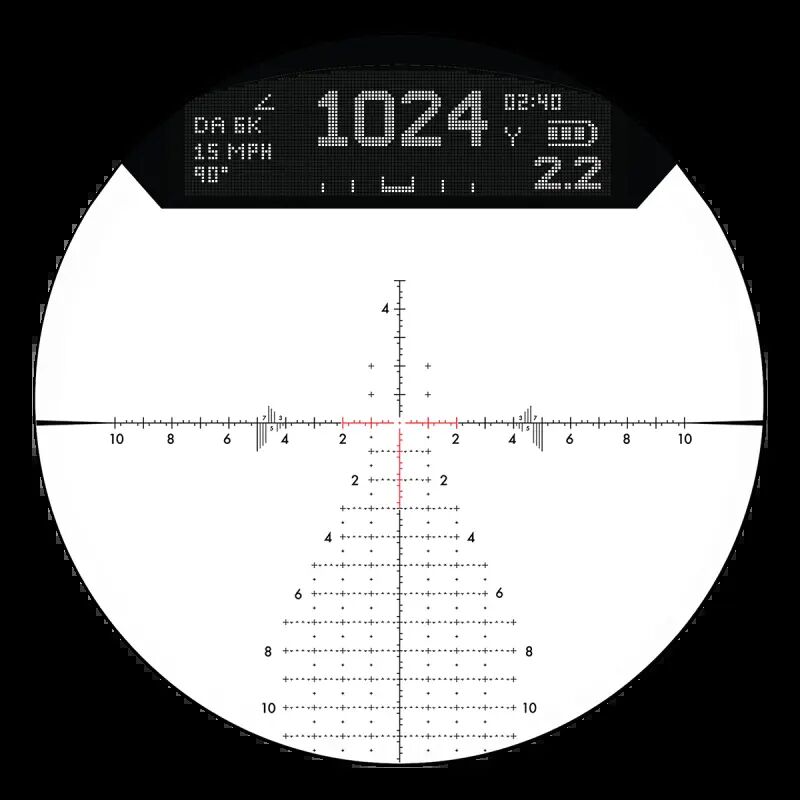

• In-View Digital HUD: Displays eight crucial real-time data zones directly in the shooter's field of view, including dial-to-distance calculations, wind hold, density altitude, angle compensation, a digital level, and an integrated competition countdown timer.
• First Focal Plane SCR 2™ MIL Reticle: Features an illuminated "Christmas tree" style grid reticle with dual-color (red/green) illumination for precise holdover estimation.

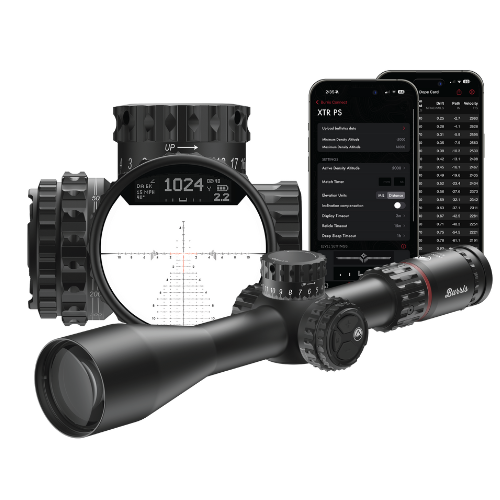

• Bluetooth Connectivity: Interfaces with the BurrisConnect mobile app to upload custom ballistic profiles, allowing the scope to operate completely independently in the field.
• Environmental Resilience: Features an IPX7 waterproof rating to withstand complete submersion and operates across a temperature threshold of -20°F to +140°F (-28.9°C to +60°C).

Product Specifications

• Magnification: 5.5–30x zoom
• Objective Lens Diameter: 56 mm
• Main Tube Diameter: 34 mm
• Total Elevation Adjustment: 26 MIL
• Total Windage Adjustment: 15 MIL
• Click Value: 1/10 MIL manual mechanical click
• Parallax Focus: Side focus adjustable from 20 yards (18.3 meters) to infinity
• Length: 15.4 inches (391 mm)
• Weight: 37.5 oz (1,063 g)
• Power Supply: Off-grid operation via a single CR123A battery (standard Australian 240V compatibility and SAA approvals are not applicable)

Who is the Xtr Ps 5.5-30x56 Scr2 Mil Illum for?

• Precision Rifle Series (PRS) and National Rifle League (NRL) tactical competitors — require the broad 5.5-30x magnification range and built-in HUD countdown timer of this tactical long-range riflescope to rapidly acquire targets and track stage times under strict competitive limits.
• Extreme long-range (ELR) target shooters — benefit from the substantial 26 MIL total elevation adjustment and the 34 mm main tube diameter, which provide the structural strength and mechanical travel required to dial precise trajectories at extreme distances.

Less suitable for: Dynamic hunters and backcountry shooters who require lightweight, mobile setups for long carry durations, as the 37.5 oz (1,063 g) weight profile of this optic makes traditional, non-electronic lightweight scopes a more suitable choice for high-mobility applications.
