Is the Champion Workhorse Throwing Arm Assembly compatible with the complete CH40916 electronic trap unit?

Yes, the CH40916-TA part is specifically engineered as the official replacement throwing arm assembly for the Champion Workhorse Electronic Auto-Feed Trap (SKU CH40916). It interfaces directly with the central drive shaft and motor gearbox. It maintains the original factory performance, including the 2.5-second reset cycle.

What size clay targets can this replacement arm handle during field practice?

This throwing arm assembly is built to securely launch standard 108 mm and 110 mm clay targets fed from the 50-target magazine stack. It features a high-friction rubber and neoprene strip designed to impart clean, consistent spin without breaking delicate clays. Note that it is not optimized for non-standard mini, midi, or battue specialty clays.

Does this mechanical replacement part have any electrical compliance requirements in Australia?

No, the throwing arm itself is a purely mechanical component consisting of the flight rail, arm bracket, and rubber strip. While the parent Champion Workhorse trap operates on an external 12-volt DC battery system rather than 240V mains power, this mechanical spare part requires no electrical certifications or SAA/RCM compliance.

Clay Trap Arm - Champion CH40916-TA

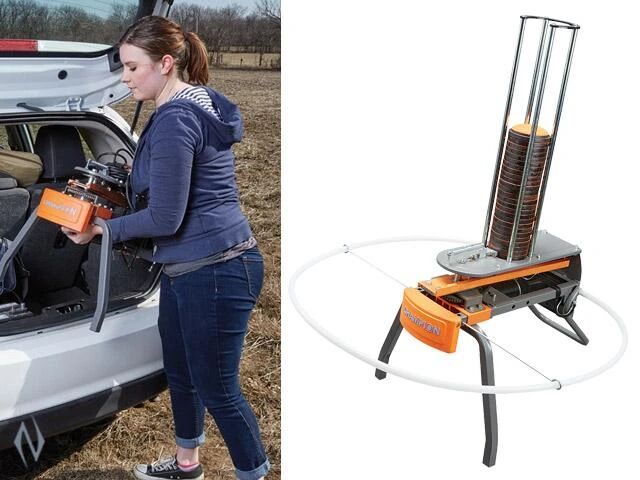

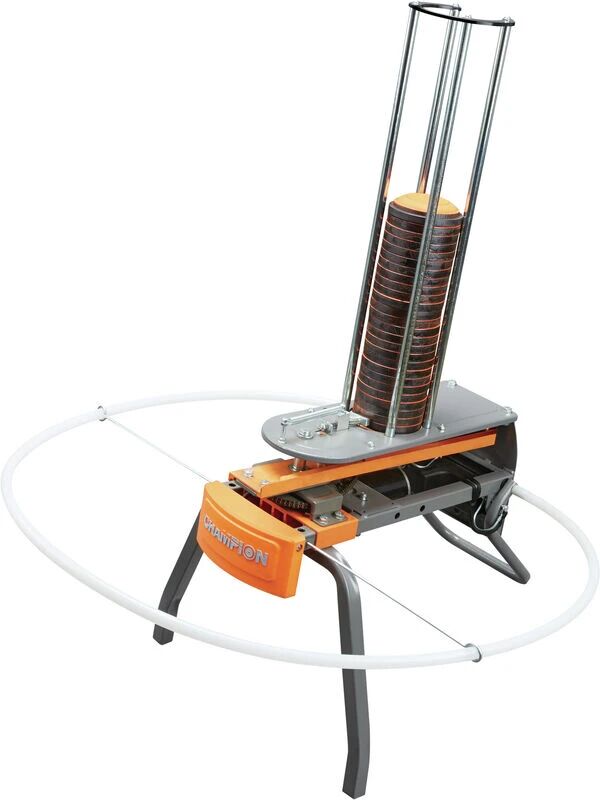

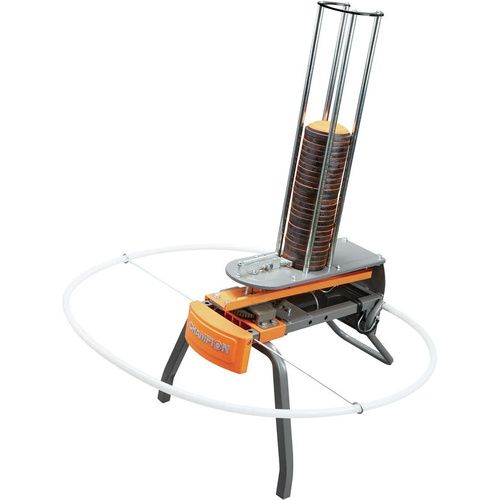

The Champion Workhorse Throwing Arm Assembly (CH40916-TA) is an OEM replacement mechanical launching arm engineered specifically for the Champion Workhorse Electronic Auto-Feed Trap (CH40916). Designed to restore factory launching performance on worn, bent, or damaged units, this assembly mounts directly to the trap's central drive shaft and motor gearbox. It features a rigid arm bracket, flight rail, and a high-friction rubber/neoprene throwing strip designed to accelerate targets smoothly and impart stable aerodynamic spin without fracturing clays during high-speed cycling.

Key Features

Direct OEM Fit: Engineered specifically to interface with the central drive shaft and motor gearbox of the Champion Workhorse Auto-Feed Trap.
Consistent Target Spin: Integrated high-friction rubber/neoprene strip provides clean traction along the flight rail to spin clays consistently upon release.
Standard Clay Compatibility: Sized and profiled to launch standard 108 mm targets as well as 110 mm international clay targets.
Full Launch Capability: Restores the parent machine's capability to propel clay targets out to a throwing distance of 75 yards (~68.5 metres) across 3 selectable launch angles.
Rapid Cycling Durability: Mechanical structure engineered to support the trap's continuous 2.5-second reset cycle from the 50-target magazine stack.

Specifications

Product Type: Clay target thrower replacement throwing arm assembly
Target Compatibility: Standard 108 mm and 110 mm international clays
Parent Machine Compatibility: Champion Workhorse Electronic Trap (Model #40916 / CH40916)
Parent Power System: 12V DC battery operation (field-powered via alligator clips)
Launch Distance (when fitted to parent trap): Up to 75 yards (~68.5 metres)
Parent Cycle Time: 2.5-second reset cycle
Magazine Capacity of Parent Unit: 50 clays
Parent Machine Total Weight: Approximately 18.5 kg (40.8 lbs)

Who is the Champion Workhorse Throwing Arm Assembly for?

Recreational Shotgun Shooters — Needs to maintain consistent flight paths on standard 108 mm and 110 mm clays without replacing their entire Champion Workhorse auto-feed unit after high-volume field use.
Private Landowners Conducting High-Volume Shotgun Training — Requires a durable replacement arm capable of sustaining rapid 2.5-second reset cycles and throwing targets out to distances of 75 yards (~68.5 metres).

Less suitable for: Commercial clay grounds running multi-thousand-target daily throughput or shooters using non-standard 60 mm mini, 90 mm midi, or battue specialty clays; continuous daily competition requires heavy-duty commercial-grade clay target throwers with dedicated multi-size magazine adapters.

SKU	CP40213LP
Model #	CH40916-TA
Brand	Champion
Shipping Weight	1.0000kg
