Will the Champion Sight Easyhit Red 2.5mm fit my shotgun rib and do I need any special tools to install it?

The sight is designed for a universal fit on any flat or ventilated shotgun rib across 12, 20, 28, and .410 gauges, provided the rib width is at least 6mm for full adhesive contact. It attaches via a toolless self-adhesive strip directly behind your existing bead, meaning no drilling or gunsmithing is required.

How does the 2.5mm bead perform in low-light conditions like dawn or dusk out in the Australian bush?

The sight uses a 100% passive ambient-light gathering system that glows brightly in daylight, overcast skies, and dawn or dusk conditions. However, because it relies entirely on ambient light without batteries or tritium, it cannot illuminate in total pitch-black darkness.

Does this fibre optic sight require any Australian electrical or regulatory compliance certifications?

No electrical compliance or SAA/RCM certifications are required. The Champion EasyHit is a completely passive, non-electrical optical accessory and is a non-regulated firearm accessory across all Australian states and territories.

How does the 2.5mm diameter fibre optic model affect precision compared to larger bead options?

The 2.5mm diameter bead subtends less of the target picture than a larger 3.0mm bead, making it ideal for longer-distance clay targets or wing shots that require finer aiming precision. It also features a hooded tube design to ensure only your dominant eye sees the dot, correcting cross-eye dominance while maintaining full peripheral vision.

Shotgun Sight - Champion CH45843

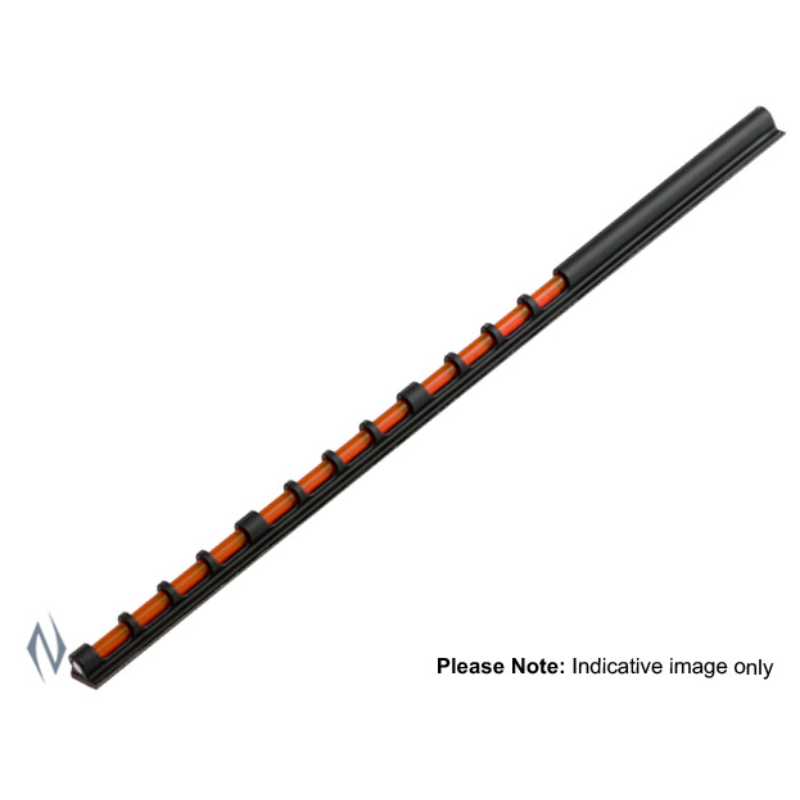

The Champion Sight Easyhit Red 2.5mm - 2.75" Fibre Optic is a passive, ambient-light gathering shotgun sight designed to improve target acquisition without altering point of impact. Built with an anodised aerospace-grade aluminium housing, it mounts directly to any flat or ventilated shotgun rib via an integrated self-adhesive strip placed behind the existing front bead. The hollow, hooded tube design restricts the red optical dot exclusively to the shooter's dominant eye, eliminating cross-eye dominance issues and enabling natural both-eyes-open shooting across 12 gauge, 20 gauge, 28 gauge, and .410 bore platforms.

Key Features

Dominant-Eye Hooded Design: Ensures only the aligned eye sees the red optical reference, correcting cross-dominance and preserving binocular peripheral vision.
Passive Light Gathering: Operates entirely on ambient light across daylight, overcast, and dawn or dusk conditions without batteries, tritium, or external power.
Zero Point-of-Impact Shift: Low-profile aluminium housing sits flush on the rib surface to maintain existing shotgun elevation and sight alignment.
Universal Adhesive Mounting: Toolless industrial self-adhesive backing secures directly to flat, solid, or ventilated ribs with a minimum width of 6 mm.

Specifications

Fibre Optic Diameter: 2.5 mm (0.098")
Overall Length: 2.75 inches (approx. 70 mm)
Housing Material: Anodised aerospace-grade aluminium
Illumination Source: 100% passive ambient light gathering
Mounting Interface: Direct self-adhesive strip
Installed Weight: Under 15 g (gross weight approx. 36 g)
Calibre Compatibility: 12 ga, 20 ga, 28 ga, and .410 bore shotguns with flat or ventilated ribs

Who is the Champion EasyHit Shotgun Sight Red 2.5mm - 2.75" for?

Clay Target Competitors — Benefits trap, skeet, and sporting clays shooters by providing a fine 2.5 mm fibre optic diameter that subtends minimal target area, ensuring precise lead placement on distant clays while maintaining a compact 2.75 inches footprint on the shotgun rib.
Field Wingshooters — Supports hunters pursuing ducks, quail, and pheasants by using a 2.75 inches long light-gathering tube to produce a bright red aiming reference in natural daylight, paired with a 2.5 mm dot that allows fast, both-eyes-open tracking of fast-flushing birds.

Less suitable for: Zero-light night operations where passive ambient light is absent; situations requiring active target acquisition in pitch-black environments are better served by battery-powered red dot sights or active tritium-illuminated night sights.

SKU	CP40223LP
Model #	CH45843
Brand	Champion
Shipping Weight	1.0000kg
