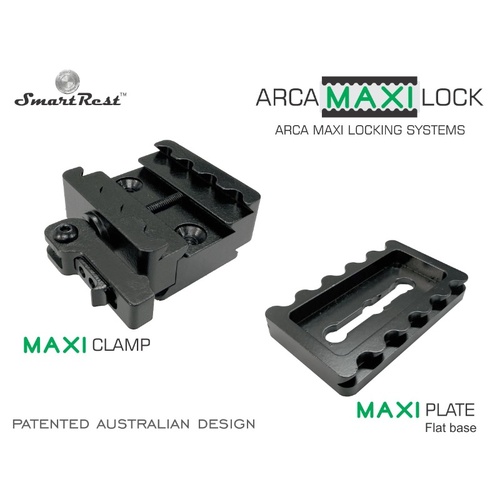

The Eagleye Arca Maxi Lock System (Model: SRAML) is a high-security, two-part mechanical mounting solution designed to provide rock-solid stability for precision equipment. Developed by Australian brand Eagleye Hunting Gear, this innovative system consists of a uniquely grooved Arca Maxi Lock Plate and a matching grooved Arca Maxi Lock Clamp. Unlike traditional Arca-Swiss style systems that rely solely on friction between smooth metal sidewalls, the SRAML features an interlocking design that completely eliminates slippage. This makes it an exceptional choice for securing high-value optical gear, firearms, and cameras in rugged outdoor environments across Australia.

Key Features:

• Grooved Interlocking Design: The plate and clamp feature specially engineered grooved sidewalls with curved, non-jagged teeth that interlock securely when tightened, preventing any forward or backward movement under heavy recoil or vibration.

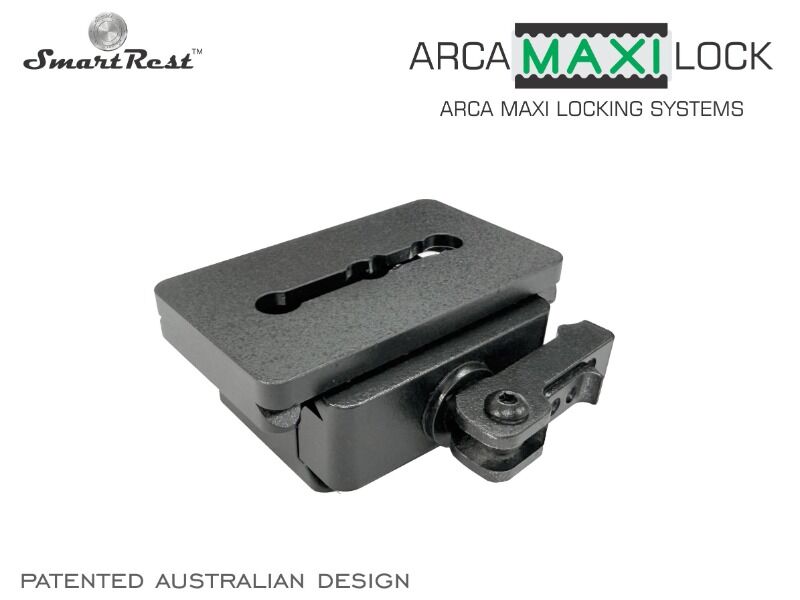

• Cam Lock Lever with Pin Lock: The clamp is equipped with a robust cam lock lever that includes an integrated, spring-loaded safety pin lock to prevent accidental release or opening during transport or use.
• Dual Rail Compatibility: In addition to accepting the proprietary grooved Arca Maxi Lock Plates, the center channel of the clamp is designed to securely lock onto standard Picatinny size rails.
• Standard Arca Base Profile: The underside of the Maxi Lock Clamp features a standard Arca-Swiss profile, allowing it to be easily integrated into existing standard Arca-compatible tripod heads and mounting platforms.

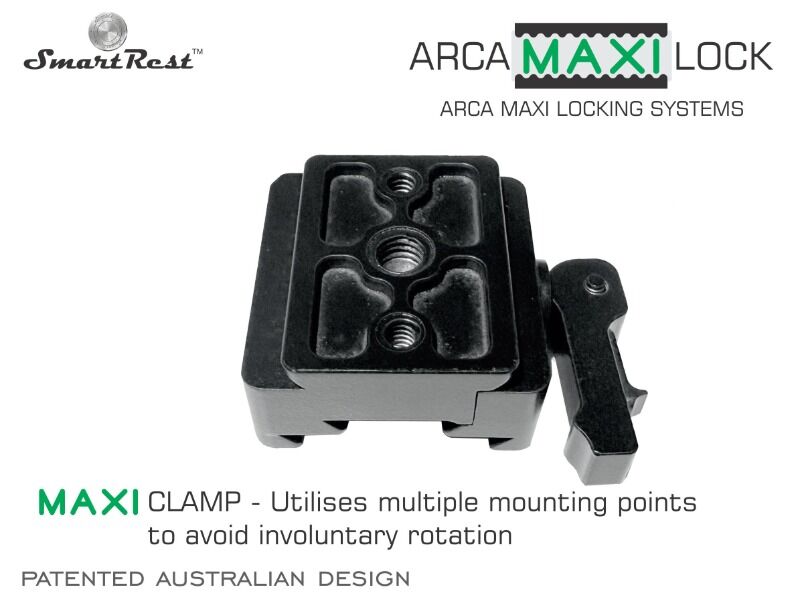

• Multiple Mounting Threads: The base of the clamp features three female threaded holes, providing direct compatibility with standard 1/4-inch and 3/8-inch male mounting screws for attachment to various plates, tripods, or custom shooting rests.

Specifications:

• Brand: Eagleye
• Model: SRAML
• System Type: Mechanical interlocking Arca and Picatinny mounting system
• Power Requirements: None (100% mechanical operation)
• Base Compatibility: Standard Arca-Swiss clamps, plus 3 x female threaded underside holes (compatible with 1/4-inch and 3/8-inch male threads)
• Clamp Compatibility: Eagleye Grooved Arca Maxi Lock Plates (top section) and standard Picatinny rails (center dovetail channel)
• Locking System: Cam lock lever with manual spring-loaded safety pin engagement

Who It Is For:

The Eagleye Arca Maxi Lock SRAML is specifically engineered for Australian hunters, long-range precision shooters, and professional wildlife photographers who require absolute stability for their equipment. It is highly beneficial for shooters utilizing heavy thermal optics, spotters, or rifles on tripod systems where standard friction mounts might slip under heavy recoil. Additionally, it is an ideal upgrade for those using Eagleye SmartRest systems or standard photographic tripods who want to transition seamlessly between Picatinny and Arca mounting interfaces without compromising on security.
