The Frankford Arsenal Fx-10 Bullet Feeder Conversion Kit 45 Acp (MPN: FA-FX10CK45ACP / 1194191) is a dedicated calibre conversion kit designed for the Frankford Arsenal X-10 Progressive Reloading Press and X-10 Bullet Feeder Collator. This mechanical assembly integrates into the X-10 toolhead to drop and seat .45 ACP projectiles in a single station, saving space on the toolhead for dedicated crimping or powder-check dies. The seating die features an integrated micrometer with 0.001″ increment markings for precise, repeatable bullet seating depth adjustments.

Key Features

• Combined Feed and Seat Operation: Delivers and seats .45 ACP bullets in a single press station cycle, leaving open stations on the X-10 toolhead for auxiliary dies.
• Micrometer Seating Die: Features calibrated 0.001″ increment markings on the die top for precise depth management and fast profile changes.
• Calibre-Specific Feed System: Includes a .45 ACP collator plate and matching feed shuttle/dropper assembly engineered specifically for correct bullet orientation.
• Passive Mechanical Actuation: Operates directly via the press cycle stroke without onboard electronics, wiring, or independent power requirements.

Specifications

• Brand: Frankford Arsenal
• Model / MPN: FA-FX10CK45ACP (SKU: 1194191)
• Calibre Compatibility: .45 ACP only
• Press System Compatibility: Frankford Arsenal X-10 Progressive Press toolhead and X-10 Bullet Feeder Collator
• Adjustment Resolution: 0.001″ micro-adjustments
• Power Requirements: None (mechanically actuated by the press cycle)
• Package Dimensions: Approximately 10.8″ L × 10.15″ W

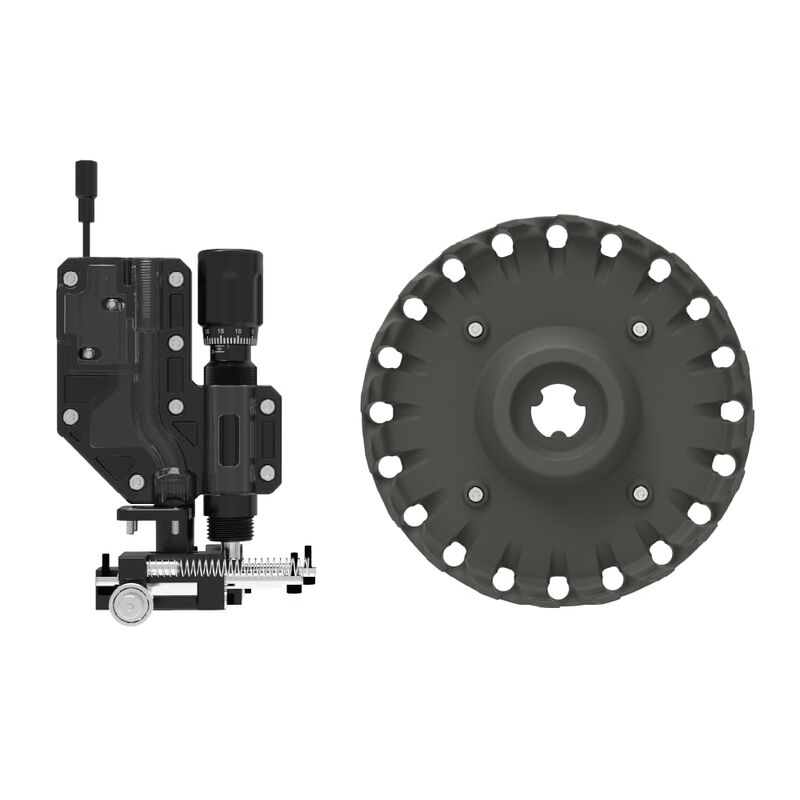

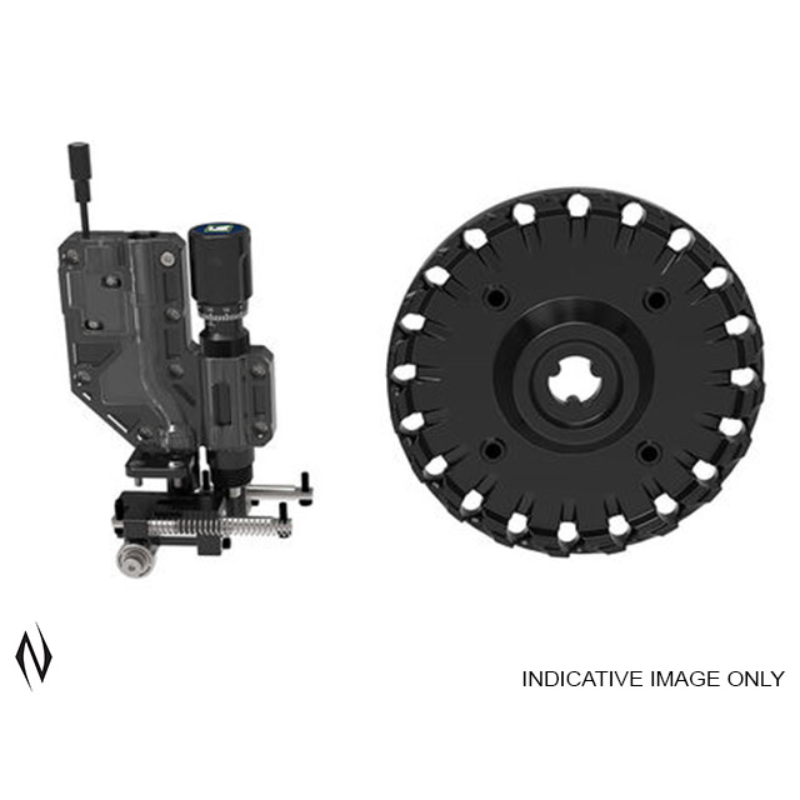

• Included Components: .45 ACP collator plate, bullet feed shuttle/dropper assembly, micrometer bullet seating die assembly

Who is the Frankford Arsenal X-10 Bullet Feeder Conversion Kit .45 ACP for?

• High-Volume .45 ACP Progressive Reloaders — Delivers automated projectile orientation and seating in a single station on the Frankford Arsenal X-10 press, utilising a micrometer seating die calibrated in 0.001″ increment markings to maintain exact overall cartridge lengths across large production batches of .45 ACP ammunition.

Less suitable for: Reloaders operating standard 7/8″-14 threaded single-station press setups or alternate calibres without changing hardware; this system does not support calibres other than .45 ACP without swapping the collator plate and conversion assembly, and reloaders on standard multi-brand presses require a standalone 7/8″-14 threaded bullet-feeding die system.
