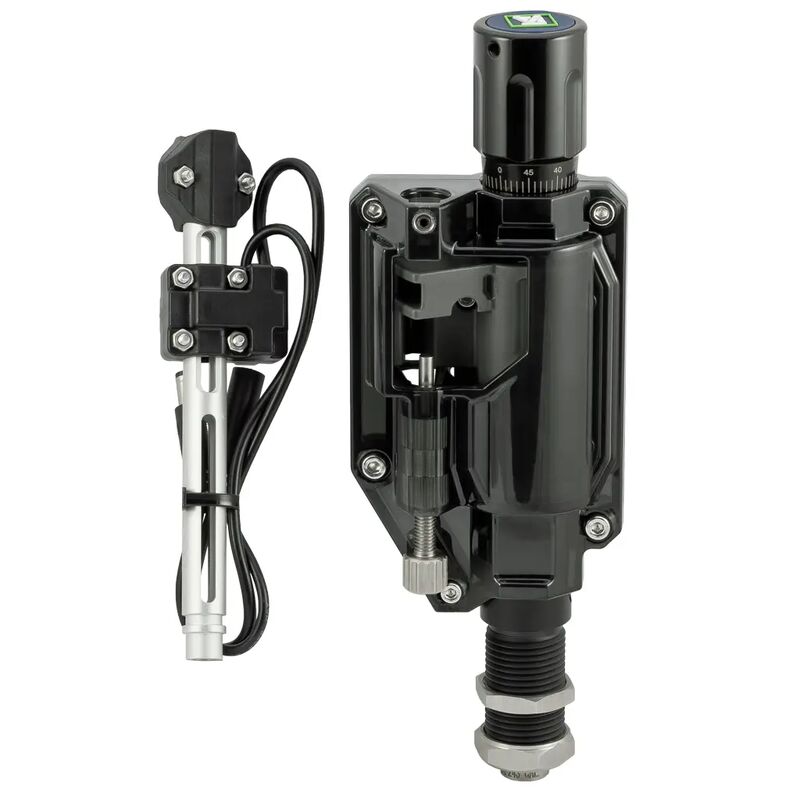

The Frankford Arsenal Fx-10 Bullet Feeder Conversion Kit Rifle .22 is a highly specialized, purely mechanical accessory designed to automate bullet feeding and seating on a progressive press. By integrating two critical steps of the reloading process into a single station, this conversion kit increases hourly reloading throughput for high-volume reloaders while maintaining precise, repeatable tolerances.

Key Product Features

• 2-in-1 Seating and Feeding: This kit integrates projectile feeding and seating into a single station. By combining these steps, it frees up an open station on the 10-station shell plate of the press, allowing reloaders to utilize dedicated crimping or powder-checking dies.
• Precise Micrometer Adjustment: Features a micro-adjustable seating depth mechanism that allows reloaders to dial in seating depth in ultra-precise 0.001" increments.
• Mechanical Shuttle Control: Equipped with an integrated manual on/off switch, allowing the operator to suspend bullet feeding instantly when setting up the press or clearing a case.

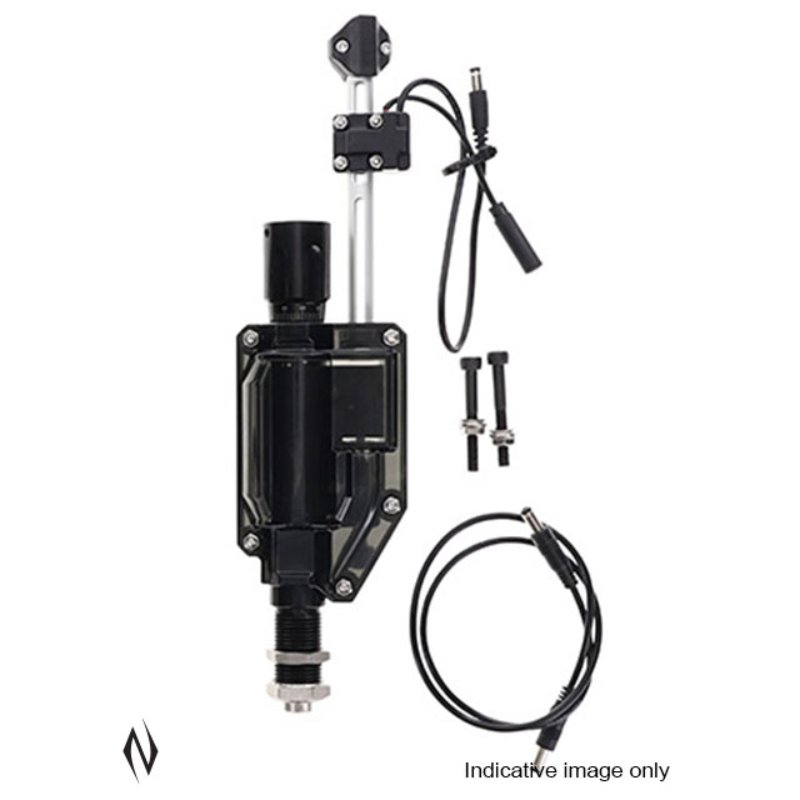

• Complete Caliber-Specific Package: The kit includes a caliber-specific bullet feed and shuttle assembly, a micrometer seating die, and the matching .22 caliber rifle collator plate designed to install directly into the bullet collator tub.

Technical Specifications

• Compatible Press: Frankford Arsenal X-10 / FX-10 Progressive Reloading Press only
• Required Companion Equipment: Frankford Arsenal X-10 Rifle Bullet Feeder Collator (sold separately)
• Compatible Projectile Caliber: .22 caliber rifle projectiles (such as .223 Remington and 5.56mm NATO)
• Seating Adjustment Increments: 0.001"
• Power Requirements: None. This assembly is entirely mechanical; any motorized operation is handled by the separate, standalone collator unit.
• Australian Power Compliance: Because this conversion kit contains no electrical components, it does not require 240V configuration or SAA/RCM electrical safety certifications for use in Australia.

Who is the Frankford Arsenal Fx-10 Bullet Feeder Conversion Kit Rifle .22 for?

• High-volume reloaders of .223 Remington and 5.56mm NATO ammunition — provides automated mechanical feeding and seating of .22 caliber rifle projectiles to increase hourly reloading throughput while maintaining precise control with a 0.001" micrometer seating depth adjustment on the Frankford Arsenal FX-10 progressive press.
• Competitive shooters seeking to maximize progressive press throughput — utilizes a 2-in-1 seating and feeding mechanism to free up a station on the 10-station shell plate, allowing the integration of dedicated crimping or safety dies while loading .22 caliber rifle cartridges to precise 0.001" seating tolerances.

Less suitable for: Reloaders processing cartridges larger or smaller than .22 caliber rifle projectiles, or those utilizing progressive presses from other manufacturers. Reloading other calibers requires a different caliber-specific progressive press bullet feeder conversion kit, while other press brands require brand-specific die and plate assemblies.
