What components are included in the Frankford Arsenal X-10 .243 Rifle Bullet Feeder Conversion Kit?

This kit includes a calibre-specific bullet collator plate, a feed and shuttle assembly, and a micrometer-adjustable bullet feeding and seating die assembly with an integrated microswitch shut-off mechanism. It is engineered specifically to handle .243 Winchester and compatible 6mm projectiles measuring 0.243 inches in diameter.

Can I use this conversion kit on a standard single-stage press or a third-party progressive press like a Dillon or Hornady?

No, this conversion kit is exclusively designed for the Frankford Arsenal X-10 progressive reloading press ecosystem and tool head. It is incompatible with standard 7/8"-14 single-stage presses or progressive presses made by third-party manufacturers.

Does this conversion kit require any electrical certification or Australian power adapters for use in Australia?

As a purely mechanical conversion kit containing dies, plates, and drop tubes, it does not require mains power, batteries, or SAA/RCM electrical certification on its own. However, if you are pairing it with the Frankford Arsenal powered rifle bullet collator unit, ensure that the collator's power supply is rated for 240V 50Hz with an Australian AS/NZS 3112 plug.

How does the integrated cut-off switch function during high-volume .243 reloading sessions?

The die assembly features a built-in microswitch that automatically communicates with the X-10 Rifle Bullet Collator to stop projectile feeding once the drop tube or die assembly is full. This prevents overfilling and eliminates frustrating bullet jams during rapid progressive cycling.

6mm Bullet Feeder Kit - Frankford FA-FX10CKR243

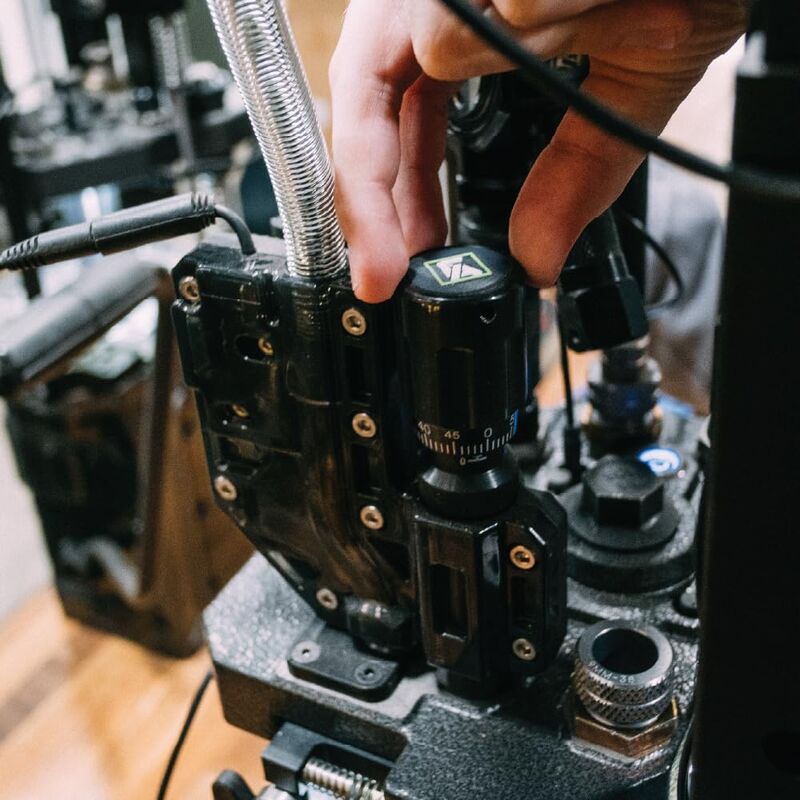

The Frankford Arsenal Fx-10 Bullet Feeder Conversion Kit Rifle .243 (Model: FA-FX10CKR243) is a dedicated progressive reloading accessory designed to automate bullet delivery and seating on the Frankford Arsenal X-10 progressive press. Built specifically for .243 in / 6.17 mm diameter rifle projectiles, this conversion kit combines feeding and seating into a single station on the X-10 tool head. It operates mechanically with the Frankford Arsenal X-10 Rifle Bullet Collator to deliver continuous, aligned projectile feeding while freeing tool head stations for separate case-preparation and quality-check operations.

Key Features

Simultaneous Feed and Seat: Combines projectile feeding and seating into a single station on the X-10 progressive tool head, freeing additional stations for powder check, crimping, or case-trimming dies.
Micrometer-Adjustable Seating Stem: Provides precise, repeatable projectile seating depth adjustments for .243 in / 6.17 mm rifle loads.
Integrated Microswitch Shut-Off: Features a built-in cut-off switch that automatically stops the bullet collator motor when the feed assembly is full, preventing press jams.
Calibre-Specific Hardware: Includes a dedicated collator plate, feed/shuttle assembly, and bullet feeding/seating die engineered for 6mm rifle projectiles.
Passive Mechanical Interface: Requires no direct mains electrical connection or SAA/RCM electrical certification on the conversion kit assembly itself.

Specifications

Manufacturer: Frankford Arsenal
Model / SKU: FA-FX10CKR243
Calibre Compatibility: .243 Winchester and 6mm rifle projectiles
Bullet Diameter: .243 in / 6.17 mm
Press System Compatibility: Frankford Arsenal X-10 Progressive Press exclusively
Required Powered Accessory: Frankford Arsenal X-10 Rifle Bullet Collator (sold separately)

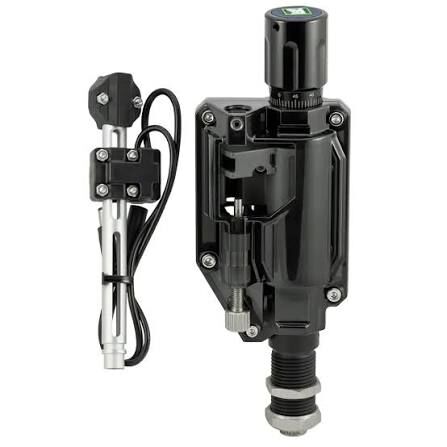

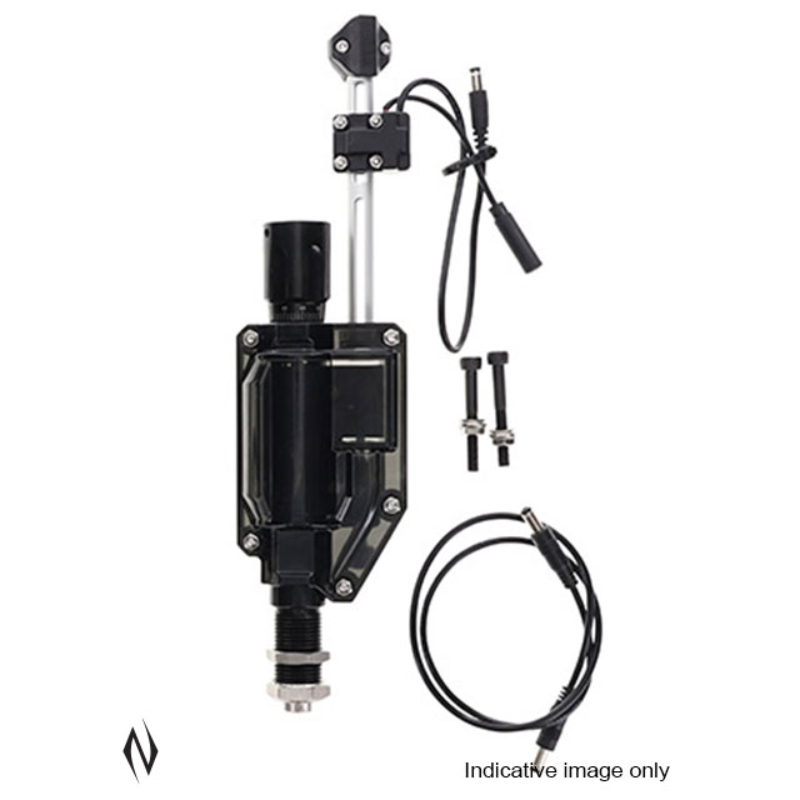

Included Components: Calibre-specific collator plate, feed shuttle assembly, micrometer bullet feed and seat die with integrated microswitch
Power Requirements: Passive mechanical operation (collator unit provides drive)

Who is the Frankford Arsenal X-10 Bullet Feeder Conversion Kit .243 for?

High-volume .243 Winchester competitive precision rifle shooters — Delivers automated single-station feeding and seating for match projectiles measuring .243 in / 6.17 mm in diameter, allowing this bullet feeder conversion kit to maintain uniform seating depths during high-volume batch loading.
Reloaders mass-producing .243 hunting ammunition on a Frankford Arsenal X-10 press — Automates the handling of .243 in / 6.17 mm bullets on the X-10 tool head, freeing up die stations for dedicated crimping and powder-check operations during high-output reloading runs.

Less suitable for: Reloaders working with calibres outside the .243 in / 6.17 mm threshold (such as .223/5.56, 6.5mm, or .30 cal), or those using standard 7/8"-14 single-stage or third-party progressive presses; these setups require dedicated calibre-specific conversion kits or universal standard-thread bullet seating dies.

SKU	FF39535LP
Model #	FA-FX10CKR243
Brand	Frankford
Shipping Weight	1.0000kg
