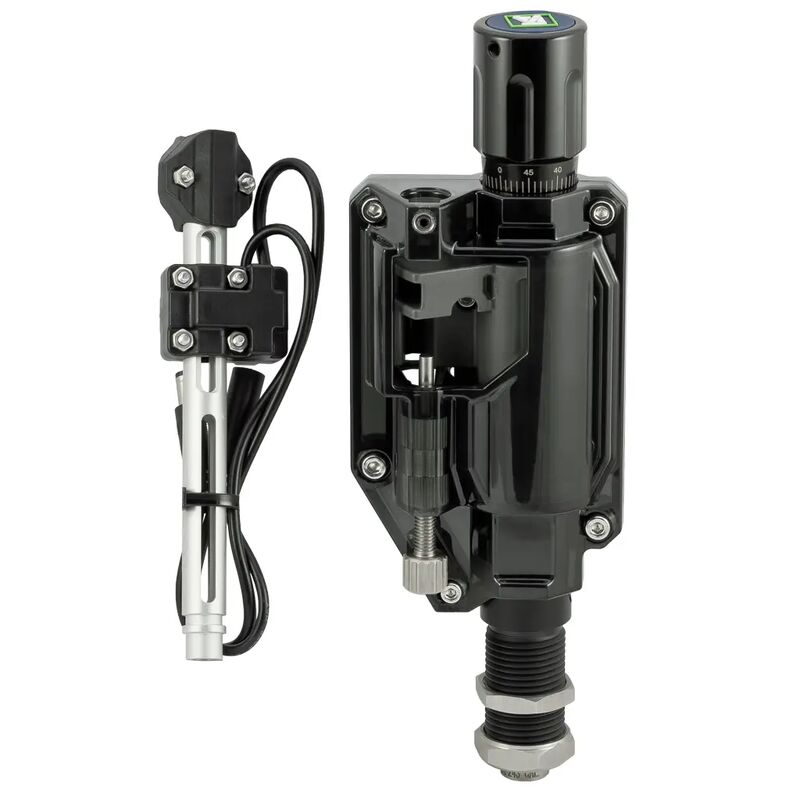

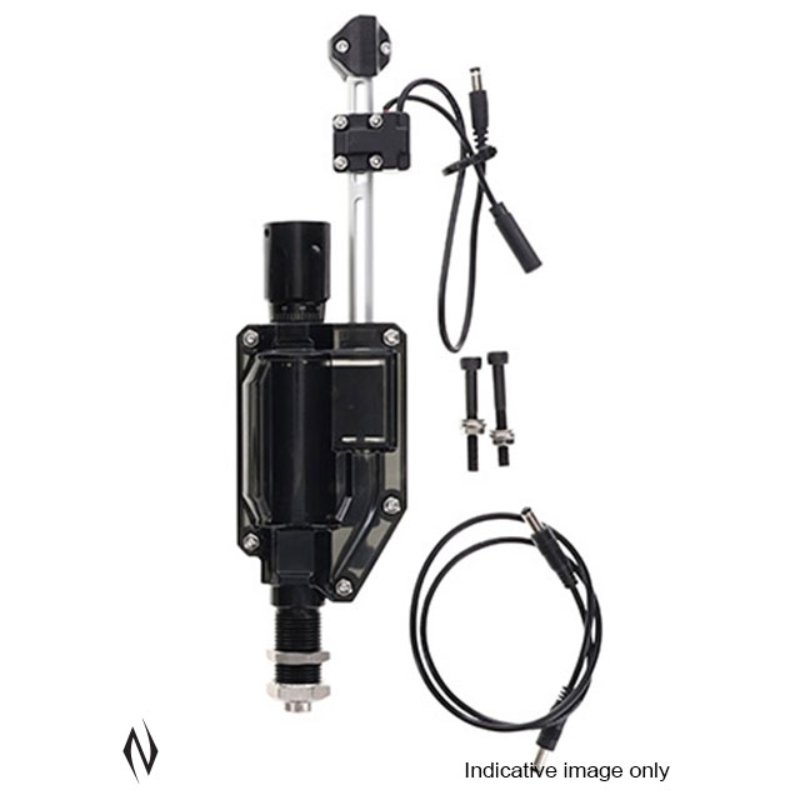

The Frankford Arsenal X-10 Progressive Press Rifle Bullet Feeder Caliber Conversion Kit – .264 / 6.5mm (FA-FX10CKR65) is a calibre-specific conversion kit designed to automate projectile delivery and bullet seating on the Frankford Arsenal X-10 progressive reloading press. Engineered exclusively for the proprietary X-10 toolhead system, this mechanical assembly combines bullet feeding and bullet seating into a single station, freeing an open station on the 10-station shellplate for auxiliary dies such as powder checks or dedicated crimp dies.

• Combined Feed and Seat Mechanism: Feeds and seats .264 calibre rifle projectiles in one toolhead position to optimize shellplate station utilization.
• Micrometer Seating Stem: Features integrated seating depth adjustments in precise 0.001" increments for consistent overall cartridge length.
• Integrated Feed Switch: Includes a built-in mechanical on/off shutoff switch on the die body to halt bullet delivery without clearing the collator feed tube.
• Passive Operation: Functions entirely via mechanical press indexing, requiring 0V/0W direct electrical input.

Specifications

• Product Model: FA-FX10CKR65 (SKU: 1194194)
• Calibre Compatibility: .264 caliber / 6.5mm rifle projectiles (e.g., 6.5 Creedmoor, 6.5 PRC, 6.5x55 Swedish, .260 Remington)
• Machine Compatibility: Frankford Arsenal X-10 Progressive Press (interfaces with the X-10 Rifle Bullet Collator)
• Adjustment Resolution: 0.001" increments
• Die Thread Interface: Proprietary Frankford Arsenal X-10 toolhead format
• Power Requirements: 0V / 0W (Passive mechanical system)

Who is the Frankford Arsenal X-10 Bullet Feeder Conversion Kit Rifle .264 / 6.5mm for?

• High-volume 6.5mm Precision Rifle Series competitors — who need automated feeding of .264 caliber (6.5mm) rifle projectiles combined with a micrometer-adjustable seating stem tunable in 0.001" increments to maintain tight cartridge base-to-ogive consistency during bulk match preparation.
• Reloaders loading 6.5 Creedmoor and 6.5 PRC ammunition on an X-10 press — who require a progressive press bullet feeder conversion kit that delivers automated projectile placement while saving a station on the 10-station shellplate for powder checkers or dedicated crimp dies.

Less suitable for: Reloaders operating standard 7/8"-14 threaded progressive presses or those loading non-6.5mm calibres such as .224, 6mm/.243, or .30 cal, who require standard 7/8"-14 threaded aftermarket bullet feeder dies or dedicated calibre-specific conversion kits.
