What calibre range and cartridge length limitations apply to the Frankford Arsenal FX-10?

The FX-10 is engineered to accommodate standard cartridge lengths ranging from compact pistol rounds like 9mm up to standard rifle calibres such as .308 Winchester and .30-06 Springfield. It features universal compatibility with standard 7/8"-14 threaded dies on its 10-station tool head. However, it cannot handle ultra-magnum cartridges longer than .30-06 Springfield, such as .338 Lapua Magnum or .50 BMG.

Does the included automatic case feeder work out of the box with Australian 240V power outlets?

The automatic case feeder and integrated LED lights operate via a 12V DC power adapter included in the standard factory packaging, which features a plug that is not natively AU-compatible. Australian buyers will need to use a localized 240V-to-12V power adapter or an appropriate plug converter to run the electrical case feeder safely on local mains power.

What is included with the Frankford Arsenal FX-10 Progressive Reloading Press, and do I need to purchase shell plates separately?

The packaged unit includes the 10-station progressive press, an automatic case feeder holding up to 500 pistol cases or 200 rifle cases, an integrated tool-head LED light, a roller handle, and spring-loaded case locator buttons. Please note that calibre-specific shell plates, such as the Frankford Arsenal #1 Shell Plate for .357 Magnum and .38 Special, as well as bullet feeder conversion kits like the 9mm or Rifle .30 kits, must be purchased separately.

Reloading Press - Frankford FA-FX10PRP

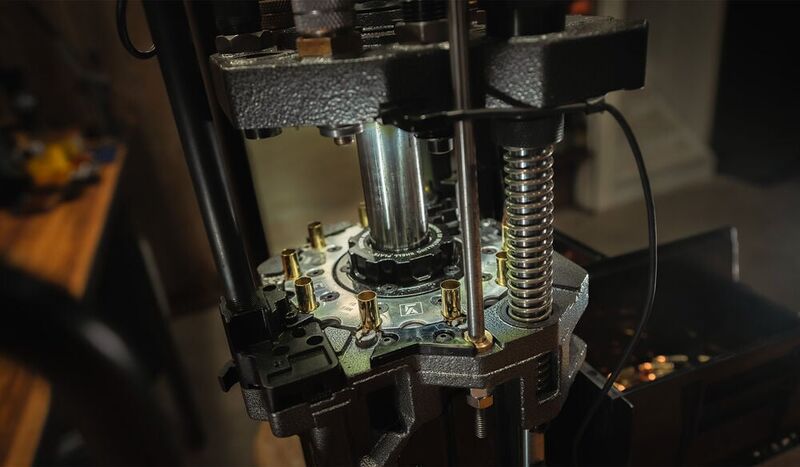

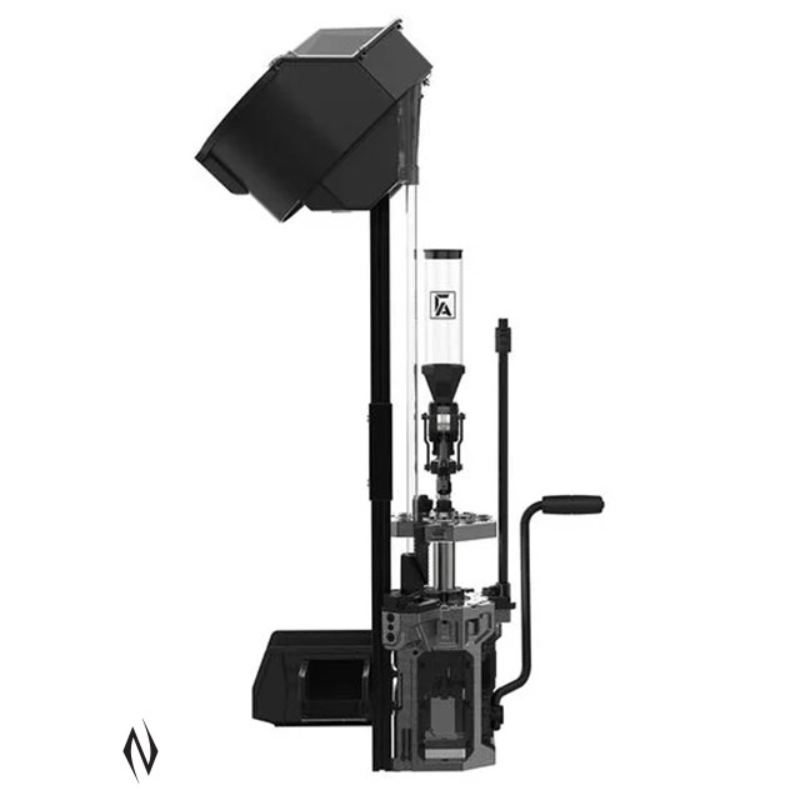

The Frankford Arsenal FX-10 Progressive Reloading Press + Case Feeder (MPN: FA-FX10PRP) is a high-throughput, automatic-indexing reloading system engineered for high-volume ammunition production. Featuring a robust 10-station tool head, this mechanical press allows users to perform multiple operations simultaneously, including dual de-capping, in-line primer pocket swaging, powder checking, and bullet seating. Driven by a smooth, gear-driven rotating shell plate supported by ball bearings, the press minimizes powder spillage and case wobble during operation. Power is delivered via a 12V DC adapter to operate the integrated LED lighting and the automatic on/off sensor-driven case feeder.

Key Features

10-Station Tool Head: Maximizes cartridge processing efficiency by supporting multiple consecutive operations, including primer pocket swaging for small and large primers.
Gear-Driven Shell Plate: Features ball-bearing indexing to ensure smooth rotation, preventing powder spillage and maintaining cartridge alignment.
Case-Actuated Powder Measure: Uses a positive manual reset mechanism to prevent stuck-measure squib loads.
High-Capacity Case Feeder: Equipped with an automatic on/off sensor, an integrated LED light, and a sound-reducing lid.
Australian Power Compatibility: Operating on a 12V DC adapter, the standard factory-supplied power plug is not natively compatible with Australian outlets. Australian users must utilize a standard 240V-to-12V power adapter or an AU plug converter to power the case feeder.

Product Specifications

Model Number (MPN): FA-FX10PRP (SKU: 1178469)
Thread Compatibility: Accepts standard 7/8"-14 threaded dies
Cartridge Range: From 9mm up to .30-06 Springfield
Case Feeder Capacity: Up to 500 pistol cases (e.g., 9mm) or 200 rifle cases (e.g., .223 Remington)
Packaged Weight: 95.2 lbs (43.18 kg)
Packaged Dimensions: 29.6 inches (L) x 17.6 inches (W) x 18.1 inches (H)
Installed Space Requirements: Requires approximately 30 inches (76.2 cm) of workbench width and 50 inches (127 cm) of vertical height clearance

Who is the Frankford Arsenal Fx-10 Progressive Reloading Press + Case Feeder for?

High-volume competitive shooters — processing bulk pistol ammunition, such as 9mm, who benefit from a 10-station progressive reloading press and a case feeder capable of holding up to 500 pistol cases at once to minimize loading cycle downtime.
High-volume rifle reloaders — processing military brass in .223 Remington or .308 Winchester, utilizing the built-in pocket swaging capability and a case feeder with a 200-round rifle case capacity to streamline brass prep and loading.

Less suitable for: reloaders processing magnum-length cartridges longer than .30-06 Springfield, such as .338 Lapua Magnum or .50 BMG, who are better served by a heavy-duty single-stage reloading press designed for oversized cases.

SKU	FF39314LP
Model #	FA-FX10PRP
Brand	Frankford
Shipping Weight	1.0000kg
