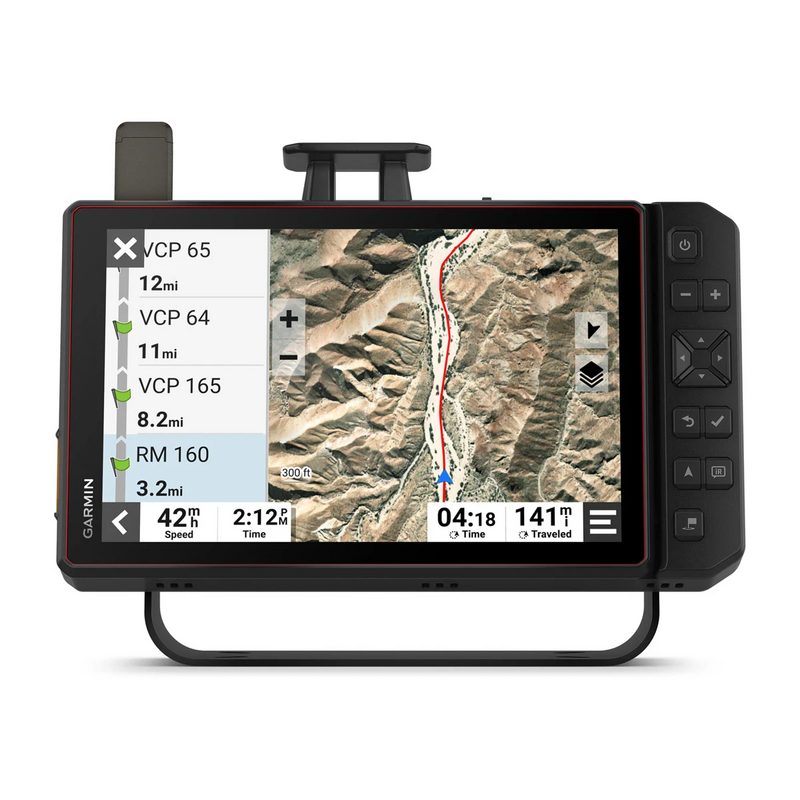

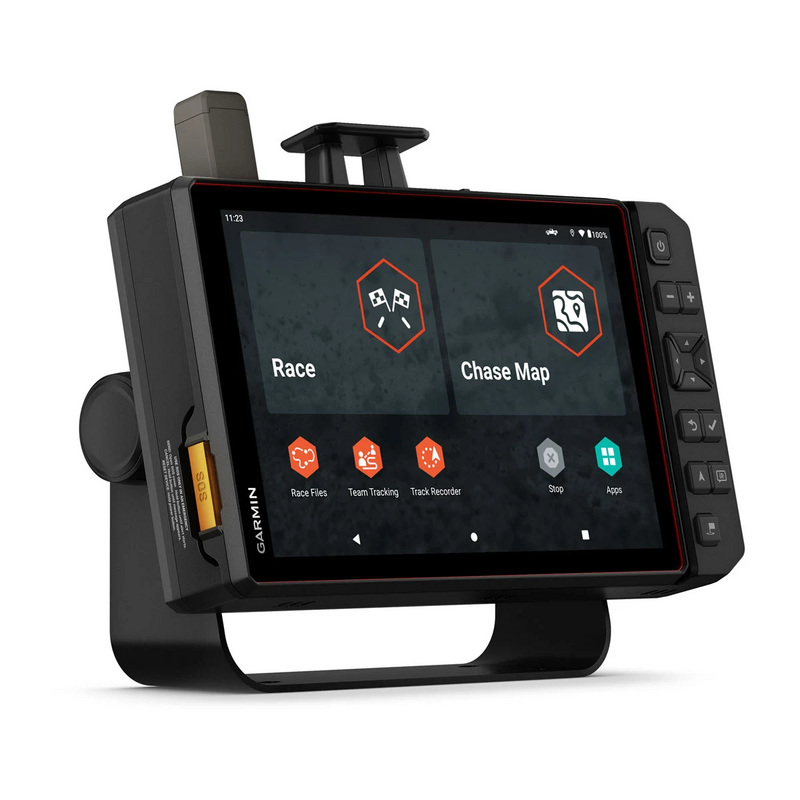

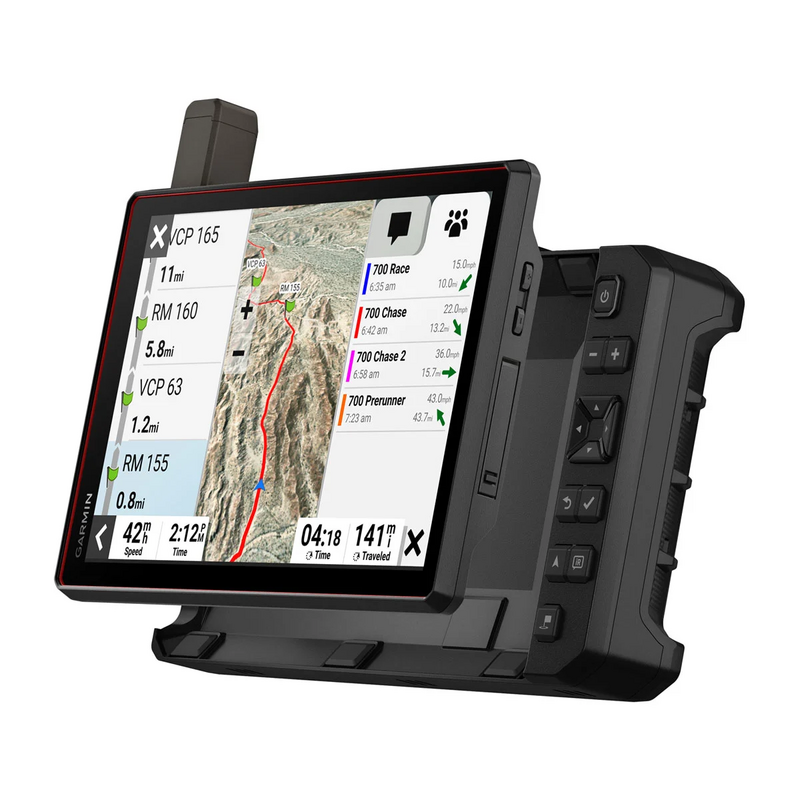

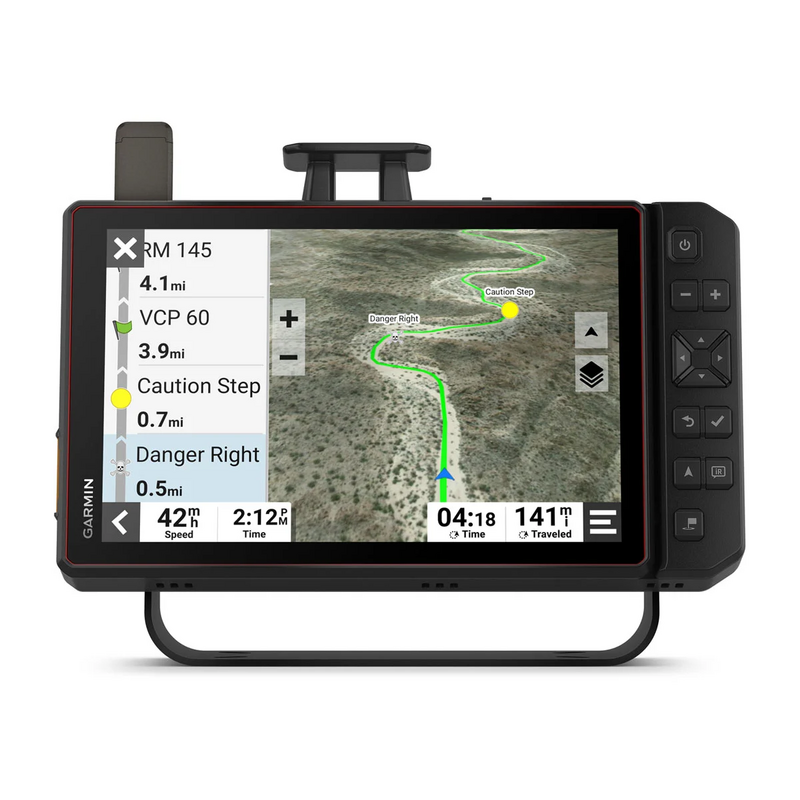

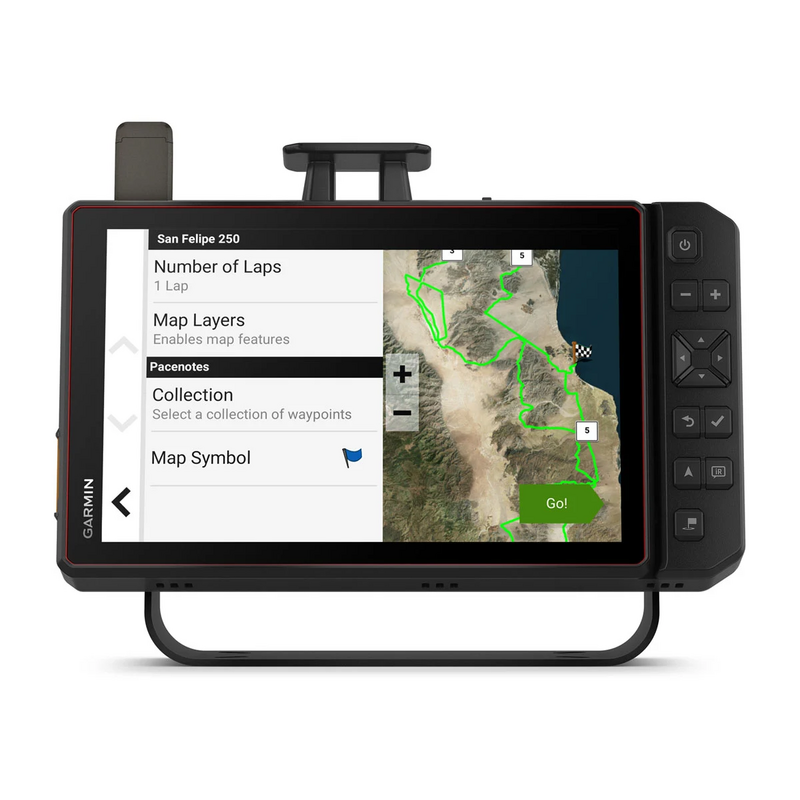

The Tread® XL - Baja Race Edition is engineered for the high-stakes world of Baja trophy truck racing, offering a robust 10” off-road race navigator that excels in extreme conditions. This rugged device features a high-resolution, ultrabright 10" touchscreen display, ensuring visibility in any lighting scenario. With its IP67 rating for dust and water resistance, and MIL-STD-810 drop rating, it is built to withstand the harshest environments. The integrated inReach® technology allows for seamless team tracking and communication, keeping race vehicles and chase trucks connected with live position updates.

This navigator supports GPX course files, letting you visualize race course elements such as start/end points, racetrack lines, and virtual checkpoints. It comes with essential prerunning tools for creating custom pace notes, enhancing navigation through critical race segments. The device can be securely mounted using the included bail mount or directly to the dashboard, and its track recorder helps drivers monitor performance and improve race times. The Tread® XL also supports external GPS and inReach® antennas, ensuring reliable connectivity in remote locations.

KEY FEATURES

Dimensions: 25.2 x 19.9 x 3.1 cm (9.9"W x 7.8"H x 1.2"D), device only; 29 x 19.3 x 6.4 cm (11.4"W x 7.6"H x 2.5"D), device and dock

Weight: 930 g (32.8 oz), device only; 1666.5 g (58.8 oz), device and dock

Water Rating: IPX7 (weather-resistant)

Display Type: Multi-touch, glass, high brightness HD color TFT with white backlight

Display Size: 21.7 cm x 13.6 cm (8.5"W x 5.3"H); 25.7 cm diagonal (10.1")

Display Resolution: 1280 x 800 pixels

Mounting Options: Bail mount, locking magnet-assisted mount, 1.5" ball adapter with AMPS plate

Drop Rating: MIL-STD-810

Dust Rating: IP6X

Battery Type: Rechargeable lithium-ion

Battery Life: Up to 6 hours at 50% backlight; Up to 1 hour at 100% backlight

Internal Storage: 128 GB

External Memory Storage: Supports up to 256 GB microSD™ card

Preloaded Maps: Yes, with High Definition 3D terrain

GPX File Compatibility: Yes

BirdsEye Direct Satellite Imagery: Yes

Sensors: GPS, Galileo, Barometric altimeter, Compass, 10 Hz multi-GNSS positioning

Navigation Features: Point-to-point navigation, Preloaded topographical maps, Navigate-a-track, Turn-by-turn trail navigation

Camera Features: Backup camera compatible (BC™ 50)

Advanced Features: Wi-Fi® map and software updates, Built-in inReach® Technology, Compatible with Garmin PowerSwitch™ digital switch box, Group Ride Tracker compatibility, Track recorder (breadcrumbs), iOverlander™ points of interest, Birdseye Satellite Imagery, Glove-friendly touchscreen

Included Accessories: Tread XL Baja Dock, Tread XL dock power cable, Bail mount, External inReach® antenna, External GPS antenna, High-current power cable, USB cable, Documentation
