Will the etched BDC reticle work for me if I have an astigmatism that causes standard red dots to starburst?

Yes, this prism sight is an ideal solution for shooters with astigmatism. Because the 5.56 BDC reticle is chemically etched directly into the glass prism, you will see a crisp, sharp aiming point even if you turn off the red illumination or if your battery runs out.

Does this optical sight require any Australian electrical compliance markings or SAA approvals?

No electrical compliance marks or SAA approvals are required. This product is an unpowered optical sight that operates entirely on an internal 3V CR2032 coin battery and does not connect to 240V mains power.

What is the maximum effective distance I can shoot using the 5.56 BDC reticle holdover marks?

The bullet drop compensating reticle is ballistically matched for 5.56 NATO and .223 Remington rounds out to approximately 600 yards (550 metres). If your shooting requirements regularly exceed 600 yards or involve precision benchrest disciplines, you may want to look at a higher-magnification alternative such as the Hawke 12058 Prism Sight 6x36.

How does the prism sight perform on closer targets, and is there a parallax adjustment dial?

The unit features a fixed parallax with target focus adjustable down to 15 yards via the ocular diopter. While optimal for mid-range engagements, targets placed closer than 10 to 15 yards will exhibit minor parallax error due to the fixed design.

What mounting options are included in the box for attaching this to my rifle rail?

The sight is supplied with a standard Weaver and Picatinny rail base system that includes two interchangeable mounts: a low-profile base and a higher lower-1/3 co-witness base. It also comes out of the box with a honeycomb killflash sunshade, flip-up lens caps, and a Torx tool for straightforward setup.

Prism Sight - Hawke 12054

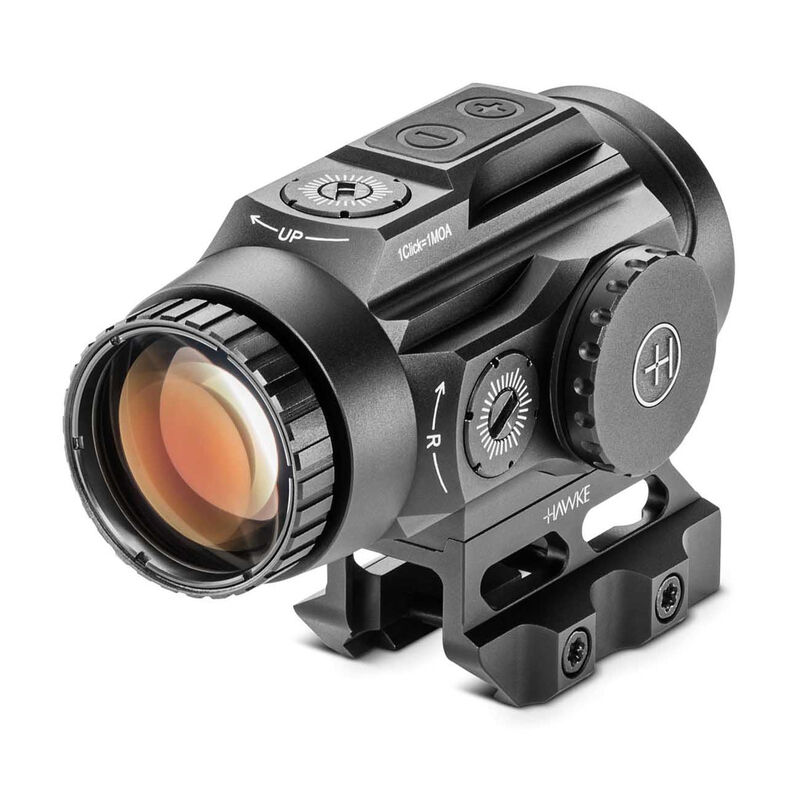

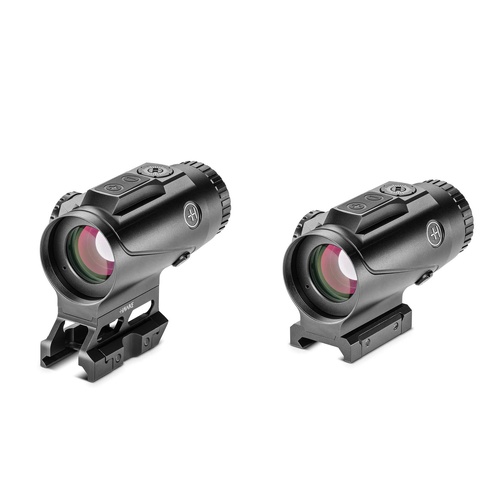

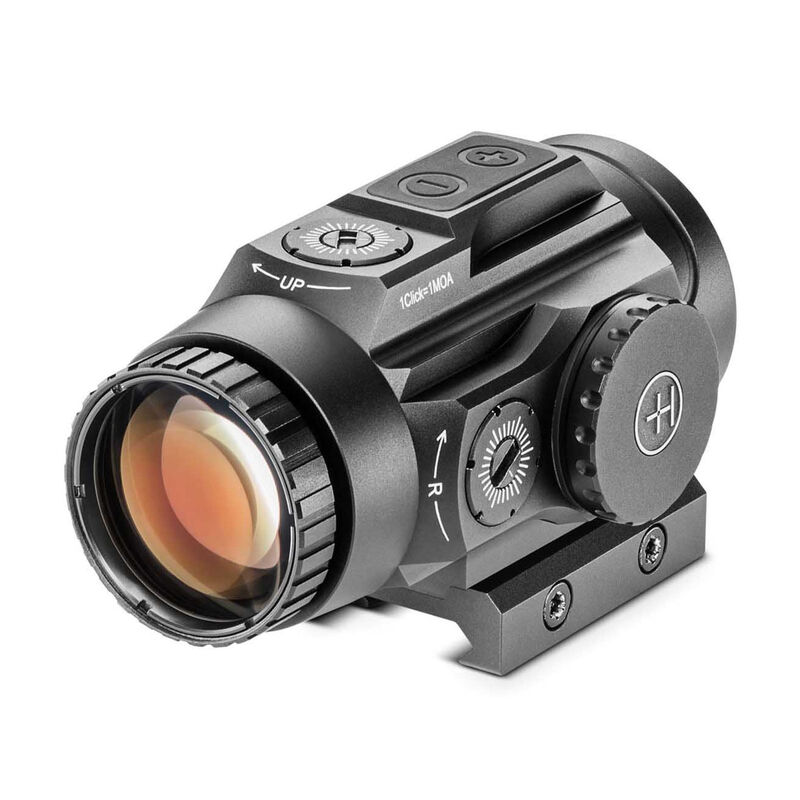

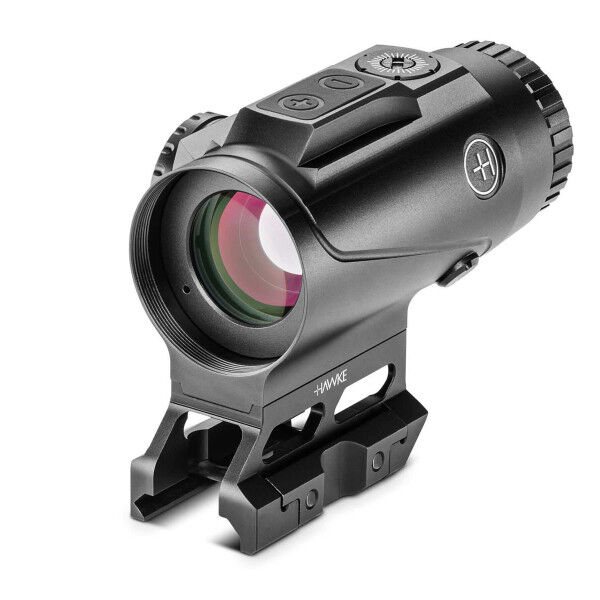

The Hawke Prism Sight 4x24 5.56 BDC Dot Weaver is a compact optical sight designed for mid-range target engagement on centerfire rifles, rimfires, and airguns. Featuring fixed 4x magnification with a 24 mm objective lens, it employs 25-layer fully multi-coated optics for clear target resolution and light transmission. The chemically etched-glass reticle features a central illuminated horseshoe dot and ballistic drop compensating ladder calibrated for 5.56 NATO and .223 Remington loads out to 600 yards. Powered by a single 3V CR2032 battery, the illumination offers 10 digital brightness stages (8 daylight, 2 night vision compatible), while the black etched reticle remains fully functional without battery power. Nitrogen-purged construction ensures waterproof and fog-proof performance.

Key Features

Prism Optical System: Etched-glass prism design prevents optical blooming or starburst effects for shooters with astigmatism.
Calibrated BDC Reticle: Red-illuminated 5.56 BDC Dot reticle provides holdover marks out to 600 yards (~550 metres).

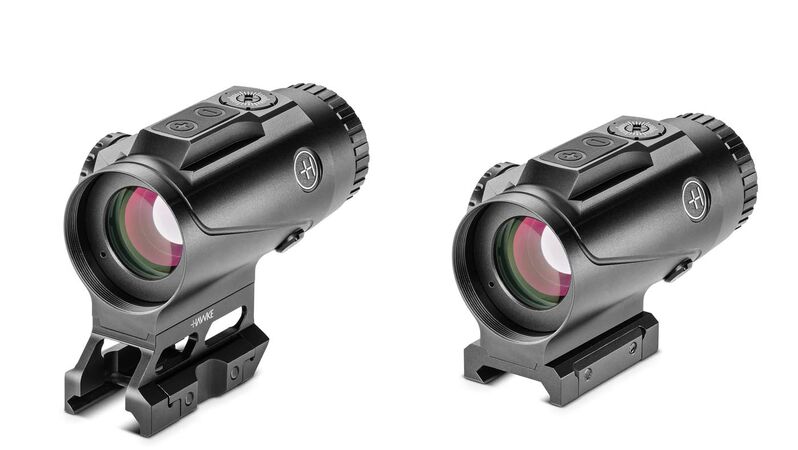

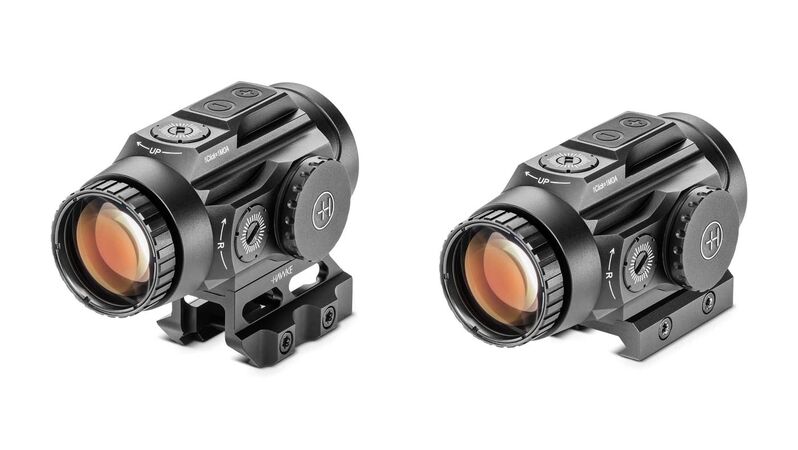

Dual Mounting Heights: Supplied with interchangeable low-profile and lower-1/3 co-witness Weaver/Picatinny rail mounts.
Precision Elevation and Windage: Turrets feature 1 MOA per click adjustment for precise zeroing.
Supplied Accessories: Includes a honeycomb killflash sunshade, lens caps, CR2032 battery, and Torx installation tool.

Specifications

Magnification: Fixed 4x
Objective Lens Diameter: 24 mm
Eye Relief: 72 mm (2.8 inches)
Click Value: 1 MOA per click

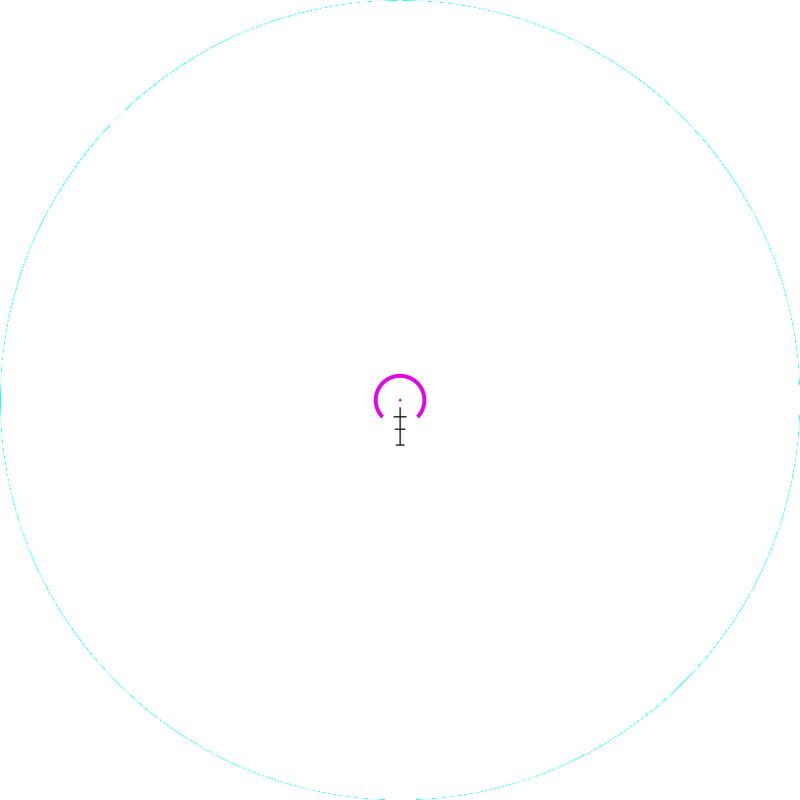

Reticle: 5.56 BDC Dot (Etched Glass, Red Illumination)
Illumination Settings: 10 stages (8 daylight, 2 night vision)
Power Supply: 1 x 3V CR2032 lithium coin battery

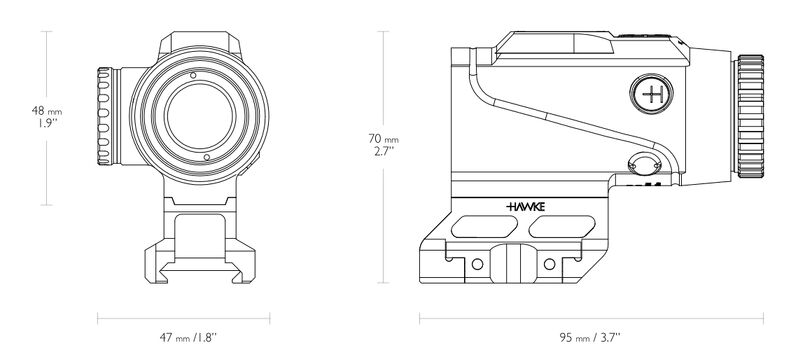

Dimensions: 84 mm (L) x 48 mm (W) x 71 mm (H)
Weight: 207 g to 221 g (7.3 to 7.8 oz)
Mounting: Weaver / Picatinny rail interface

Who is the Hawke Prism Sight 4x24 5.56 BDC Dot for?

Shooters with astigmatism — provides a chemically etched glass prism sight reticle that prevents the starbursting and blooming common in standard red dot sights, ensuring a crisp aiming point with 72 mm of eye relief.
5.56 NATO and .223 Remington rifle owners — features a calibrated ballistic drop reticle built into this 4x magnification prism sight that matches .223 Rem trajectories out to 600 yards without requiring manual elevation turret adjustments.
Carbine and airgun shooters running Picatinny rails — offers a compact 84 mm length and lightweight footprint of 207 g to 221 g, fitting tactical carbines, straight-pull rifles, and high-power PCP air rifles without adding excess bulk.

Less suitable for: Long-range precision shooting past 600 yards or close-quarters engagements inside 15 yards (where fixed parallax introduces minor error); shooters targeting these disciplines are better served by a high-magnification variable riflescope (such as a 4–16x with side parallax adjustment) or a non-magnified 1x red dot optic.

SKU	HWK39688LP
Model #	12054
Brand	Hawke
Shipping Weight	1.0000kg
