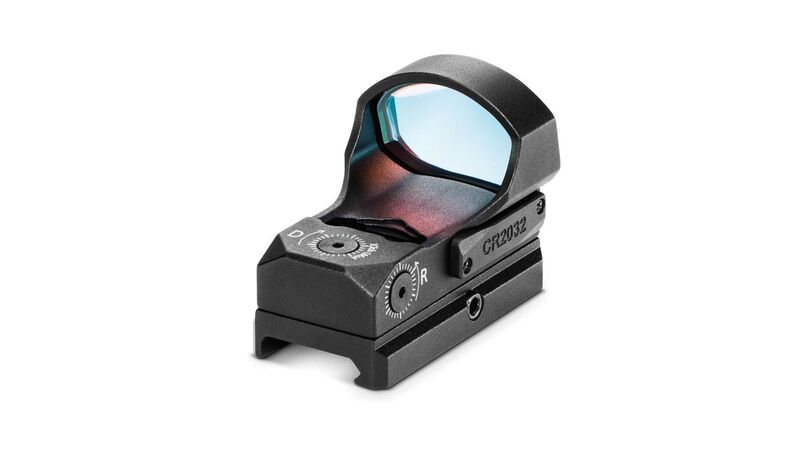

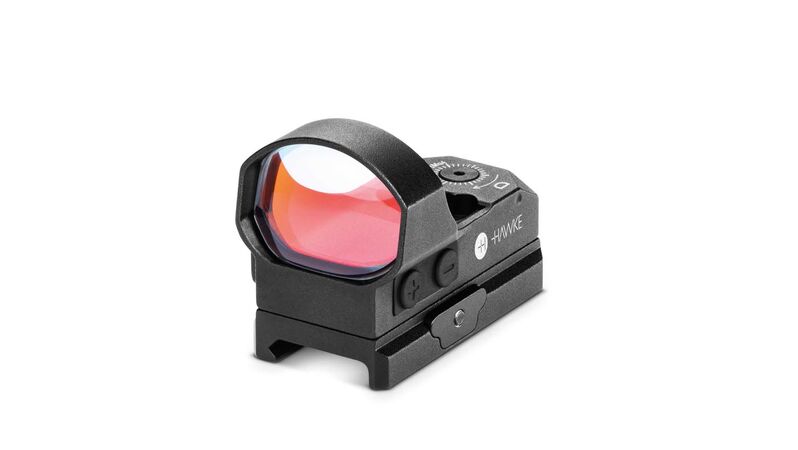

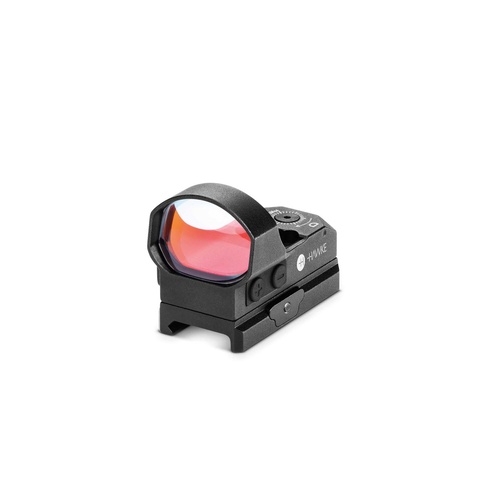

The Hawke Reflex Sight ‘Wide View’ Circle Dot (Model 12145) is an unmagnified 1x reflex optic engineered for fast target acquisition and wide situational awareness at close-to-medium ranges. Built with an oversized 34 mm objective window and 25-layer Fully Multi-Coated (FMC) optics, this sight provides a clear field of view for rapid framing. It features a versatile Circle Dot reticle—combining a 2 MOA central dot with a 35 MOA outer ring—powered by an 8-stage digital brightness system and motion-sensing Auto Illumination Mode (A.I.M.) with a 5-minute auto-standby function. Constructed from high-grade waterproof and shockproof aluminium, the unit weighs 85 g with its integrated Weaver/Picatinny mount and utilises a side-loading battery tray for convenient CR2032 replacement without losing zero.

Key Features

• Oversized Viewing Window: 34 mm Wide View objective lens with 25-layer Fully Multi-Coated optics for maximum clarity.
• Speed Reticle: Circle Dot configuration featuring a 2 MOA centre dot inside a 35 MOA ring for instant reticle centering.
• Digital Illumination: 8-stage red brightness control with motion-activated wake and 5-minute automatic standby.
• Zero-Retention Battery Access: Side-loading slide-out tray allows CR2032 coin-cell replacement without removing the sight from the rail.
• Durable Construction: Shockproof and waterproof aluminium housing with an integrated Weaver/Picatinny clamp base.

Specifications

• Model: 12145
• Magnification: 1x
• Objective Lens: 34 mm
• Reticle: Circle Dot (2 MOA Dot, 35 MOA Circle)
• Illumination: Red, 8 brightness stages
• Parallax: Parallax error-free from 9 m (10 yd) to infinity
• Click Value: 1 MOA per click
• Total Adjustment Range: 210 clicks

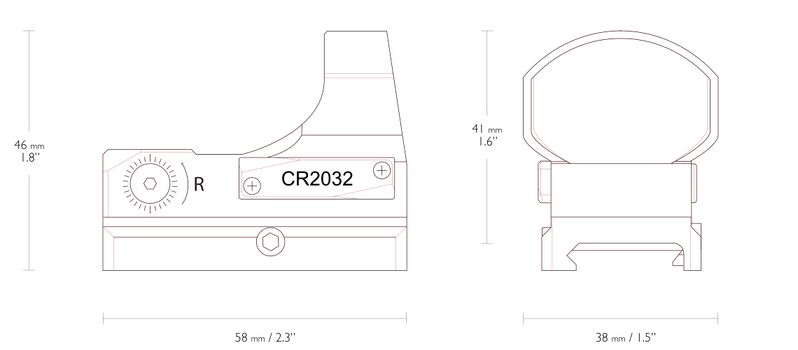

• Dimensions: 58 mm (L) × 38 mm (W) × 46 mm (H)
• Weight: 57 g (sight body) / 85 g (with mount)
• Battery Type: 1× CR2032 3V Lithium
• Mounting Interface: Weaver / Picatinny rail clamp

Who is the Hawke Reflex Sight ‘Wide View’ Circle Dot for?

• Driven game hunters — relies on the 2 MOA central red dot surrounded by a 35 MOA circle inside this reflex red dot sight to achieve immediate reticle alignment and rapid target tracking on running game.
• Pig and turkey shotgun hunters — benefits from the 34 mm Wide View objective window on this reflex sight, ensuring broad situational awareness and clear framing when shooting inside 9 metres to 100 metres.
• Sporting platform shooters — takes advantage of the compact 85 g total weight and integrated Weaver/Picatinny base to maintain low-profile handling across standard long-gun rails.

Less suitable for: Precision shooting beyond 100 m or identifying small targets at range, where a magnified riflescope (such as a 3–9x or 4–12x) or a dedicated red dot magnifier is better suited. It is also not directly compatible with micro pistol footprints without dedicated adapter plates.
