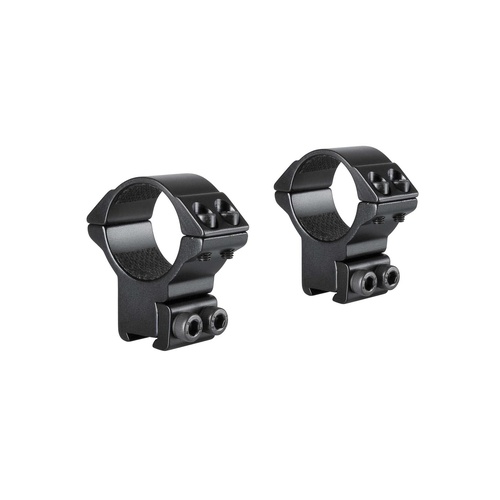

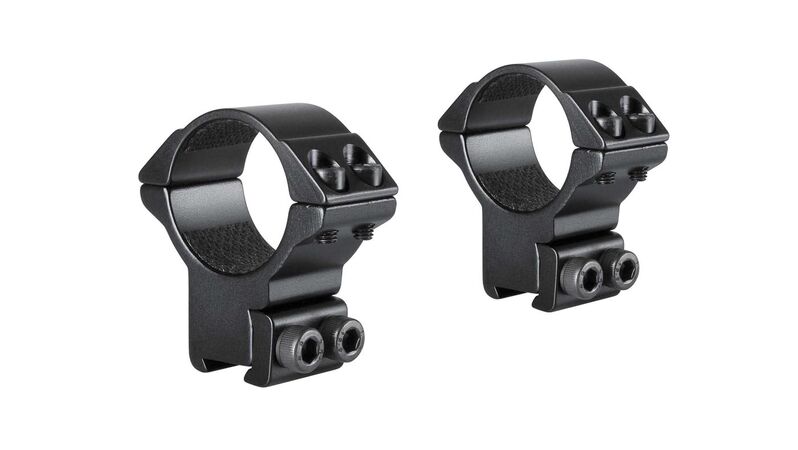

The Hawke Match Mount 30mm 2 Piece 9–11mm High (Model 22108) is a two-piece mounting system engineered to secure 30 mm maintube riflescopes onto standard 9–11 mm dovetail rails. Constructed from high-grade anodised aluminium in a matte black finish, this mount provides a total height of 50 mm (1.9 inches) to deliver barrel clearance for large-objective optics on rimfire rifles (.22 LR, .17 HMR, .22 WMR) and airgun platforms. Double hex screw fasteners ensure consistent clamping across the scope body, while a retractable recoil stop pin prevents mount creep under spring-piston or rimfire recoil.

Key Features

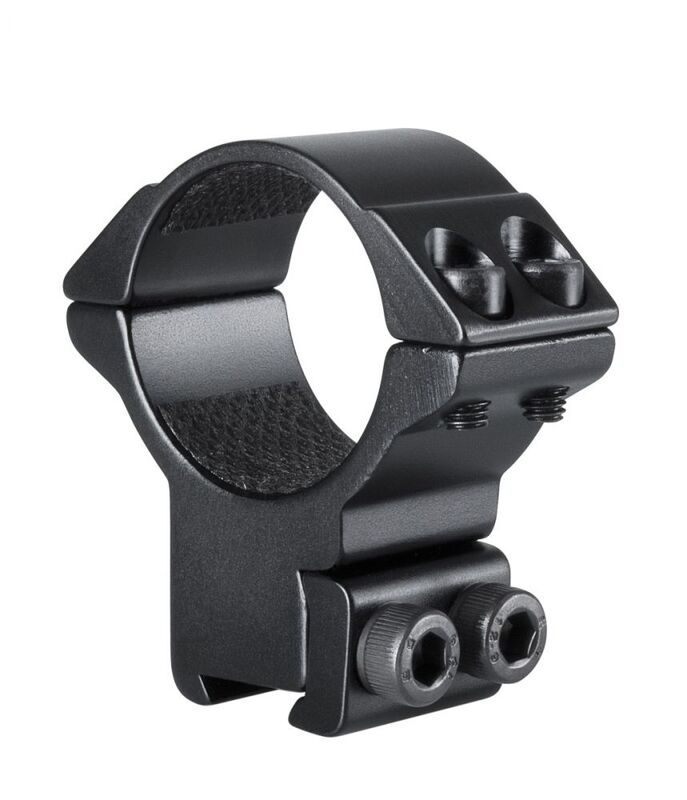

• Double Hex Screw Clamping: Uses dual hex screws on both the top caps and base rail clamps to maintain uniform retention without deforming the scope tube.
• Internal Cushion Tape: Features internal protective tape within the ring surfaces to prevent scope marring, scratches, and vibration-related damage.
• Retractable Recoil Stop Pin: Integrates a built-in stop pin designed to resist forward and rearward recoil forces along smooth dovetail tracks.
• Reversible Clamp Plate: Accommodates standard 9–11 mm airgun/rimfire dovetails as well as 3/8" rail interfaces.
• Rounded Edges: Machined with radiused outer profiles to eliminate snag hazards and reduce the risk of optic damage during installation.

Product Specifications

• Scope Tube Diameter: 30 mm
• Rail Interface: 9–11 mm Dovetail (and 3/8")

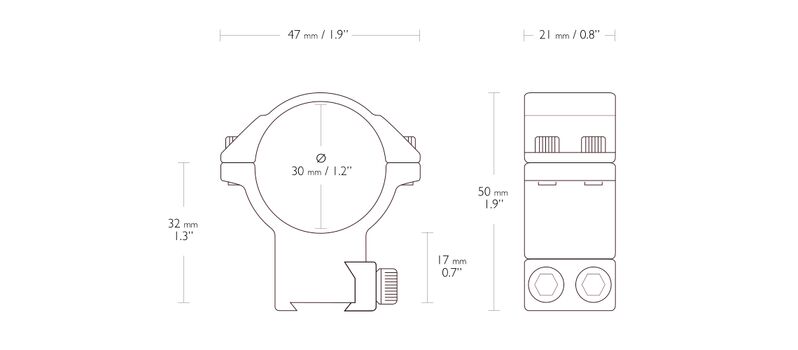

• Profile Height: High profile (50 mm / 1.9 in total height; ~35.5 mm / 1.4 in center-line height)
• Weight: 102 g (3.6 oz) for the set
• Material & Finish: High-grade anodised aluminium, matte black
• Hardware Configuration: Double hex cap screws, double hex base screws, retractable recoil stop pin
• Objective Bell Clearance: Accommodates up to 50 mm to 56 mm objective lenses (dependent on rifle and barrel profile)

Who is the Hawke Match Mount 30mm High for?

• Rimfire target and pest control shooters — requires a 2-piece dovetail scope ring that clamps to 9–11 mm factory receiver rails to mount 30 mm scopes over heavy or varmint barrel profiles using a 50 mm total mount height.
• Airgunners mounting large-objective 30mm scopes — requires a 102 g dual-screw 2-piece dovetail scope ring with an integrated recoil stop pin and internal cushion tape to prevent optic slippage on 9–11 mm spring-piston and PCP rails.

Less suitable for: Firearms equipped with standard MIL-STD-1913 Picatinny or Weaver rail bases, which require dedicated Weaver/Picatinny scope rings; setups using smaller 32 mm to 40 mm objective scopes where a medium-profile mount is better suited for a lower cheek weld; or extreme long-range shooting requiring base-level elevation compensation, which requires an adjustable elevation-compensating mount.
