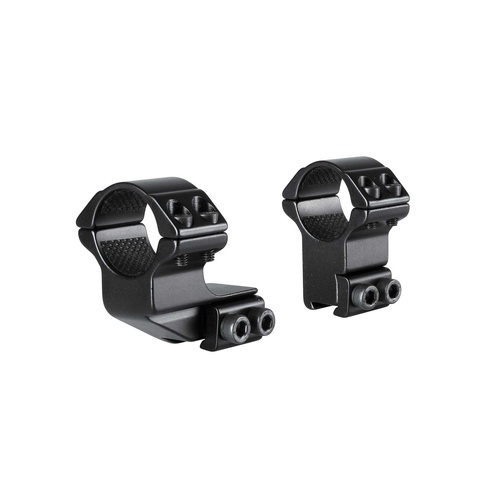

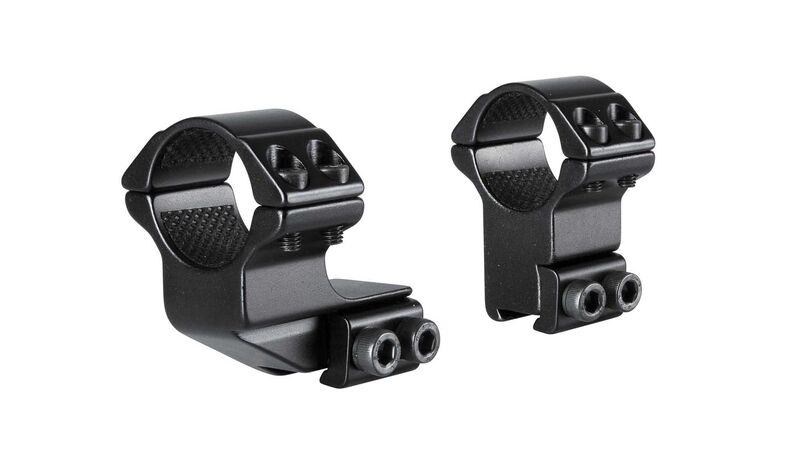

The Hawke Match Mount Reach Forward (Model 22120) is a precision 2-piece mounting system designed to secure 1-inch (25.4 mm) riflescopes to rifles with 9–11 mm dovetail grooved receivers. Featuring a cantilevered extension ring alongside a standard ring, this mounting setup provides a 1-inch (25.4 mm) forward or rearward offset. This allows shooters to achieve proper eye relief and optimal optical alignment on rifle actions with restricted mounting surface areas. Built from high-grade aluminium with a matte black anodised finish, the mount combines a high-profile stance with double hex screw clamping to maintain optical zero under recoil.

Key Features

• 1" Extension Reach: Offsets the scope by 1 inch (25.4 mm) to position the optic further forward or rearward, accommodating awkward action geometries and maintaining correct eye relief.
• High-Profile Height: Provides approximately 51 mm of total height to offer necessary barrel and receiver clearance for riflescopes with large 50 mm+ objective lenses or side focus parallax turrets.
• Internal Cushion Tape: Protective internal lining prevents scope tube scoring and marring while dampening vibrational transfer to the optic.
• Recoil Stop Pin: Features a built-in, retractable recoil pin that anchors directly into receiver recesses to prevent forward or backward scope movement on spring-piston airguns and rimfire platforms.
• Dual-Screw Fastening: Employs double 3 mm hex screws on the ring caps and double 4 mm hex clamping screws on the rail base for secure clamping force.

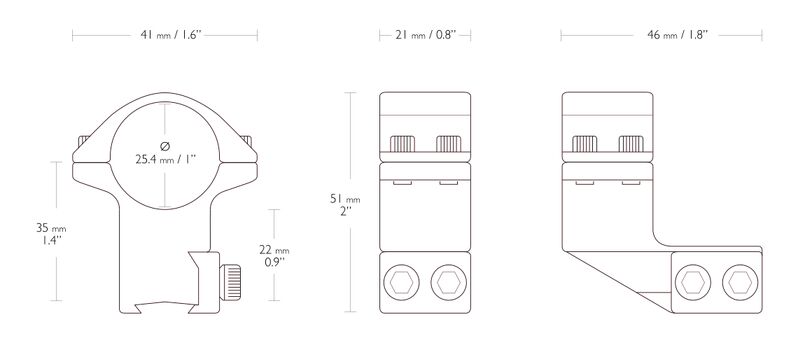

Specifications

• Scope Tube Diameter: 1 inch (25.4 mm)
• Rail Interface: 9–11 mm Dovetail (reversible clamp accommodates 3/8" rails)
• Mount Type: 2-Piece Ring Set (1 standard ring, 1 reach-forward extension ring)
• Height Profile: High (approx. 51 mm overall height)
• Offset Reach: 1 inch (25.4 mm)
• Construction: High-grade CNC-machined aluminium
• Finish: Matte black anodised
• Weight: 85–102 g

Who is the Hawke Reach Forward Mount 9–11mm 1" High for?

• Air rifle shooters — requiring eye relief correction on break-barrel or PCP platforms, where the 1-inch extension ring of this dovetail mount bridges receiver gaps and the integrated recoil stop pin resists spring-piston recoil.
• Rimfire hunters — securing optics to rifles with 9–11 mm grooved receivers, where the 1-inch (25.4 mm) ring diameter and high-profile clearance accommodate scopes with large objective bells without contacting the barrel.

Less suitable for: Rifles featuring Weaver or Picatinny bases, or scopes built on 30 mm or 34 mm main tubes. These setups require dedicated Weaver/Picatinny scope rings or larger-diameter 30 mm/34 mm dovetail mounts.
