Are these ring caps compatible with my existing 30mm Hawke tactical scope rings?

No, the Hawke 22153 is strictly designed for 1-inch (25.4 mm) scope maintubes. If you are running 30mm scope tubes, you will need to look at the Hawke 22154 model instead.

What is the correct torque specification for tightening these ring cap screws to avoid damaging my scope?

Hawke specifies that the cap screws should be torqued precisely to 16 in-lbs (1.8 Nm). Exceeding this torque threshold risks crushing or damaging your scope tube body or stripping the fastener threads.

Can I mount a secondary reflex sight and a tactical torch simultaneously with this set?

Each individual Hawke 22153 cap features a 3-slot Picatinny rail section, so if you purchase a set, you replace both front and rear caps to provide mounting platforms. They are ideal for co-mounting a secondary red dot like the Hawke Frontier 1x24 or an auxiliary hunting illuminator directly above your primary optic.

Do these ring caps require any electrical compliance or SAA certifications for use in Australia?

No, the Hawke 22153 is a fully mechanical, unpowered firearm mounting accessory and does not contain any electrical circuits. Therefore, 240V mains power compatibility, SAA approvals, and RCM electrical regulatory certifications are not applicable for this product.

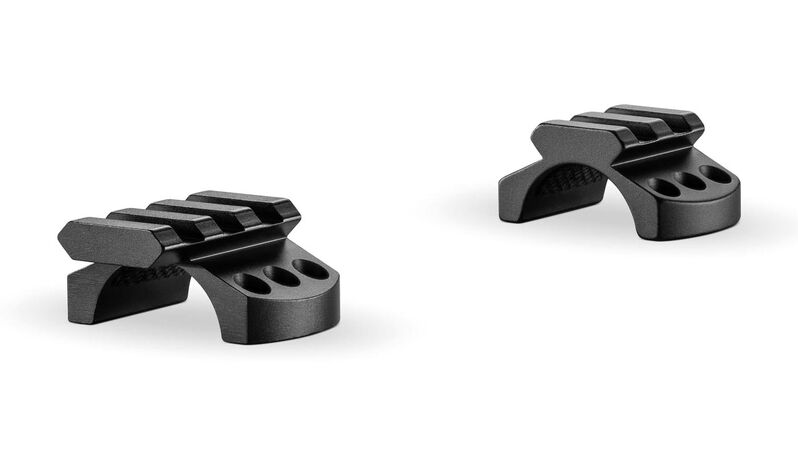

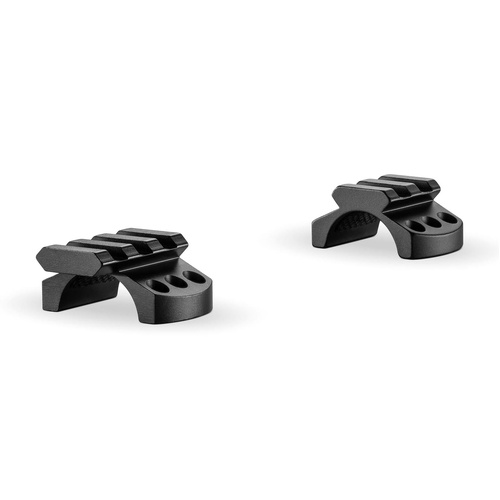

Picatinny Ring Cap - Hawke 22153

The Hawke 22153 Picatinny Ring Cap Set is an unpowered, passive mounting accessory that replaces standard factory top caps on Hawke 1-inch triple-screw tactical scope ring mounts. Precision-machined from high-grade aluminium with a matte black anodised finish, each ring cap integrates a 3-slot Picatinny rail section directly above the scope centerline. This architecture allows shooters to mount auxiliary hardware—such as secondary reflex red dot optics, hunting torches, or target illuminators—without requiring separate cantilever or receiver-mounted offset bases. To preserve the integrity of the mounted optic, each cap includes internal cushion tape that prevents scope body scratching, marring, or crushing under clamping force.

Key Features

Direct Cap Replacement: Replaces the standard top cap on compatible Hawke Tactical and Match mounts to provide an integrated 3-slot Picatinny top rail.
Heavy-Duty Clamping Interface: Retains a 6-screw configuration (triple Torx T15 screws per side, 6-32 thread size) for recoil resistance across rimfire and heavy centre-fire platforms.
Optic Surface Protection: Features internal cushioning tape to protect 1-inch aluminium scope tubes from cosmetic wear and structural damage.

Specifications

Product Model: Hawke 22153
Maintube Diameter: 1 inch (25.4 mm)
Top Accessory Interface: 3-slot Picatinny rail
Fastener Configuration: Triple screw per side (6-32 thread size, Torx T15 fixings)
Recommended Fastener Torque: 16 in-lbs (1.8 Nm / 1.33 ft-lbs)
Material: High-grade anodised aluminium
Finish: Matte black

Who is the Hawke 1" Triple Screw Picatinny Ring Cap for?

Centre-fire hunters mounting secondary red dot sights — adds a 3-slot Picatinny rail section over a 1-inch (25.4 mm) maintube scope to support secondary micro red dot sights for close-range target acquisition, maintaining structural stability when secured to the factory torque limit of 16 in-lbs (1.8 Nm).
Pest control shooters attaching tactical illumination devices — enables direct top-mounting of auxiliary hunting torches or infrared designators onto 1-inch (25.4 mm) tactical rifle setups using a robust triple-screw Picatinny scope ring cap configuration that secures accessories without shifting optical zero under high-recoil field use.

Less suitable for: Rifle systems equipped with 30mm or 34mm maintube optics, or setups utilizing Hawke double-screw mounts; these platforms require larger-diameter 30mm/34mm tactical ring caps or dual-screw specific mounting hardware to match the ring geometry and maintain proper thread alignment.

SKU	HWK39765LP
Model #	22153
Brand	Hawke
Shipping Weight	1.0000kg
