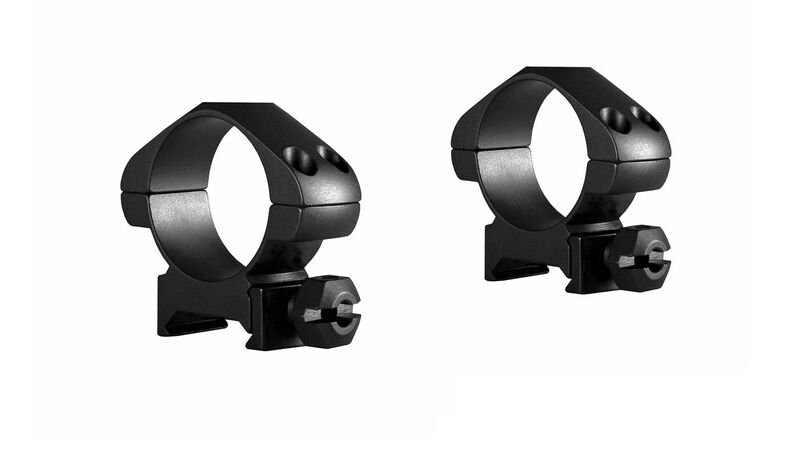

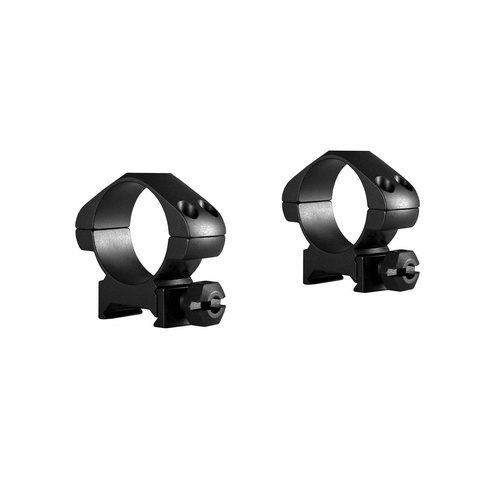

The Hawke Precision Steel Ring Mounts (Model 23006) provide a heavy-duty, two-piece mounting interface designed to secure 30 mm riflescopes to Weaver and MIL-STD-1913 Picatinny rails. Constructed from solid high-grade steel and weighing 158 g for the complete set, these medium-profile rings deliver maximum structural rigidity, zero retention, and recoil resistance for demanding shooting applications. The system utilises double Torx top-cap screws on each ring to distribute clamping force evenly across the scope tube, paired with a heavy-duty threaded rail clamp tightened via a standard hex nut for high-torque base attachment.

Key Features

• Solid Steel Construction: Machined from solid high-grade steel to resist extreme recoil forces and maintain optical zero better than standard aluminium alloy alternatives.
• Hex Nut Rail Clamping: Threaded rail cross-bolts secure to standard Weaver and Picatinny rails with a hex nut, allowing positive torque application using standard workshop or field tools.
• Double Torx Cap Fasteners: Two Torx screws per side (four per ring) evenly distribute clamping pressure around the 30 mm maintube to prevent scope crushing or internal optical distortion.

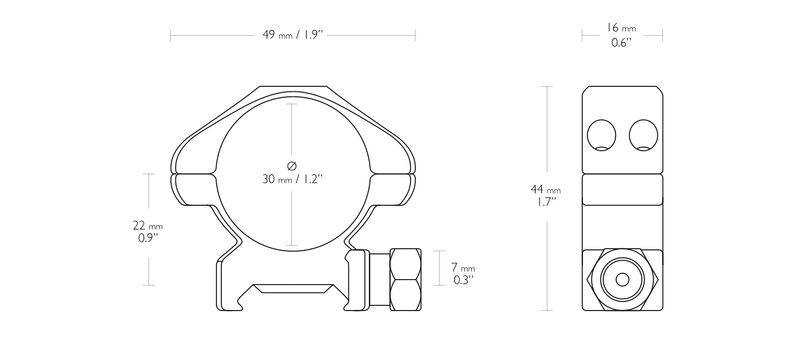

• Medium Profile Clearance: Provides an overall height of 44 mm, designed to accommodate standard barrel contours and optical objective bells up to 50 mm.

Product Specifications

• Scope Tube Diameter: 30 mm (1.2 in)
• Mount Type: 2-Piece Ring Set
• Height Profile: Medium (44 mm / 1.7 in total height)
• Total Weight: 158 g (5.6 oz)
• Material: Solid high-grade steel
• Rail Interface: Weaver and MIL-STD-1913 Picatinny
• Fasteners: Double Torx top-cap screws and hex nut base cross-bolts

Who is the Hawke Precision Steel 30mm Medium Ring Mount for?

• Centrefire hunting rifle shooters — Requires solid steel construction weighing 158 g across the pair to maintain point of impact and optical zero through rough transport and field handling.
• Heavy-recoil calibre rifle owners — Uses high-torque hex nut rail clamps and double Torx top-cap screws per ring to prevent 30 mm scope tube slippage under the intense recoil of large magnum calibres.
• Precision target shooters — Provides a consistent 44 mm total height medium profile that aligns 30 mm maintube target optics closely to the bore axis on standard Picatinny bases for stable cheek weld.

Less suitable for: Rifles featuring integrated 9–11mm or 3/8-inch rimfire and airgun dovetails (which require dovetail-specific ring mounts or rail conversion adapters), or riflescopes with objective lenses exceeding roughly 50 mm diameter (which require high-profile ring mounts to ensure adequate barrel clearance).
