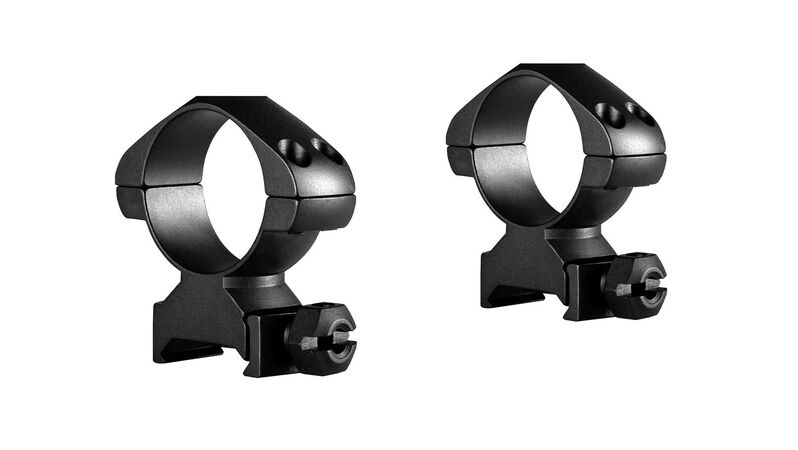

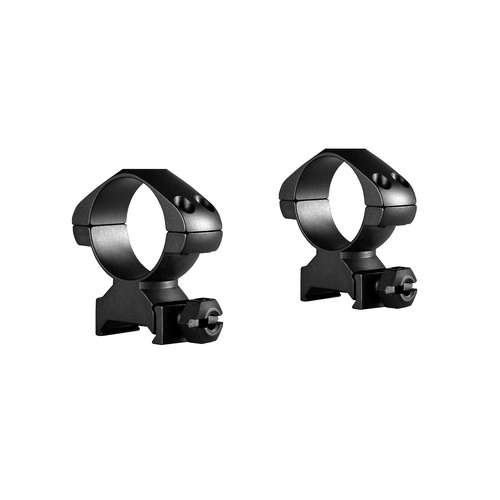

The Hawke Precision Steel Ring Mounts (MPN 23007) are heavy-duty, 2-piece mounting rings designed to secure 30mm main-tube rifle scopes to standard Weaver and MIL-STD-1913 Picatinny rails. Manufactured from solid steel with a matte black finish, these rings provide high tensile strength and structural rigidity to prevent zero-shift under heavy recoil. Featuring a High profile height, double Torx ring screws, and a steel hex nut base clamp, they ensure consistent clamping force for large-objective optics across hunting and tactical rifle platforms.

Key Features

• Solid Steel Construction: Machined from high-strength steel to resist flex and maintain optic zero under heavy recoil calibres and magnum loads.
• Hex Nut Base Fastener: Employs a heavy-duty steel hex nut interface that enables high-torque clamping directly to Picatinny and Weaver rails using standard tools.
• Dual Torx Screws: Features double Torx head screws per ring to provide balanced clamping pressure around the optic tube while reducing the risk of screw stripping.
• High Profile Clearance: Designed to provide barrel and action clearance for optics equipped with large objective lenses, including 50mm and 56mm models.

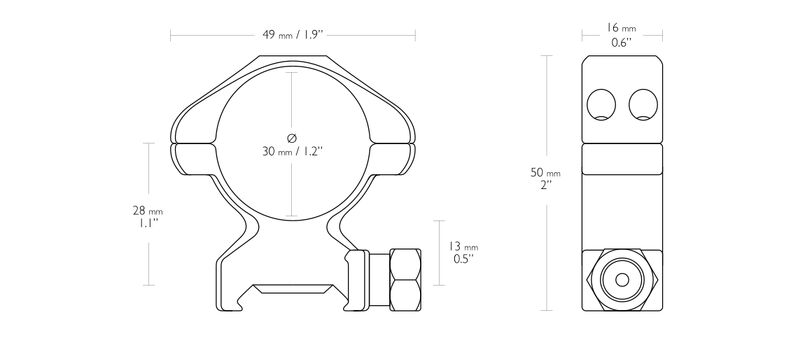

Specifications

• Model Number (MPN): 23007
• Optic Tube Diameter: 30 mm
• Profile Height: High
• Mount Configuration: 2-Piece Ring Mount
• Rail Interface Compatibility: Weaver and MIL-STD-1913 Picatinny rails
• Material: Solid steel
• Finish: Matte black
• Fasteners: Double Torx ring screws with steel hex nut rail clamps

Who is the Hawke Precision Steel 30mm High Ring Mount for?

• Hunters using magnum centerfire rifles — requires high-tensile solid steel construction to secure a 30 mm main-tube rifle scope against the heavy recoil generated by large-calibre rifles fitted with Picatinny or Weaver bases.
• Long-range and low-light shooters with large-objective optics — utilizes a 2-piece High profile height to ensure necessary clearance over the rifle barrel when mounting rifle scopes with 50mm to 56mm objective lenses.

Less suitable for: Rifle scopes with 1-inch (25.4mm), 34mm, or 35mm main tubes, which require ring sets matched to their specific tube diameters, or rimfire and air rifles with 9–11mm dovetail receivers, which require dedicated dovetail-specific steel ring mounts or rail conversion adapters.
