Will the Hawke Steel 34mm Low rings fit on my standard rimfire dovetail rail?

No, these rings are designed exclusively to fit Weaver and MIL-STD-1913 Picatinny rails. They are not compatible with 9-11 mm or 3/8-inch airgun and rimfire dovetail rails unless you use an appropriate adapter base.

Are these low-profile steel rings suitable for handling heavy centre-fire recoil in the outback?

Yes, built from solid steel with double Torx top screws and a robust quick-release lever system, the Hawke 23030 rings weigh 212 g and are specifically engineered to maintain zero and withstand the heavy recoil of big-game centre-fire rifles in demanding field conditions.

What objective lens size can I clear with the Low profile 53 mm total height?

The Low profile features an overall height of 2.1 inches or 53 mm, making it ideal for scopes with smaller to moderate main tube and objective configurations. If you are mounting optics with objectives larger than 56 mm on heavy-contour or bull barrels, you may require the Medium or High profile models to prevent barrel contact.

Do these mounting rings require any electrical compliance or SAA/RCM certification for Australian use?

No electrical compliance or SAA/RCM certification is required. The Hawke 23030 is a purely mechanical passive firearm accessory containing no electronic components and requiring no mains power.

34mm Scope Mounts - Hawke 23030

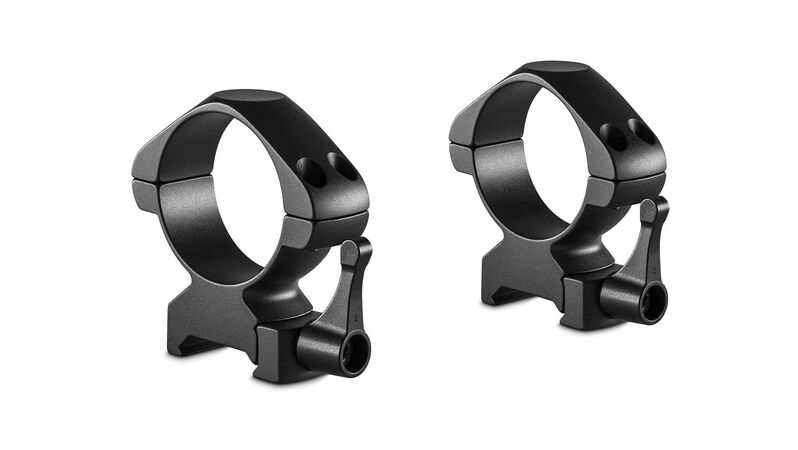

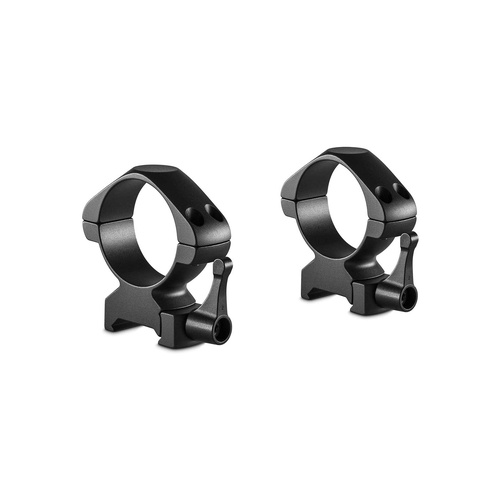

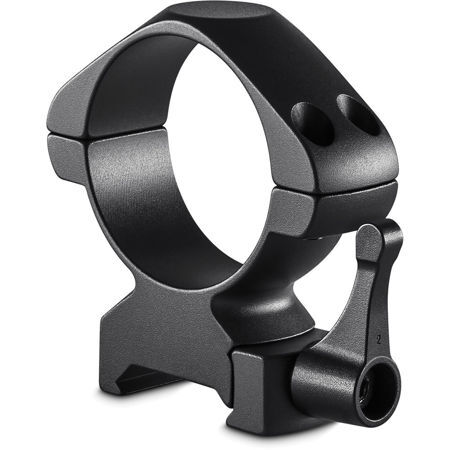

The Hawke Precision Steel Ring Mounts 34mm 2 Piece Weaver Low – Lever (Model 23030) provide a solid steel mounting solution designed to secure 34 mm rifle scopes to Weaver and MIL-STD-1913 Picatinny rails. Engineered for high-recoil centre-fire rifles, this two-piece mounting system features integrated quick-release clamping levers for tool-free installation and removal, combined with dual T15 Torx cap screws per ring for maximum clamping security and zero retention.

Key Features

Solid Steel Construction: Machined from solid steel with a matte black finish to withstand heavy recoil from magnum centre-fire calibres without zero shift.
Quick-Release Levers: Integrated rail levers allow rapid mounting, removal, and optic swapping on Weaver and Picatinny rails without requiring tools.
Low-Profile Design: An overall height of 53 mm (2.1 in) keeps large 34 mm optics aligned close to the bore for consistent cheek weld.
Double Torx Ring Caps: Dual T15 Torx screws (6-48 thread) on each ring cap provide uniform, high-strength clamping pressure across the 34 mm optic tube.

Specifications

Ring Diameter: 34 mm

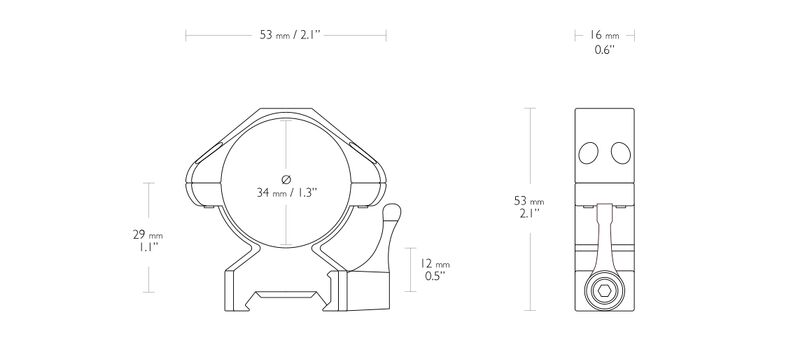

Height Profile: Low (Overall height: 53 mm / 2.1 in)
Configuration: 2-piece ring set
Weight: 212 g / 7.5 oz
Material & Finish: Solid steel, matte black
Rail Compatibility: Weaver and MIL-STD-1913 Picatinny rails
Cap Fasteners: Double Torx screws per cap (T15 head, 6-48 thread)
Base Fasteners: Quick-release lever clamp (8-32 thread)

Who is the Hawke Steel 34mm Low With Lever for?

Long-range precision shooters — mounts 34 mm maintube optics at a low overall height of 53 mm (2.1 in) to minimise height-over-bore and preserve optimal cheek alignment on precision rifle chassis.
Big-game hunters running high-recoil rifles — delivers 212 g (7.5 oz) of solid steel clamping mass with dual Torx cap screws to maintain zero under heavy magnum centre-fire recoil while enabling rapid removal via quick-release levers.

Less suitable for: Firearm setups with 9–11 mm or 3/8-inch airgun/rimfire dovetail rails (which require dovetail-to-Picatinny adapter bases) or optics with objective lenses larger than 56 mm on heavy-contour or bull barrels, which require medium-profile or high-profile scope rings to prevent the objective bell from contacting the barrel.

SKU	HWK39788LP
Model #	23030
Brand	Hawke
Shipping Weight	1.0000kg
