Will these rings fit my CZ rimfire rifle or standard Australian airgun dovetail rails?

Yes, the Hawke Tactical Model 24101 is specifically engineered to fit standard 9-11mm and 3/8-inch dovetail rails commonly found on Australian rimfire and air rifle platforms like CZ, Tikka, and Weirhauch. If your firearm uses a wider Picatinny or Weaver rail instead, you will need a dedicated Weaver mount variant such as the MPN 24104.

What objective lens size can I clear with the Medium 43mm height on these rings?

The medium profile provides an overall height of 43mm (1.7 inches), which is designed to comfortably clear scopes with objective lenses up to 40mm or 44mm depending on your barrel contour. If you are mounting a larger scope with a 50mm or 56mm objective bell, you will generally need to step up to High or Extra High rings to prevent barrel contact.

How do these rings handle the harsh two-way recoil of spring-piston air rifles?

These rings are built to withstand heavy recoil through a built-in retractable recoil stop pin that securely engages receiver holes to prevent shifting during firing. Additionally, each ring uses a triple Torx T15 top screw configuration and double Torx rail clamps to maintain uniform clamping pressure and keep your 1-inch optics locked firmly in place under intense bush-hunting conditions.

Do I need any special tools or care to set up these mounts in the field?

Setup requires a T15 Torx driver to properly tighten the triple top screws and double rail clamps without stripping the fasteners. The rings also feature factory-fitted internal cushion tape to protect your riflescope body tube from scratches and eliminate friction wear while preventing scope slippage during extended outdoor use.

Dovetail Ring Mounts - Hawke 24101

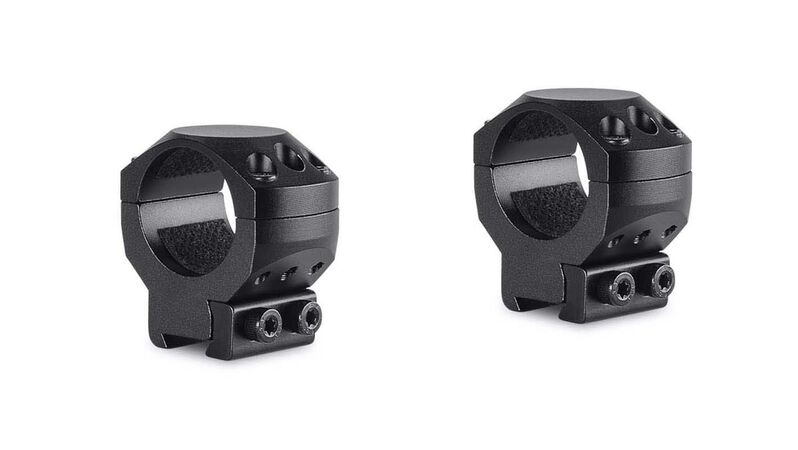

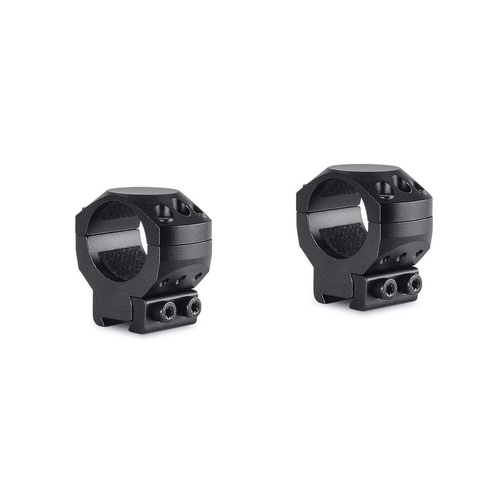

The Hawke Tactical Ring Mounts 1" 2 Piece 9–11mm Medium (MPN: 24101) provide a rigid mounting interface for attaching 1-inch riflescopes to rimfire rifles and airguns equipped with 9–11mm or 3/8" dovetail rails. Constructed from high-grade aluminium with a matte black anodised finish, this 2-piece set features a triple-screw cap design and an integrated retractable recoil stop pin to prevent scope movement and maintain zero under harsh two-way spring-piston or rimfire recoil.

Key Features

Triple-Screw Ring Caps: Uses three T15 Torx screws per cap side (six top screws per ring) for high, even clamping pressure across the optic tube.
Internal Cushion Tape: Factory-installed internal tape cushions the riflescope body tube, preventing surface marring and optical slippage.
Retractable Recoil Stop Pin: Engages receiver stop holes to counteract forward and backward recoil forces on spring-piston airguns and rimfire platforms.
Accessory Cap Compatibility: Accepts optional Hawke 1" Triple-Screw Picatinny Ring Caps for attaching secondary red dot sights or hunting torches.
Dual Clamping Base: Employs double T15 Torx base screws per ring for reliable mechanical attachment to 9–11mm dovetails.

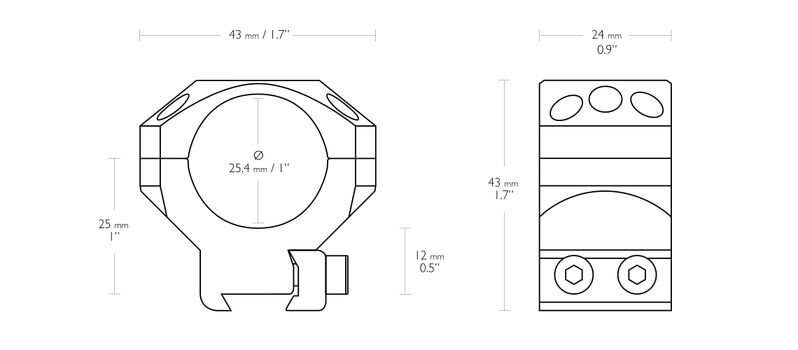

Product Specifications

Tube Diameter: 1 inch (25.4 mm)
Mount Profile: Medium
Overall Height: 43 mm (1.7″)
Total Weight: 120 g (4.2 oz)
Rail Compatibility: 9–11mm Dovetail (and 3/8" dovetail grooved receivers)
Mount Configuration: 2-piece ring set
Fasteners: T15 Torx (6-32 thread cap screws, M4x0.7 base screws)
Material: Anodised high-grade aluminium

Who is the Hawke Tactical 9-11mm 1" Medium Mount for?

Rimfire Pest-Control Shooters — Needs a secure 9–11mm dovetail riflescope mount that adds only 120 g of weight while securing a 1-inch optic against field vibration on .22 LR, .17 HMR, or .22 WMR hunting rifles.
Air Rifle Hunters and Target Shooters — Requires an overall height of 43 mm to clear standard 40–44 mm objective lenses on spring-piston or PCP air rifles while utilizing a built-in recoil stop pin to stop bi-directional recoil shift.

Less suitable for: Firearms with standard 20–22mm Picatinny or Weaver rail systems (requires dedicated Weaver/Picatinny tactical mounts), scopes with 30mm or 34mm main tubes (requires 30mm or 34mm rings), or optics with large 50mm to 56mm objective lenses requiring High or Extra High profile mounts to avoid barrel contact.

SKU	HWK39792LP
Model #	24101
Brand	Hawke
Shipping Weight	1.0000kg
