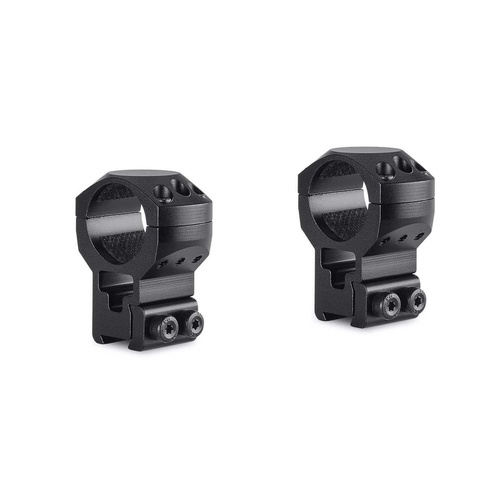

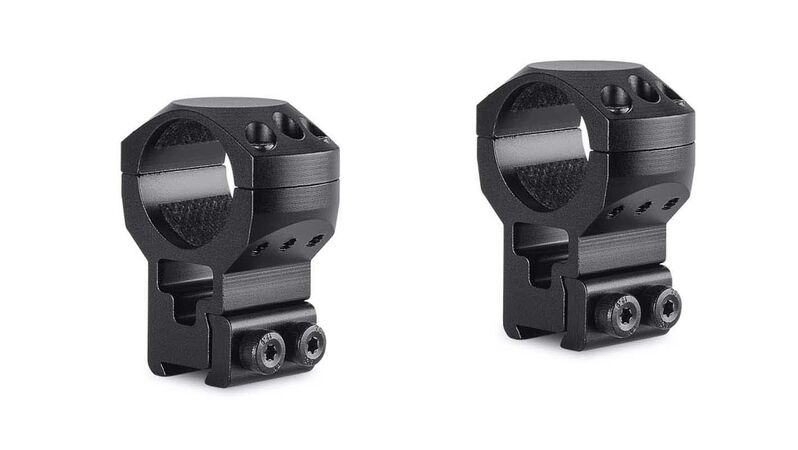

The Hawke Tactical 9–11mm 1" Extra High ring mounts (Model 24103) are two-piece optical mounting rings designed to secure 1-inch (25.4 mm) riflescope tubes to standard 9–11mm (3/8") dovetail receiver rails. Engineered with a total profile height of 54 mm (2.1"), these CNC-machined aluminium mounts provide maximum elevation clearance to accommodate riflescopes with large 50mm to 56mm objective lenses, adjustable objective (AO) bells, or tall iron sights on rimfire and airgun platforms.

Key Features

• Triple Torx Screw Ring Caps: Features three Torx cap screws per side (six per ring) to provide high, even clamping pressure that prevents optic slippage.
• Internal Cushion Tape: Factory-installed internal lining prevents scope tube scratching and eliminates ring marks during installation and use.
• Retractable Recoil Stop Pin: Built-in mechanical stop pin arrests longitudinal forward and rearward ring movement caused by high-recoil spring-piston air rifles and rimfire platforms.
• Reversible Base Clamping Plate: Adapts securely to both 9–11mm European airgun dovetails and standard 3/8" rimfire receiver rails.
• Double Base Screws: Dual-screw base mount configuration maintains a rigid lock to the dovetail rail surface.

Technical Specifications

• Main Tube Diameter: 1 inch (25.4 mm)
• Rail Compatibility: 9–11 mm (3/8") Dovetail

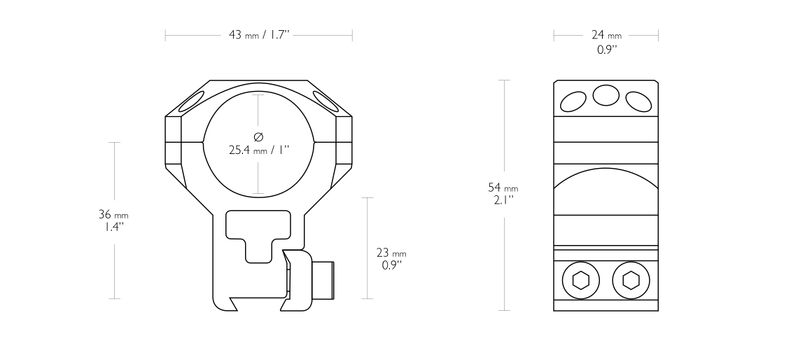

• Height Profile: Extra High (Total height: 54 mm / 2.1")
• Weight: 132 g / 4.7 oz (pair)
• Configuration: 2-piece ring set
• Material: CNC-machined high-grade aluminium
• Finish: Matte black anodised
• Fasteners: Triple Torx top cap screws, double base screws

Who is the Hawke Tactical 9–11mm 1" Extra High for?

• Rimfire small-game hunters — provides 54 mm (2.1") of total height to ensure adequate barrel clearance when mounting 1-inch scopes with large 50mm to 56mm objective lenses onto 9–11mm dovetail receivers.
• Air rifle target shooters — uses a 54 mm (2.1") extra-high profile to clear raised factory iron sights and elevate 1-inch optics for a comfortable upright head position on airgun stocks.
• Spring-piston and PCP airgun owners — integrates a built-in retractable recoil stop pin and 6-screw cap design weighing 132 g (4.7 oz) per pair to prevent scope slippage caused by bi-directional spring-piston recoil impulses.

Less suitable for: Firearms equipped with standard 20–22 mm Weaver or MIL-STD-1913 Picatinny rails (which require a Weaver-pattern mounting ring), or riflescopes constructed with 30mm or 34mm main tubes (which require 30mm or 34mm specific ring mounts).
