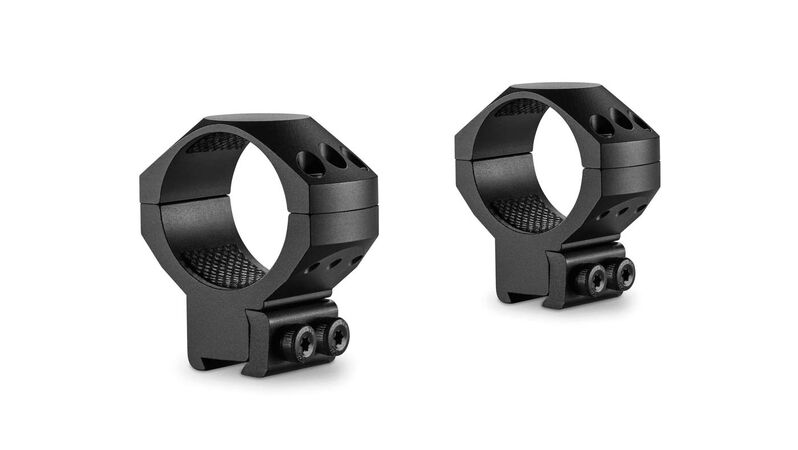

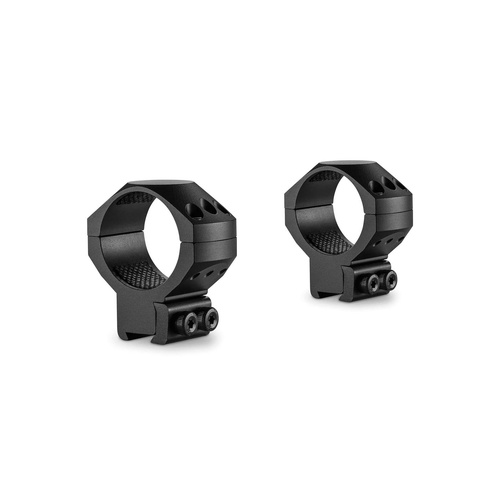

The Hawke Tactical Ring Mounts 34mm 2 Piece 9–11mm Medium (Model 24109) are two-piece mounting rings engineered to secure 34 mm main-tube riflescopes onto standard dovetail rail systems. Constructed from high-grade aluminium with a matte black anodised finish, these rings provide a sturdy, non-marring optical platform for precision shooting setups. The medium-profile design has a total height of 54 mm (2.1 in) and a total weight of 148 g (5.2 oz), providing balanced barrel clearance on compatible receivers.

Key Features

• Triple Torx Top Caps: Secured via three T15 Torx screws per ring strap (6-32 thread) to evenly distribute clamping force across 34 mm tubes without stripping hardware.
• Internal Cushion Tape: Factory-installed internal padding prevents cosmetic scratching, tube scoring, and crimping under firm tension.
• Reversible Dovetail Clamp: Reversible side plate clamps securely onto both European 9–11 mm dovetails and American 3/8-inch receiver rails using dual base screws (M5x0.8 thread).
• Integrated Recoil Stop Pin: Built-in retractable, threaded recoil pin prevents scope migration caused by the bidirectional recoil of high-vibration systems.

Specifications

• Ring Diameter: 34 mm

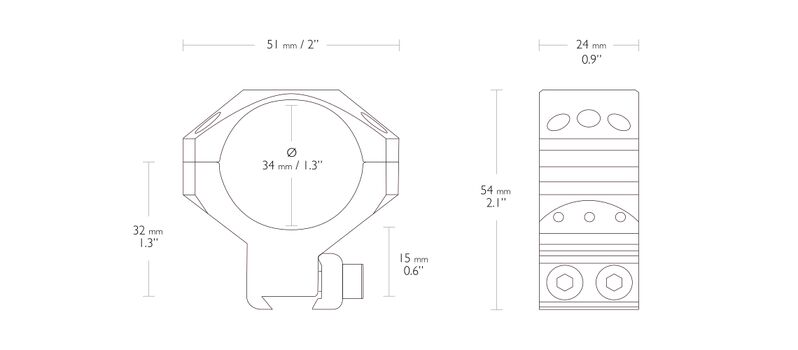

• Profile Height: Medium — 54 mm (2.1 in) total height
• Rail Fitment: 9–11 mm and 3/8-inch Dovetail
• Weight: 148 g (5.2 oz)
• Top Fasteners: Triple Torx T15 screws per ring
• Base Fasteners: Double Torx T15 screws per ring
• Material: Anodised high-grade aluminium

Who is the Hawke Tactical Ring Mount 9-11mm Medium for?

• Rimfire rifle shooters — provides a dedicated 34 mm dovetail scope ring that fastens high-end, 34 mm main-tube tactical scopes directly onto 9–11 mm or 3/8-inch receiver dovetails with a low-mass weight of 148 g.
• Air rifle marksmen — secures heavy 34 mm optical systems against bidirectional recoil on spring-piston or PCP platforms using an integrated recoil pin and a 54 mm total height medium profile.

Less suitable for: Firearm platforms equipped with cross-slot MIL-STD-1913 Picatinny or Weaver bases, scopes with smaller 1-inch or 30 mm main tubes, or optics featuring large 56 mm or larger objective bells that require a high-profile ring mount or a dedicated Picatinny base system for proper clearance.
