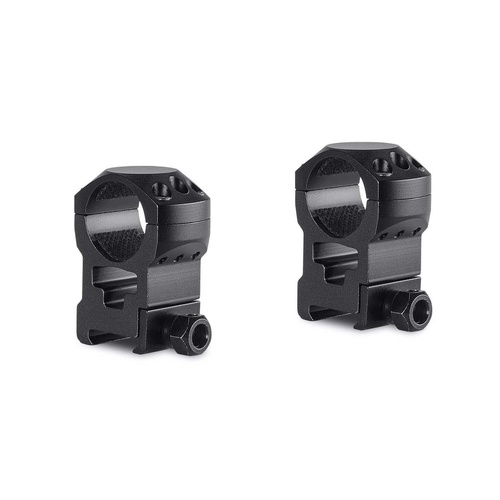

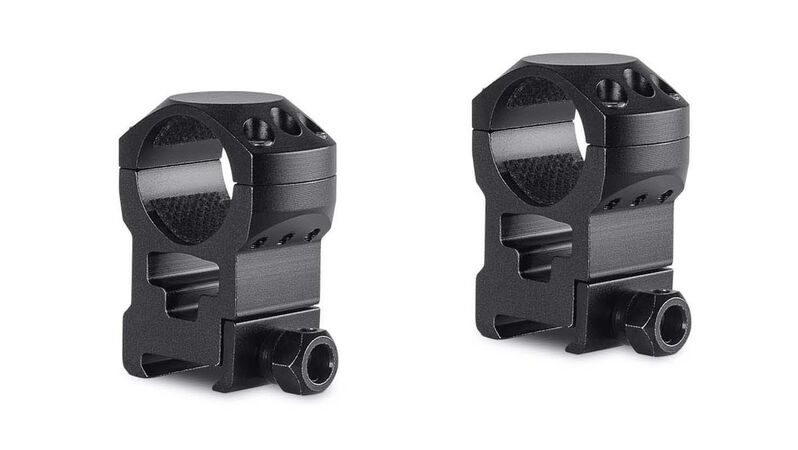

The Hawke Tactical Ring Mounts 1" 2 Piece Weaver Extra High (Model 24113) provide a high-clearance mounting solution for 1-inch (25.4 mm) maintube riflescopes on Weaver and MIL-STD-1913 Picatinny rails. Built from high-grade anodised aluminium with a matte black finish, this two-piece set weighs 154 g (5.4 oz) and stands at an overall height of 56 mm (2.2 in). The design utilizes triple Torx (T15) screws on each side of the top cap—six screws per ring—paired with double 1/2-inch hex nut rail clamps to maintain optic stability under heavy centrefire and high-energy spring-piston recoil. Internal cushion tape lines each ring to protect optic tubes against crimping and surface damage.

Key Features

• Triple Torx Clamping: Six T15 Torx screws per ring deliver even clamping pressure across 1-inch optic tubes.
• Internal Cushion Tape: Integrated internal synthetic tape prevents scope movement and protects aluminium maintubes from scratches or pinching.
• Dual Hex Nut Rail Clamps: Double 1/2-inch nut clamps with integrated crossbars anchor firmly into Weaver and Picatinny rail slots.

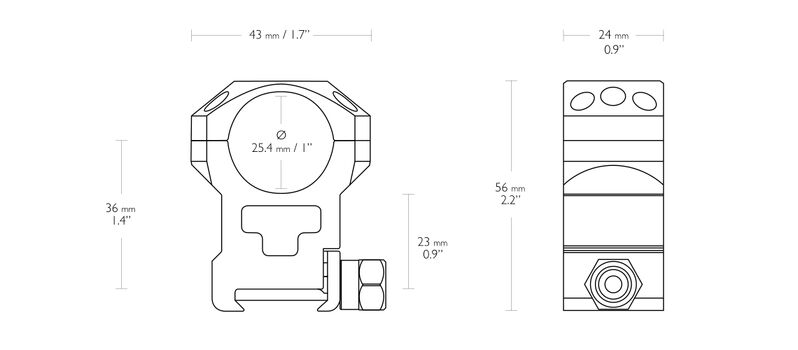

• Extra High Profile: Measures 56 mm (2.2 in) in total height to accommodate large objective lenses and raised rifle actions.

Product Specifications

• Optic Tube Diameter: 1 inch (25.4 mm)
• Height Profile: Extra High (56 mm / 2.2 in overall height)
• Weight: 154 g (5.4 oz) for the complete two-piece set
• Material: High-grade anodised aluminium
• Mount Interface: Weaver and MIL-STD-1913 Picatinny rails
• Hardware: T15 Torx top cap screws (6-32 thread), 1/2" hex nut rail fixings (M5x0.8 thread)

Who is the Hawke Tactical Weaver 1" Extra High for?

• Hunters running large-objective scopes — requires the 56 mm overall height of these 1-inch extra high scope rings to provide physical barrel clearance for 50 mm to 56 mm objective bells.
• Target shooters using heavy bull barrels — utilizes the 56 mm height profile of this 1-inch extra high scope ring set to prevent wide-profile, straight-taper bull barrels from making contact with the optic housing.
• Long-range rifle shooters — benefits from the 154 g heavy-duty aluminium construction and six-screw clamping system to keep 25.4 mm maintubes locked against heavy kinetic recoil.

Less suitable for: Optics with 30 mm or 34 mm maintubes (which require 30 mm or 34 mm tactical rings), airguns or rimfires with traditional 9–11 mm dovetail rails (which require dovetail-specific mounts), or compact scopes with objective lenses under 50 mm mounted on flat receivers where a lower cheek weld is required (which require low- or medium-profile scope rings).
