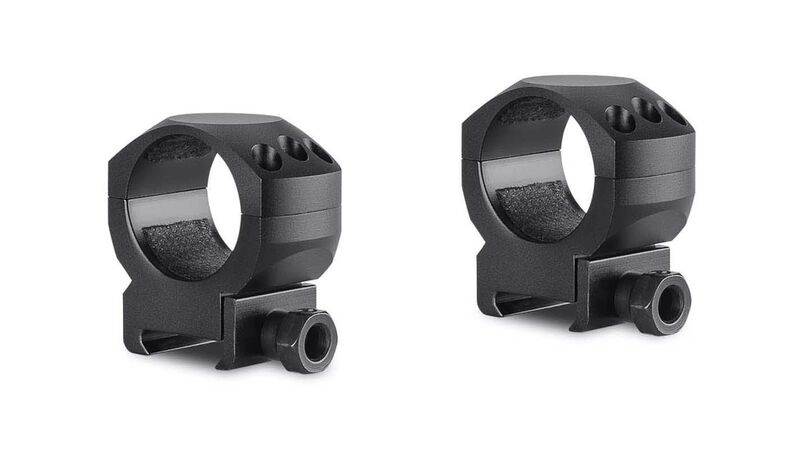

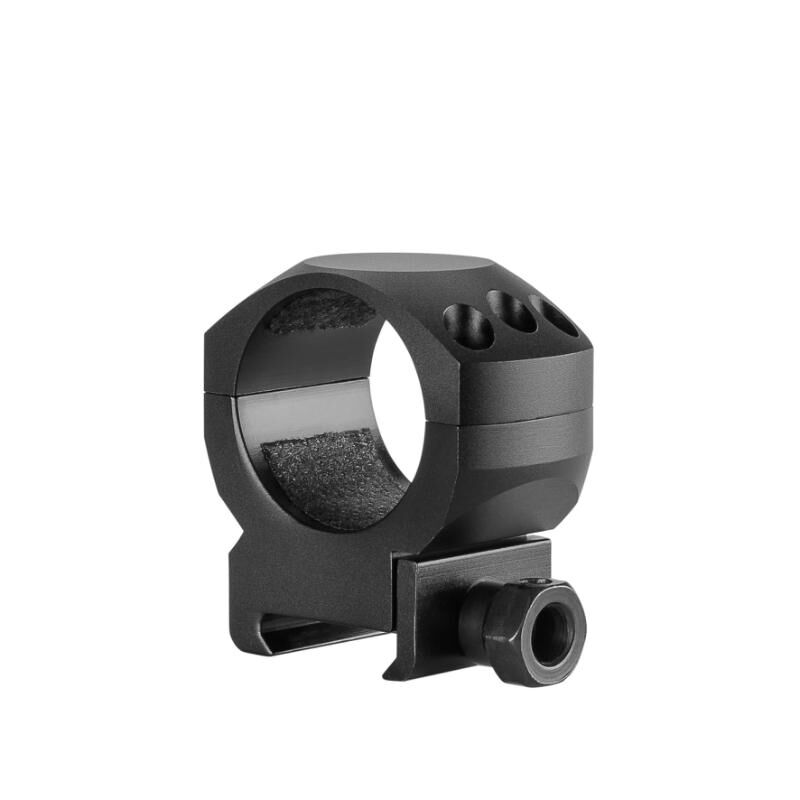

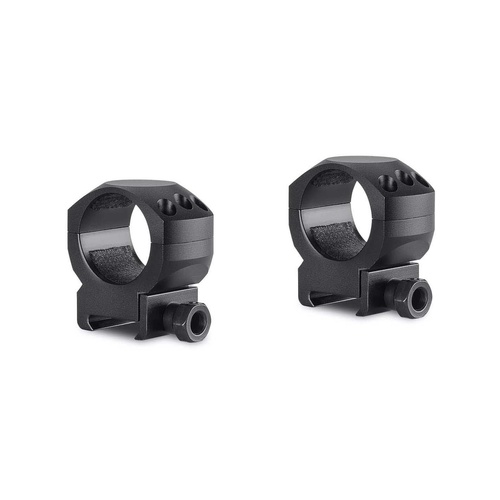

The Hawke Tactical Ring Mounts 30mm 2 Piece Weaver Medium (Model 24116) provide a robust, two-piece mounting interface engineered to secure 30 mm riflescope main tubes to Weaver and standard Picatinny rail cross-slots. Constructed from high-grade CNC machined aluminium with a matte black anodised finish, these rings feature a wide, skeletal design secured by triple Torx T15 screws on each top cap. Designed to withstand demanding recoil profiles from magnum centrefire calibres to bi-directional spring-piston airguns, the mounting system integrates internal cushion tape to protect optical tubes from scratching and marring while preventing scope slippage under heavy recoil.

Key Features

• Triple-Screw Clamping: Features three Torx T15 screws per cap (six screws per set) with 6-32 threading to distribute high clamping pressure across 30 mm scope tubes.
• Internal Cushion Tape: Integrated internal protective lining grips the scope body securely while preventing surface scratches, crimping, or cosmetic damage.
• Positive Indexing Crossbar: Square recoil crossbars lock into Weaver and Picatinny cross-slots to eliminate longitudinal movement during firing.

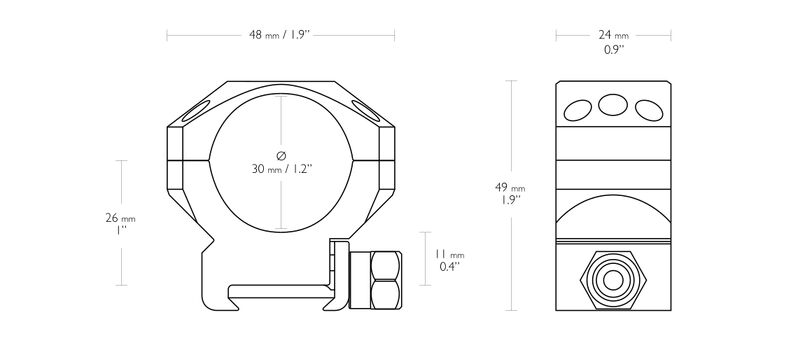

• Medium Height Profile: Measures an overall height of 49 mm (1.9 in), positioning optical axes correctly for objective lenses up to 44 mm–50 mm.
• Durable, Lightweight Build: CNC-machined aluminium construction provides structural rigidity at a total weight of 142 g–143 g (5.0 oz).

Specifications

• Tube Compatibility: 30 mm
• Mounting Base: Weaver rail (Picatinny compatible)
• Profile Height: Medium (49 mm / 1.9 in overall height)
• Total Weight: 142 g–143 g (approx. 5.0 oz)
• Fasteners: Triple Torx T15 screws per cap (6-32 thread)
• Material: CNC machined aluminium with matte black anodised finish

Who is the Hawke Tactical Weaver 30mm Medium for?

• Centrefire rifle hunters — Requires heavy recoil retention delivered by triple Torx T15 clamp screws per ring cap and an integrated square recoil crossbar, keeping 30 mm riflescopes securely zeroed under magnum recoil without adding excess weight to field setups at just 142 g–143 g.
• Target and benchrest shooters — Requires a stable optical alignment for 30 mm optic tubes with up to 50 mm objective lenses, utilising the 49 mm total height profile and non-marring internal cushion tape to protect tube surfaces during precise torque application.

Less suitable for: Riflescopes with objective lenses exceeding 50 mm, flat-top modern sporting rifles, or heavy bull-barrel setups; these configurations require high or extra-high profile scope mounts with total heights greater than 49 mm for sufficient barrel clearance. This model is also incompatible with 1-inch or 34 mm scope tubes, and cannot be mounted to 9–11 mm or 3/8-inch rimfire dovetails without a separate rail adapter.
