Will the Hawke 63011 Sidewheel fit my modern Sidewinder 30 FFP riflescope?

No, this Type 1 sidewheel is specifically designed for older-generation Hawke Airmax 30 SF, Sidewinder ED, and Endurance SF models. Modern scopes like the Sidewinder 30 FFP (such as models 17450 and 17460) use Type 4, Type 5, or direct screw-pattern attachments which are incompatible with this 4-inch unit.

How does the 4-inch diameter improve my parallax and rangefinding precision in the field?

By extending the side focus turret to a 100 mm (4") diameter, the Hawke 63011 provides a much wider rotational circumference and scale separation. This mechanical advantage makes it significantly easier to dial in precise focus adjustments and apply custom yardage or metre marking tape, particularly in the critical 10 m to 50 m distance band used in airgun and rimfire target shooting.

Is this aluminium sidewheel suitable for rugged Australian bush hunting and outback conditions?

Yes, it is constructed from lightweight, high-grade CNC-machined aluminium with a durable matte black anodised finish designed to withstand typical outdoor temperatures ranging from -20°C to +50°C. However, because of its 100 mm profile, shooters carrying rifles through dense Australian brush should be mindful that it can occasionally snag compared to lower-profile knobs or smaller 65 mm wheels.

Does this mechanical accessory require any special electrical certification or maintenance for use in Australia?

No, as a purely mechanical optical attachment with no electrical components, it requires no 240V power, AC plugs, or SAA/RCM regulatory certification. Maintenance is minimal; simply keep the CNC-machined spline interface clean and occasionally wipe down the anodised body with a dry microfiber cloth after exposure to outback dust or moisture.

Hawke Sidewheel - Hawke 63011

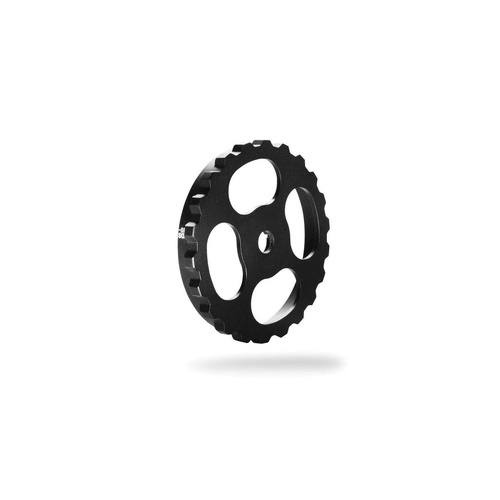

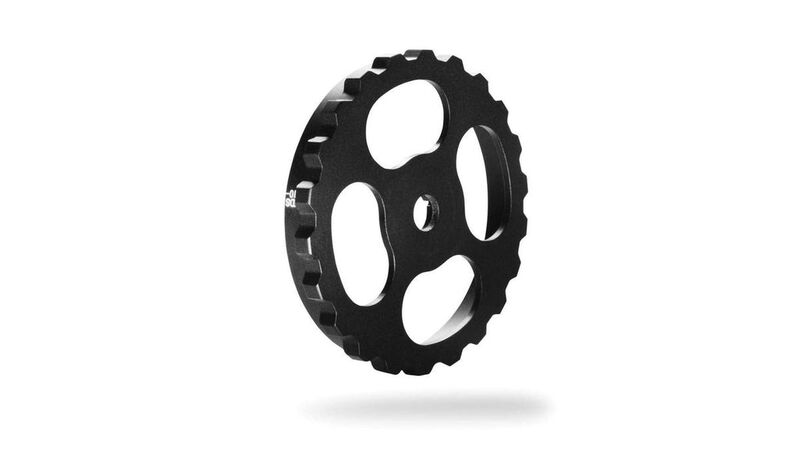

The Hawke Side Wheel 4" Attachment Type 1 (Hawke 63011) is a precision-engineered optical accessory that attaches directly to compatible side-focus riflescope turrets. By extending the turret's rotational diameter to 100 mm (4 inches), this mechanical wheel increases physical leverage and rotational travel, allowing shooters to dial in fine parallax corrections and eliminate optical error smoothly. Constructed from CNC-machined aluminium with a matte black anodised finish, the wheel adds minimal weight (approximately 20 g to 50 g) while providing an expanded outer circumference suitable for applying custom yardage and metre marking tape for optical rangefinding.

Key Features

Increased Rotational Diameter: Extends the side focus knob to a 100 mm (4") diameter, delivering finer rotational resolution for smooth, exact parallax adjustment across critical target ranges.
Rangefinding Surface: The wide outer rim provides space for applying custom distance-marking tape, facilitating rapid visual range estimation in field shooting sports.
Durable Aluminium Construction: CNC-machined from high-grade aluminium with a matte black finish, designed to withstand recoil from spring-piston airguns, pre-charged pneumatic (PCP) rifles, and centerfire calibres.
Type 1 Direct Fit: Built specifically to mate with older-generation Hawke Type 1 side focus housings without altering the host optic's factory focus range.

Specifications

Diameter: 100 mm (4 inches)
Weight: Approximately 20 g to 50 g
Material: CNC-machined, anodised aluminium
Finish: Matte black
Attachment Interface: Hawke Type 1 side focus splines
Optic Compatibility: Pre-WA/non-FFP Hawke Airmax 30 SF, Sidewinder ED (8-40×56, 10-50×60), Endurance 30 SF, and Endurance SF riflescopes

Who is the Hawke Side Wheel 4" Type 1 for?

Field Target and Hunter Field Target competitors — requires the 100 mm (4") diameter sidewheel to mechanically expand the physical spacing between focus distances, enabling precise optical rangefinding and fine parallax calibration in competitive airgun lanes.
Long-range rimfire target shooters — relies on the 100 mm (4") rotational profile of this riflescope sidewheel attachment to make sub-millimetre focus adjustments across varying target distances on compatible Type 1 optics.
Varmint and pest control shooters — utilizes the lightweight 20 g to 50 g aluminium wheel on compatible Hawke SF riflescopes to quickly confirm target range and eliminate parallax error before taking stationary shots.

Less suitable for: Hunters operating in dense brush or using compact rifle cases where a 100 mm (4") diameter causes snagging (a compact 65 mm / 2.5" side wheel or standard low-profile knob is better suited), shooters requiring maximum scale separation for dedicated benchrest rangefinding (a larger 150 mm / 6" target wheel is better suited), or owners of Hawke Sidewinder H5, Sidewinder 30 FFP, and Vantage SF scopes (which require Type 4, Type 5, or screw-pattern attachments).

SKU	HWK40104LP
Model #	63011
Brand	Hawke
Shipping Weight	1.0000kg
