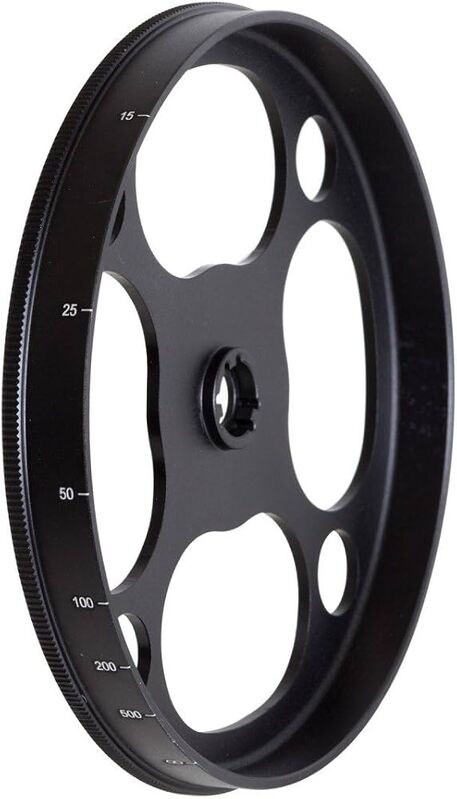

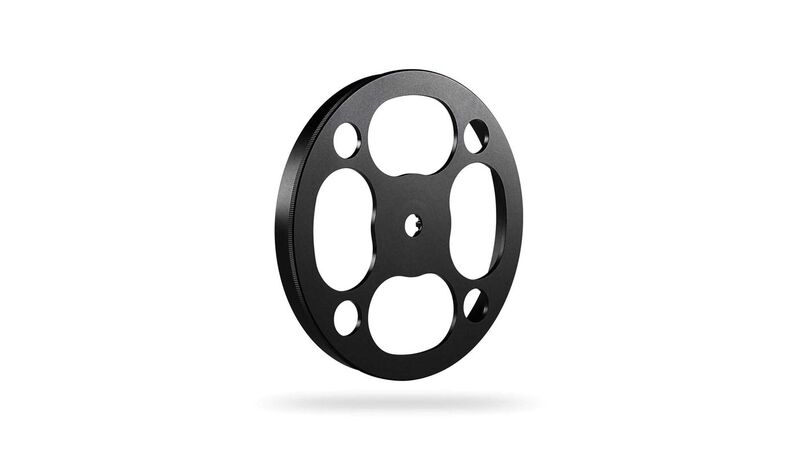

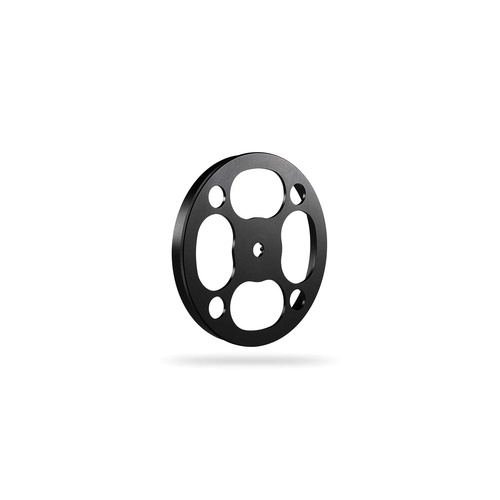

The Hawke Target Wheel Large – 150mm (Model 63013) is a precision-machined riflescope side focus accessory designed to enhance parallax resolution. By significantly expanding the rotational circumference of compatible side-focus turrets, this 150 mm (6 inches) wheel allows subtle adjustments at the turret to translate into larger physical movements on the wheel rim. This expanded surface enables shooters to apply custom yardage or metric marking tape for precise optical rangefinding, particularly when focusing between 10 and 55 metres.

Key Features

• Oversized Parallax Resolution: The 150 mm diameter wheel provides an expanded circumference that allows for ultra-fine focus adjustments compared to standard factory turrets or smaller wheels.
• Optical Rangefinding Capability: The wide rim provides ample space for custom distance markings, assisting high-magnification shooters in determining precise target distances via depth of field.
• Durable Machined Construction: CNC-machined from high-grade aluminium with a black anodised finish for lightweight rigidity and resistance to outdoor field conditions.
• Type 1 Splined Interface: Designed specifically for Hawke scopes with a Type 1 side-focus hub fitting.

Product Specifications

• Product Name: Hawke Target Wheel Large – 150mm (Type 1)
• Model Number: 63013
• Diameter: 150 mm (6 inches)
• Packaged Weight: Approximately 0.3 lb (approx. 136 g)
• Material: High-grade anodised aluminium
• Power Requirements: None (mechanical accessory)
• Interface Compatibility: Hawke Sidewinder ED (including 10–50×60 ED), Hawke Airmax 30 SF, Hawke Endurance SF, and Hawke Endurance 30 SF scopes

Who is the Hawke Target Wheel Large - 150mm for?

• Field Target air rifle competitors — requires the 150 mm (6 inches) oversized outer rim of this target wheel to apply custom distance marking tape, enabling precise optical rangefinding across competitive 10 to 55-metre target distances.
• Precision long-range target shooters using high-magnification scopes — relies on the 150 mm diameter to maximise rotational leverage and fine-focus control without adding excessive weight, keeping the packaged accessory footprint down to 0.3 lb.

Less suitable for: General hunting or walking brush carry where the broad 150 mm (6 inches) profile risks snagging on branches and gun slips; a compact 65mm or 100mm side wheel or standard turret cap is better suited. It is also incompatible with standard legacy Sidewinder 30 SF optics or Gen II H5 Sidewinder scopes that require dedicated Type 4 or Type 5 wheels.
