Is the Hawke Target Wheel 4 Inch (Type 5) compatible with older legacy Sidewinder or Airmax riflescopes?

No, this specific model features a Type 5 interface and is incompatible with legacy Sidewinder and Airmax models utilising Type 1 through 3 interfaces. It is specifically engineered to fit compatible generations of the Hawke Sidewinder 30 SF and FFP scopes, such as the Hawke Sidewinder 30 FFP 6-24x56 (SKU 17460).

How does the 100mm diameter perform during active field use in Australian bush and outback conditions?

Constructed from precision-machined, high-grade aluminium with a matte black non-reflective finish, the 100mm (4.0 inch) wheel expands the rotational circumference of your side focus turret for fine-increment range finding. While ideal for precision target shooting, the 100mm medium size requires mindful handling during multi-day carry in dense bush to avoid snagging on vegetation compared to smaller 65mm hunting variants.

Does this mechanical accessory require any electrical compliance or batteries for operation in Australia?

No, the Hawke Target Wheel is an entirely passive, non-powered mechanical optical accessory requiring no batteries, mains electricity, or Australian electrical certifications such as SAA or RCM. It mounts directly onto your compatible riflescope turret via a secure push-fit mechanism to aid in optical parallax adjustment.

Can I apply custom range tapes directly to the perimeter of the 100mm Type 5 target wheel?

Yes, the precision-machined aluminium wheel provides ample perimeter surface space specifically designed for shooters to apply custom yardage or metre range-tape indicators. This allows for precise calibration and repeatable distance estimation during competitive field target or long-range rimfire events.

Scope Target Wheel - Hawke 63025

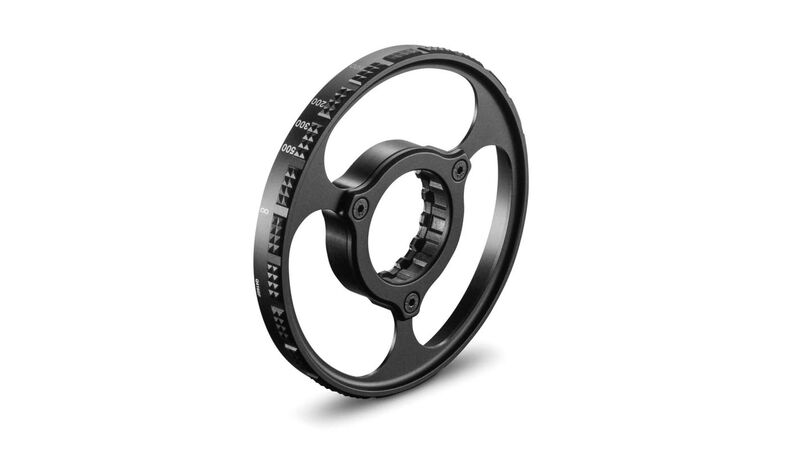

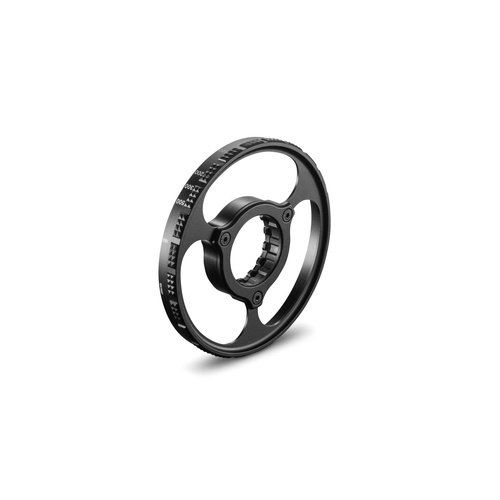

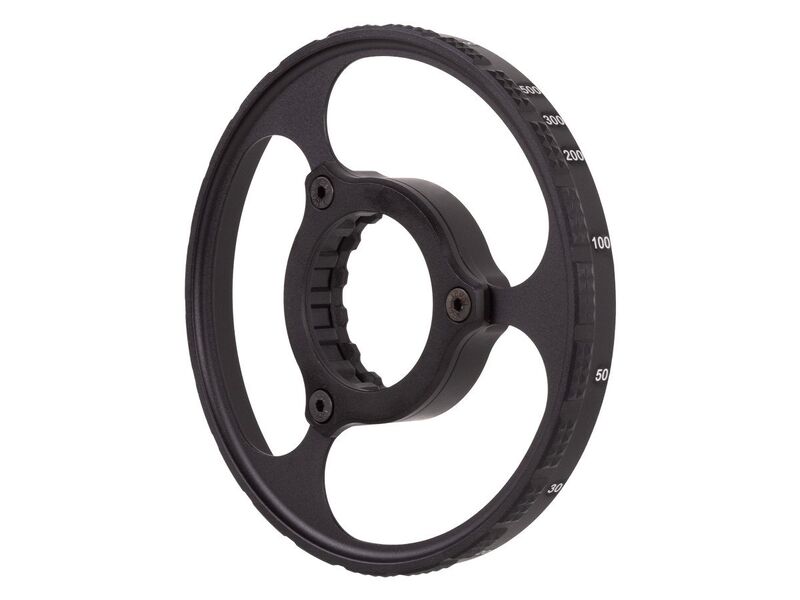

The Hawke Target Wheel 4 Inch / 100mm (Type 5) (SKU: 63025) is a precision-machined riflescope accessory engineered to expand the rotational circumference of compatible Hawke side-focus turrets. Constructed from high-grade aluminium with a non-reflective matte black finish, this mechanical wheel slips directly over the factory side-focus assembly. By significantly increasing the perimeter arc of the parallax dial, it provides shooters with enhanced fine-focus control and extensive surface area to apply custom range-finding tape for precise target distance estimation.

Key Features

100mm (4.0-Inch) Diameter Arc: Substantially increases parallax turret rotation distance, facilitating fine-increment focus adjustments and optical range estimation.
Direct Type 5 Interface Fit: Precision CNC-machined slip-on profile designed specifically for seamless alignment over Type 5 Hawke side-focus turrets without slipping.
Markable Perimeter Surface: Provides dedicated external circumference space for applying custom distance indicators and yardage/meter range tape.
High-Grade Aluminium Build: Lightweight, all-metal construction finished in non-reflective matte black to match riflescope tube coatings without adding unnecessary bulk.
Passive Mechanical Design: Requires no batteries, external power, or wiring to operate.

Specifications

Product Name: Hawke Target Wheel 4 Inch / 100mm (Type 5)
Model / SKU: 63025
Diameter: 100 mm (4.0 inches)
Material: High-grade machined aluminium
Finish: Matte black
Interface Type: Type 5 push-fit spline
Riflescope Compatibility: Hawke Sidewinder 30 SF and Hawke Sidewinder 30 FFP models featuring the Type 5 turret hub (including SKUs 17260, 17261, 17270, 17271, 17460)

Who is the Hawke Target Wheel 4 Inch / 100mm (Type 5) for?

Air rifle Field Target competitors — Requires the 100 mm (4.0-inch) diameter to expand the parallax rotation arc, enabling the precise optical distance estimation and custom range-tape spacing vital for competitive target disciplines.
Precision rimfire target shooters — Utilises the large 100 mm circumference on this riflescope side focus target wheel to make micro-adjustments for parallax-free sight pictures across varied target distances.

Less suitable for: Shooters using optics that do not feature the Type 5 interface hub, such as Hawke Vantage HD series scopes or legacy Sidewinder and Airmax models using Type 1 through 3 interfaces; these setups require a dedicated series-specific adapter or alternative-sized turret wheel.

SKU	HWK40108LP
Model #	63025
Brand	Hawke
Shipping Weight	1.0000kg
