Will the Hawke 70052 bottle clamp fit my PCP air rifle buddy bottle?

This specific model is engineered for air bottles with an outer diameter ranging from 60 mm to 63 mm, or approximately 2.4" to 2.5". If you have a smaller 50 mm air tube or bottle, you will need the smaller Hawke 70051 model instead to ensure a secure fit.

What kind of bipods and slings can I attach using this clamp?

The adapter features a standard rifle sling swivel stud, making it fully compatible with Uncle Mike's style sling swivels and traditional stud-mounted bipods like Harris models. If your preferred bipod requires a Picatinny or Arca-Swiss rail attachment, you would need to use an additional stud-to-rail adapter.

Does this clamp require any special electrical approvals or permits for use in Australia?

As a 100% mechanical hardware accessory, it does not use electricity, so 240V mains compatibility and SAA/RCM electrical approvals do not apply. It is fully compliant and legal for general consumer use across all Australian states and territories.

How do I install the Hawke 70052 without damaging my carbon fibre or aluminium air cylinder?

The clamp attaches directly around your PCP air rifle's buddy bottle without requiring you to drill into the rifle stock. When installing, standard practice applies to avoid over-torquing the screws against carbon-fibre composite or aluminium cylinders to prevent surface damage.

PCP Bipod Adapter - Hawke 70052

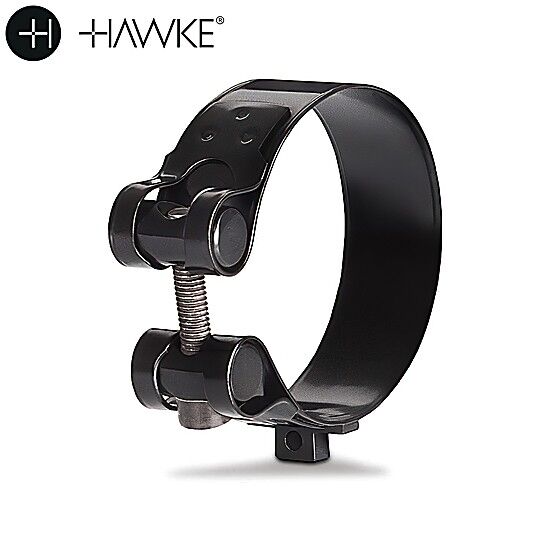

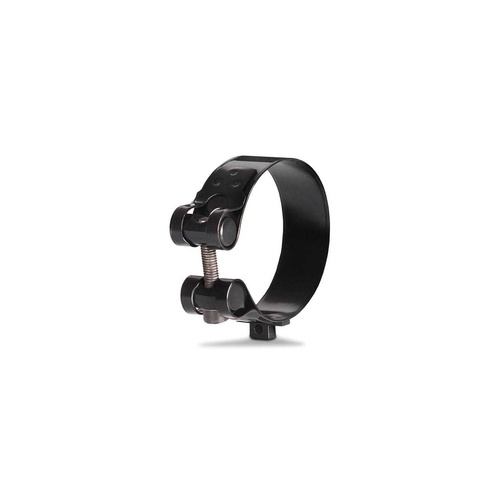

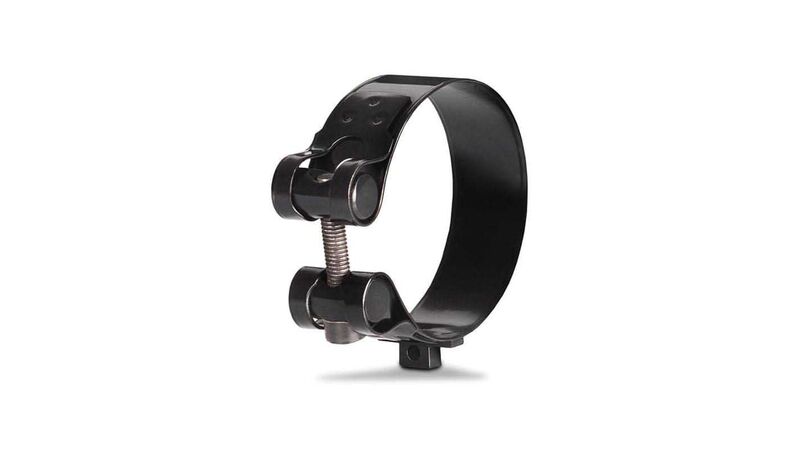

The Hawke PCP Bottle Clamp Ring Bipod Adapter (model 70052) provides a forward mounting point on pre-charged pneumatic (PCP) air rifles with buddy bottles or carbon air cylinders. Manufactured from high-grade aluminium with a black anodised finish, the mechanical clamp installs directly around the air reservoir to add a standard Uncle Mike's style rifle sling swivel stud. This design allows shooters to mount Harris-style bipods or rifle slings without modifying or drilling into the airgun stock.

Key Features

Direct Bottle Mounting: Clamps around the air cylinder to position bipods at the forwardmost point of the rifle for increased benchrest and field stability.
Stock-Preserving Installation: Adds an integrated sling swivel stud without the need to drill into wooden or synthetic air rifle stocks.
Durable Construction: Made from high-grade aluminium finished with protective black anodising.
Universal Stud Interface: Compatible with standard swivel stud-mounted bipods and sling attachments.

Product Specifications

Clamp Diameter Compatibility: 60 mm to 63 mm (2.4" to 2.5" outer diameter)
Interface: Standard rifle sling swivel stud
Material: High-grade aluminium with black anodised finish
Package Dimensions: 146 mm × 94 mm × 24 mm (5.75" × 3.7" × 0.95")
Packaged Weight: Approximately 93 g (~0.205 lb)
Power Requirements: None (passive mechanical hardware)

Who is the Hawke PCP Bottle Clamp Adaptor 2.4-2.5" for?

PCP Air Rifle Target Shooters Using Buddy Bottle Platforms — Secures a forward Harris-style bipod support point to cylinders measuring 60 mm to 63 mm in outer diameter, allowing target shooters to achieve a wider, more stable base without modifying their factory stock.
Airgun Hunters Mounting a Bipod to a Carbon Air Cylinder — Adds a rigid sling swivel stud interface to 2.4" to 2.5" air bottles while adding only approximately 93 g of packaged hardware weight to the rifle setup.

Less suitable for: Air rifles with air reservoir tubes measuring outside the 60 mm to 63 mm diameter range (such as 50 mm air tubes, which require a dedicated 50 mm clamp adapter), or accessory setups requiring a Picatinny (1913) or Arca-Swiss rail attachment, which require a rail-interface bottle clamp or a stud-to-rail conversion adapter.

SKU	HWK40129LP
Model #	70052
Brand	Hawke
Shipping Weight	1.0000kg
