What is the minimum focus distance for the side focus parallax on the Hawke Airmax 30 SF Compact 3-12x40?

The side focus parallax adjusts from 9 metres (10 yards) up to infinity. This makes it ideal for close-range pest control and small-game hunting, though shooting at distances under 9 metres requires a specialised close-range optic or red dot.

Is the eye relief long enough for heavy-recoiling centerfire rifles?

No, the eye relief is fixed at 76 mm (3 inches). While the scope is shockproof and rated for various airgun calibres, this relatively short eye relief makes it unsuitable for high-recoil centerfire hunting rifles that require longer eye relief to prevent optical contact.

Does this optic require any special electrical compliance or Australian certifications?

As a purely passive optical device powered only by an internal 3V CR2032 button cell battery for the 6-level red illumination, it contains no 240V mains connection and is exempt from Australian SAA or RCM electrical compliance certifications.

What mounting hardware should I use if I want to mount this scope onto an airgun with a 9-11 mm dovetail?

The 30 mm mono-tube readily supports standard Australian mounting rings, and you can utilise hardware such as the Hawke 22403 Dovetail to Weaver Adaptor Base or the Hawke 22402 Rail Adaptor Picatinny Extension to seamlessly attach it to your firearm.

Airgun Riflescope - Hawke 13200 3-12x40

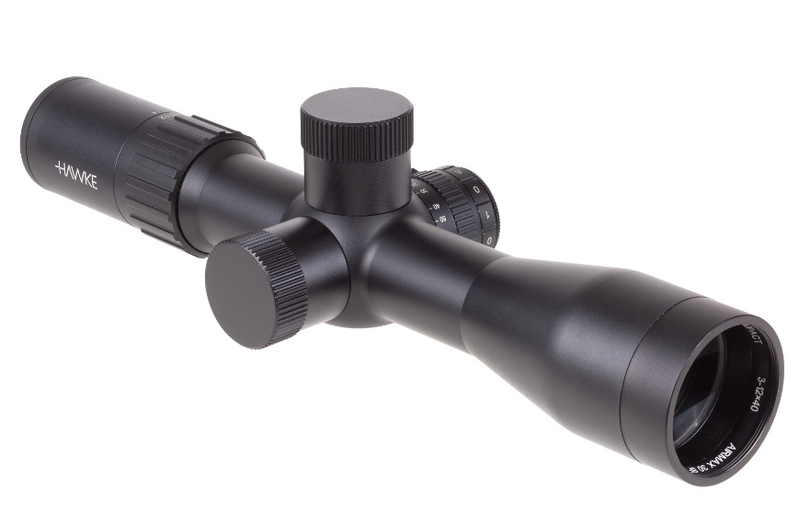

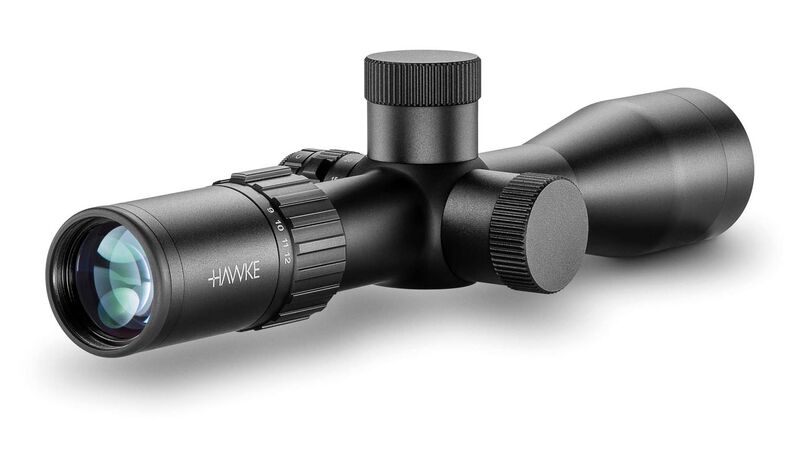

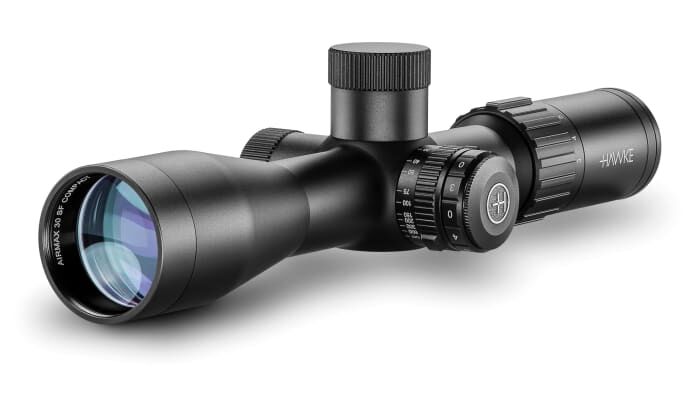

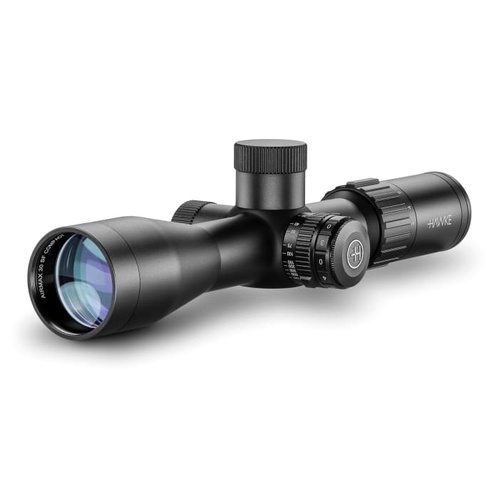

The Hawke Airmax 30 SF Compact 3-12x40 AMX IR is a dedicated compact air rifle scope designed for airgun hunting, pest control, and target shooting. Built on a 30 mm anodized aluminium mono-tube chassis, it features Hawke's System H2 optical design with 16-layer fully multi-coated lenses. It incorporates a glass-etched AMX IR reticle in the second focal plane, calibrated with half-Mil spacing at 10x magnification to assist with curved airgun pellet and slug trajectories. An integrated side focus wheel, supplied with an attachable 3-inch sidewheel, provides parallax adjustment starting at 9 metres (10 yards) through to infinity.

Key Features

System H2 Optics: Features 16-layer fully multi-coated lenses paired with a 40 mm objective lens for clear image reproduction across the 3–12x magnification range.

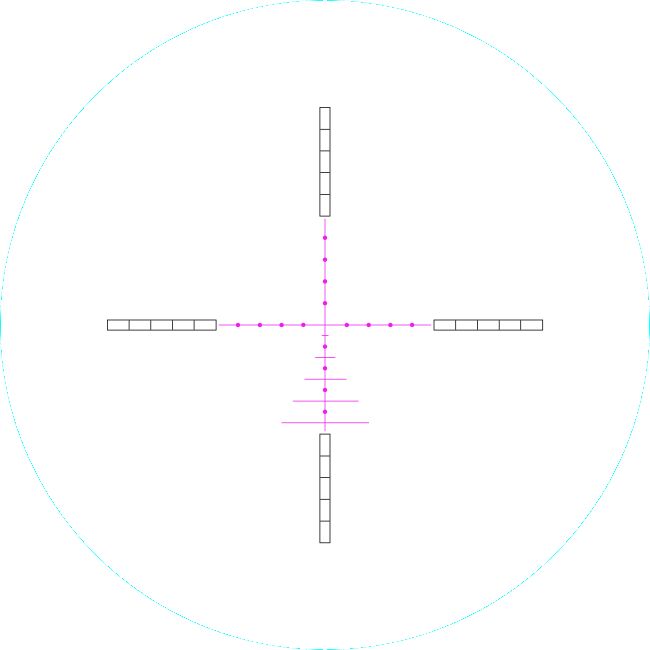

Specialised AMX IR Reticle: Glass-etched second focal plane reticle with stepped red illumination (6 levels) powered by an internal CR2032 battery, offering lower half-Mil spacing and horizontal stadia for holdover and windage compensation.
Side Parallax Adjustment: Side focus mechanism adjustable from 9 metres (10 yards) to infinity, compatible with the included 3-inch add-on wheel for fine tuning.
Precision Turrets: Capped, resettable target turrets featuring 1/10 MRAD click values with 30 MRAD total elevation and windage travel.
Rugged Environmental Sealing: Nitrogen-purged chassis that is waterproof, shockproof, and fogproof for all airgun calibres.

Specifications

Magnification: 3–12x
Objective Lens Diameter: 40 mm
Main Tube Diameter: 30 mm

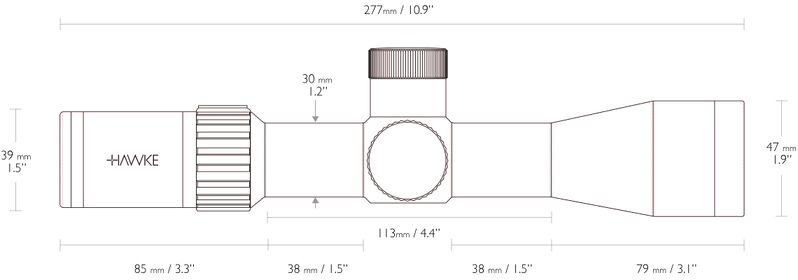

Overall Length: 277 mm (10.9 in)
Weight: 589 g (20.8 oz)
Eye Relief: 76 mm (3.0 in)
Field of View: 14.6 m – 3.6 m @ 100 m (43.7 – 10.9 ft @ 100 yds)
Exit Pupil: 13.3 mm – 3.3 mm
Reticle: AMX IR (Second Focal Plane, glass-etched)
Adjustment Increment: 1/10 MRAD (30 MRAD total range)
Minimum Parallax Focus: 9 metres (10 yards)
Battery: 1x CR2032

Who is the Hawke Airmax 30 SF Compact 3-12x40 for?

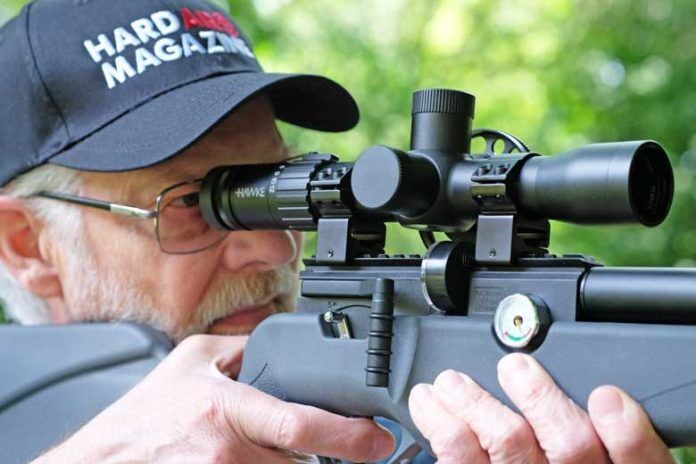

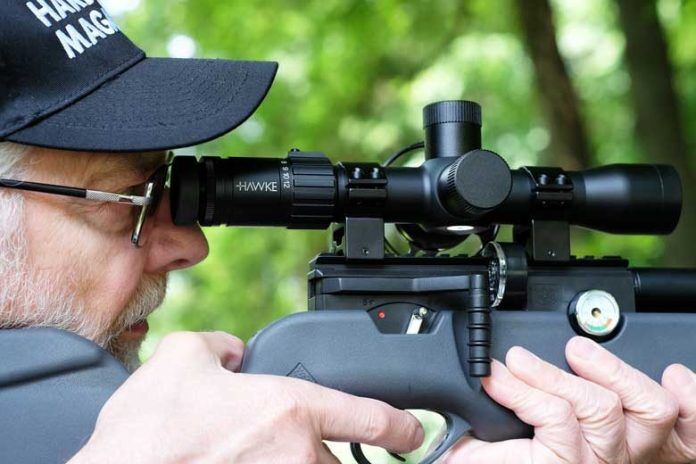

Bullpup and forward-loading carbine shooters — benefits from an ultra-short 277 mm overall length and a weight of 589 g, allowing this compact air rifle scope to preserve balance without obstructing forward magazine loading ports.

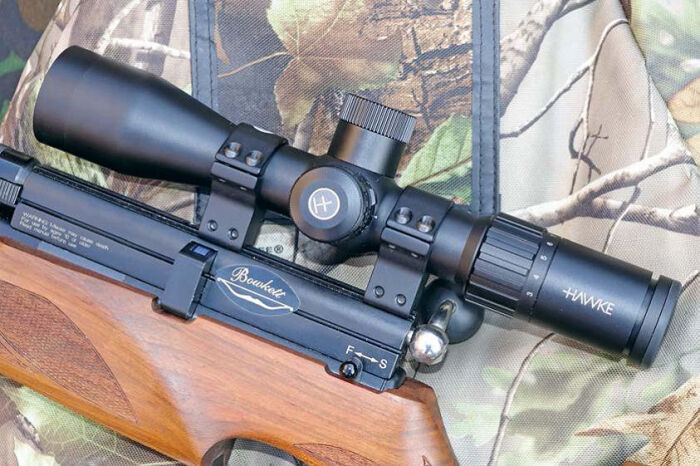

PCP and spring-piston airgun hunters — utilises a versatile 3-12x magnification range paired with a 30 mm mono-tube and an AMX IR reticle calibrated to compensate for airgun ballistic drop across short-to-medium field distances.

Less suitable for: Shooting distances under 9 metres, which require a specialised close-range optic or red dot sight; high-recoil centerfire hunting rifles that demand eye relief greater than 76 mm to avoid optic bite; or extreme long-range precision and benchrest competitions requiring magnification levels exceeding 12x.

SKU	HWK39804LP
Model #	13200
Brand	Hawke
Shipping Weight	1.0000kg
