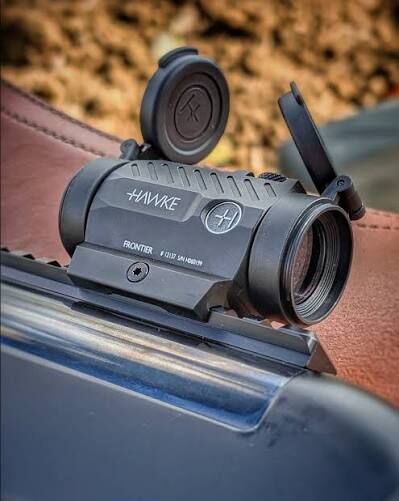

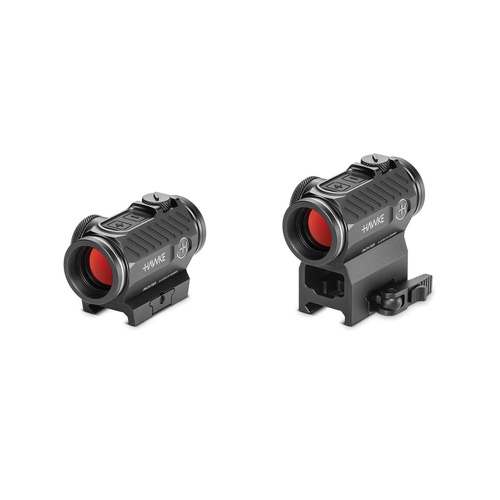

The Hawke Frontier Red Dot 1x22 (Model 12137) is an enclosed micro red dot sight engineered for fast target acquisition on dynamic shooting platforms. Built around an enclosed 22mm objective lens with System H7 25-layer multi-coated optics, this 1x magnification optic delivers a clear, parallax-free sight picture from 10 yards (9 metres) to infinity. The unit features a fine 2 MOA red dot powered by a single CR2032 battery and incorporates A.I.M. (Auto Illumination Mode) motion-sensing technology, which puts the sight into standby sleep mode after 2 minutes of inactivity to deliver up to 50,000 hours of runtime.

Key Features

• Enclosed Aluminium Housing: Fully sealed, nitrogen-purged, IPX7 waterproof, and shockproof across all firearm calibres.
• 10-Stage Digital Illumination: Features 8 daylight brightness levels and 2 night-vision compatible settings with guarded, recessed push-button controls.
• Precision Adjustments: Turrets provide 1/2 MOA click values for precise windage and elevation zeroing.

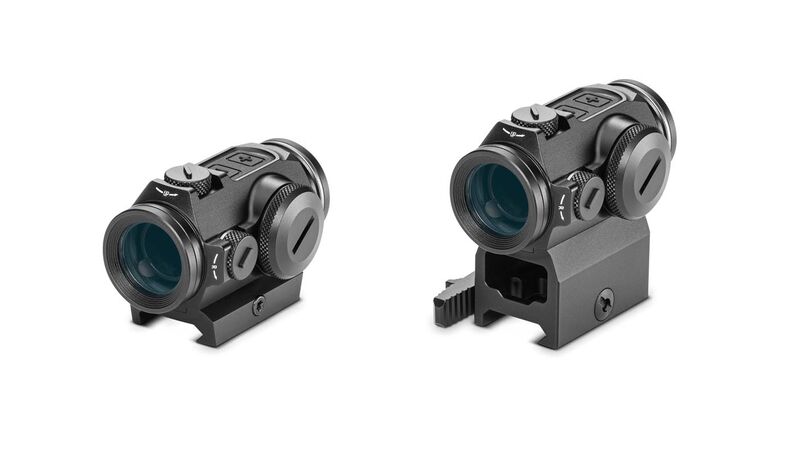

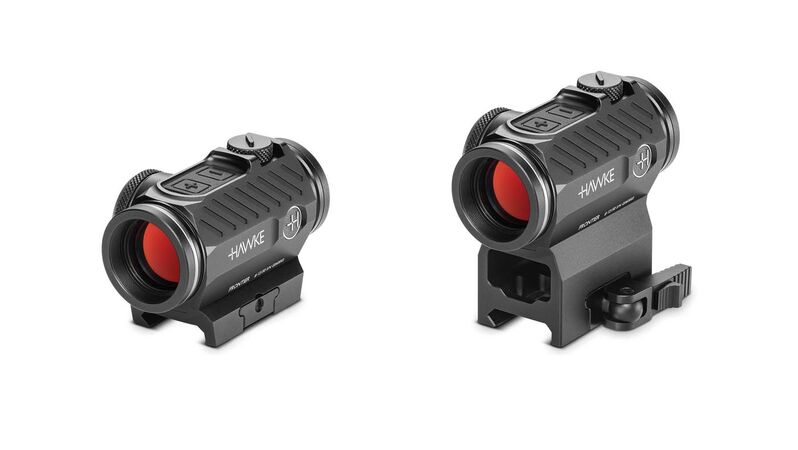

• Aimpoint Micro T-2 Footprint: Comes supplied with both a low-profile Weaver/Picatinny base and a lower-1/3 co-witness quick-release mount.
• Included Accessories: Ships with a honeycomb kill-flash sunshade and protective flip-up lens covers.

Specifications

• Model Number: 12137
• Magnification: 1x
• Objective Lens Diameter: 22 mm

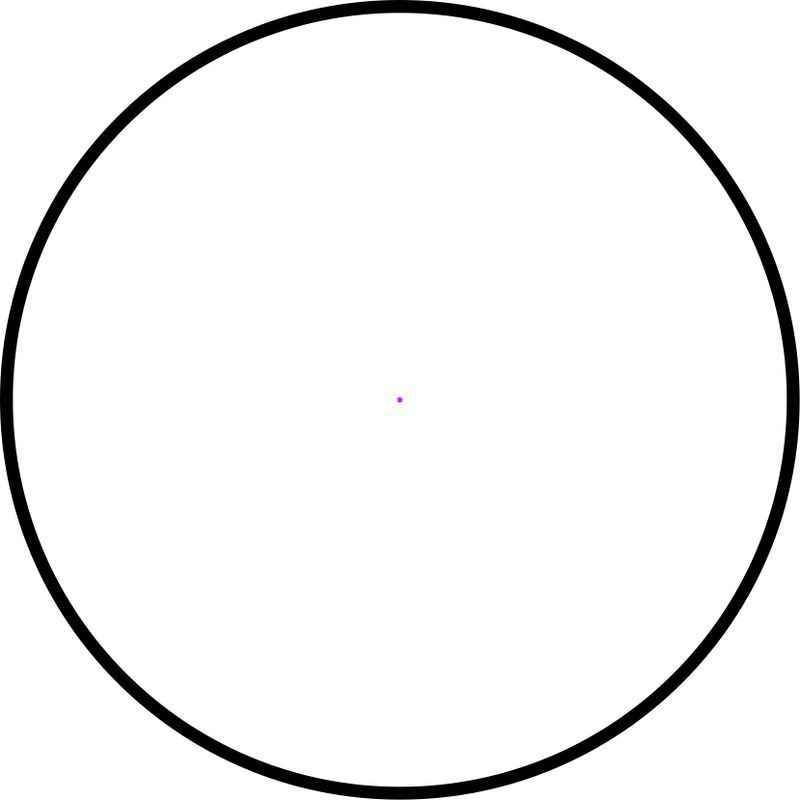

• Reticle: 2 MOA Red Dot
• Click Value: 1/2 MOA
• Optical Coating: System H7 Multi-Coated (25 Layers)
• Parallax: Parallax error-free from 10 yd (9 m) to infinity
• Dimensions: 71 mm (L) x 40 mm (W) x 39 mm (H) / 2.8 in x 1.6 in x 1.5 in
• Weight: 110 g / 3.9 oz
• Battery Type: 1x CR2032 (3V Coin Cell)
• Mount Compatibility: Weaver / Picatinny (Micro T-2 Pattern)

Who is the Hawke Frontier 1x22 Red Dot for?

• Feral pest hunters using lever-action and hunting rifles — relies on the 2 MOA red dot and 1x magnification to acquire moving targets such as wild dogs and feral pigs rapidly within 0 to 150 metres without obscuring critical target zones.
• AR-platform carbine shooters — benefits from this micro red dot sight featuring an ultra-compact 110 g (3.9 oz) footprint and an included lower-1/3 co-witness mount designed for fast, heads-up target transitions.
• Dynamic shotgun users — utilizes the shockproof, recoil-rated 22mm enclosed tube housing to maintain zero through heavy recoil while tracking fast-moving close-range targets.

Less suitable for: Long-range shooting beyond 150 to 200 metres, where unmagnified red dots lack the target resolution of a magnified low-power variable optic (LPVO) or a standard riflescope.
