Will changing the battery on the Hawke Frontier 1x24 3 MOA Slim Digital Auto Weaver / RMSc require me to re-zero the optic?

No, you do not need to remove the optic or re-zero when replacing the battery. The unit features a convenient side slide-out battery tray secured with a retention screw, allowing quick coin-cell battery swaps while maintaining your zero.

How does the auto-brightness and standby function perform during extended outdoor or bush hunting sessions?

The sight features an onboard ambient light sensor that dynamically adjusts the 10-stage digital brightness to match changing lighting conditions. Additionally, the Auto Illumination Mode (A.I.M.) places the red dot into standby after 2 minutes of being stationary, instantly reactivating upon movement to maximize battery life for multi-day carry in the outback.

Is the Hawke 12160 rated to handle heavy centre-fire handgun and shotgun recoil?

Yes, Hawke explicitly rates the Frontier 1x24 slimline sight as all-calibre rated. It is built to be shockproof and waterproof, making it fully capable of handling heavy recoil from centre-fire handguns, shotguns, and sporting rifles without losing zero.

What firearm mounting patterns are compatible straight out of the box with the Hawke 12160?

The sight comes equipped with a direct Shield RMSc footprint mount base, making it an ideal match for optics-ready slimline pistols. It also includes a low-profile Weaver and Picatinny rail adapter base, allowing you to easily mount it to rifles and shotguns.

Red Dot Sight - Hawke Frontier 12160

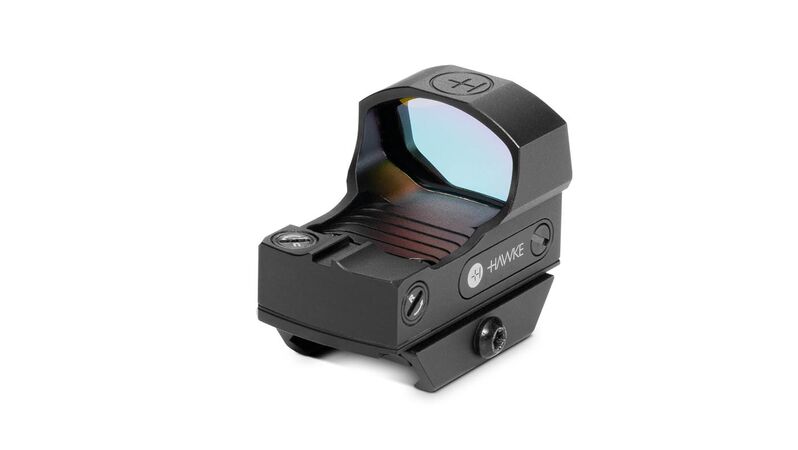

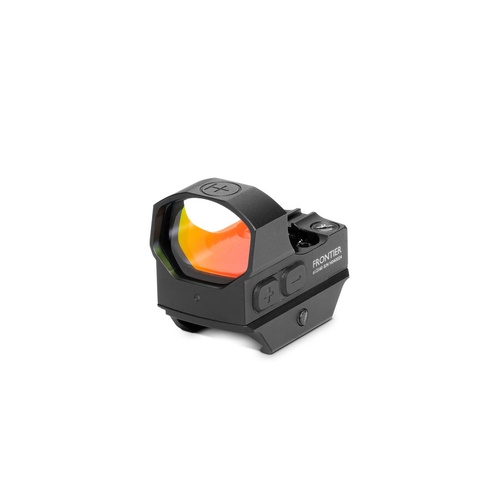

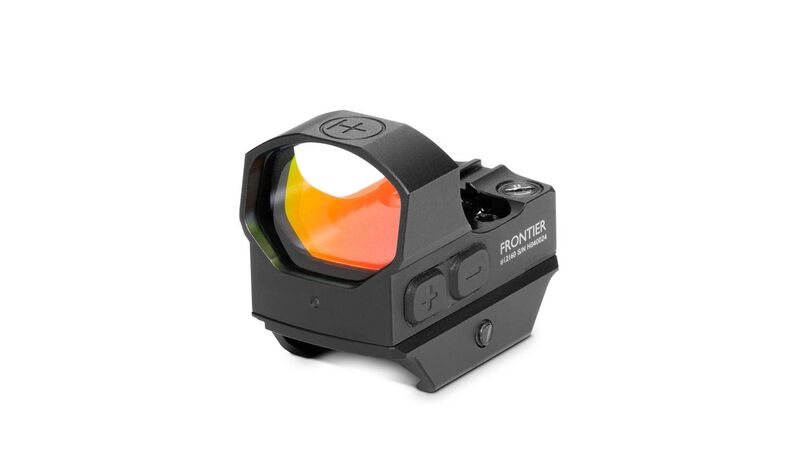

The Hawke Frontier 1x24 3 MOA Slim Digital Auto (Model 12160) is an unmagnified micro red dot sight engineered for fast target acquisition across slimline handguns, shotguns, and lightweight hunting rifles. Built with a 24 mm objective lens window, it projects a precise 3 MOA red dot with parallax-free performance from 10 yards (9 metres) to infinity. The sight features an all-calibre recoil-rated design, dual illumination control with digital and ambient light sensing modes, and a side-loading battery tray that eliminates the need to remove or re-zero the optic during battery changes.

Key Features

Dual Illumination Control: Offers 10 digital brightness stages (8 daylight and 2 night-vision levels) as well as an integrated ambient light sensor for automatic dynamic brightness adjustment.
Auto Illumination Mode (A.I.M.): Automatically enters standby mode when motionless for 2 minutes and powers back on instantly upon detected movement.
Side-Access Battery Tray: Houses a single coin-cell battery in a slide-out tray secured by a captured retention screw, preserving zero during replacements.
Mounting Versatility: Direct-mounts to any standard Shield RMSc optic footprint and includes a low-profile Weaver/Picatinny adapter rail.
Impact Protection: Ships with an added steel protective shroud that encases the aluminium body to guard against severe external impacts.

Technical Specifications

Model Number: 12160
Magnification: 1x
Objective Lens Window: 24 mm

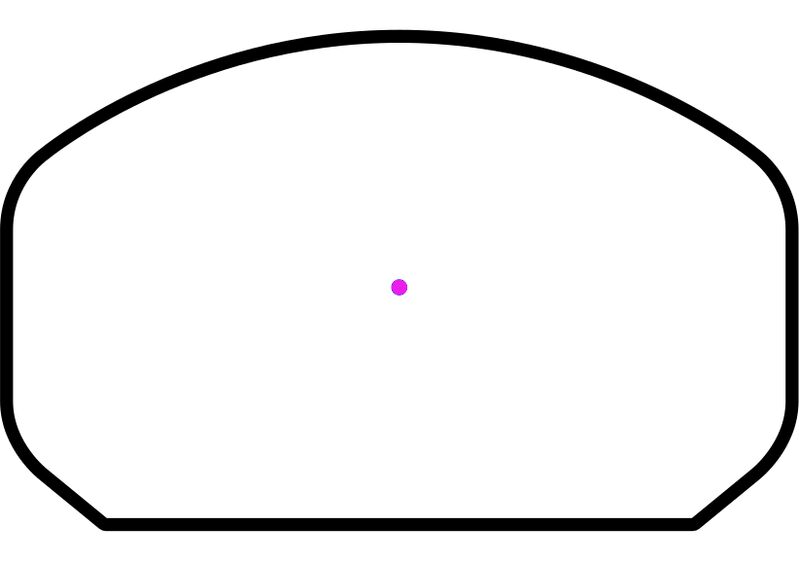

Reticle: 3 MOA red dot
Illumination: 10-stage digital control (8 daylight / 2 night-vision) plus auto-brightness sensing
Parallax Envelope: Parallax-free from 10 yards (9 metres) to infinity
Footprint Pattern: Shield RMSc direct-mount (includes Weaver / Picatinny rail base)
Battery Runtime: Up to 5+ years on daylight-bright settings
Environmental Rating: Waterproof and shockproof (all-calibre rated)

Who is the Hawke Frontier 1x24 Slim Digital Auto for?

Optics-ready slimline pistol owners — Mounts directly to factory RMSc footprint slide cuts while providing a 24 mm objective lens window and a 3 MOA red dot suited to compact handgun profiles.
Action pistol and practical shooting competitors — Delivers rapid target acquisition with a 3 MOA red dot optic that features 10-stage digital brightness settings and motion-activated A.I.M. standby functionality.
Lightweight hunting rifle and shotgun platform users — Provides an all-calibre recoil-rated 1x magnification reflex sight that includes a low-profile Weaver adapter base and an impact-resistant steel shroud.

Less suitable for: Long-range shooting requiring optical magnification or bullet-drop compensation beyond an unmagnified 1x reflex view (a dedicated magnified riflescope or prism optic is better suited), or firearms with slide cuts designed strictly for full-size footprints like Docter or Leupold DeltaPoint Pro without using an appropriate adapter plate.

SKU	HWK39694LP
Model #	12160
Brand	Hawke
Shipping Weight	1.0000kg
