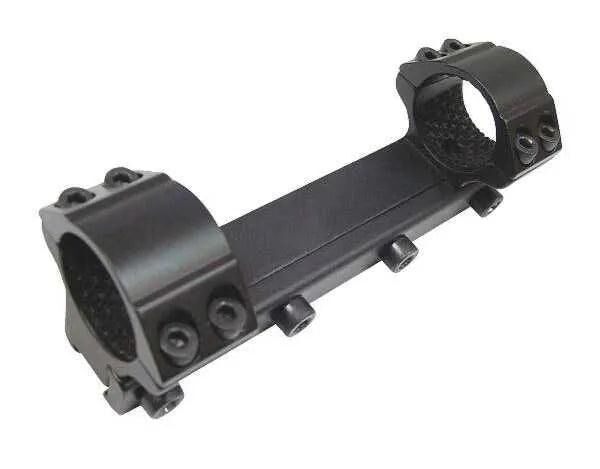

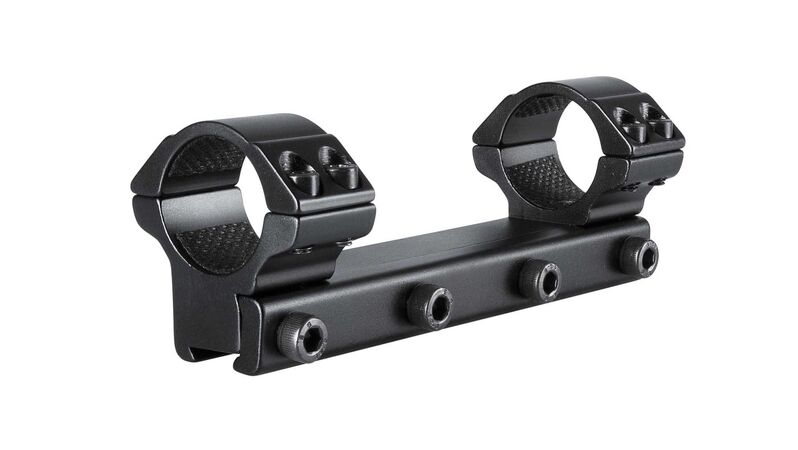

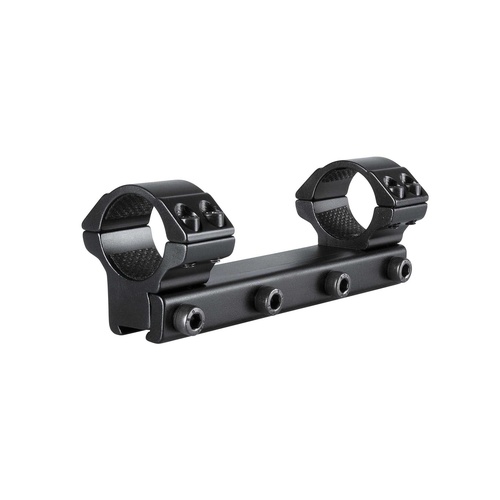

The Hawke Bridge Mount 9-11mm 1" Dia Med (Model: 22104) is a one-piece scope mount engineered to secure 1-inch (25.4 mm) maintube riflescopes to airguns and rimfire rifles. Constructed from high-grade anodised aluminium alloy with a matte black finish, this monolithic bridge mount delivers rigid structural alignment and clamping strength across standard grooved receivers. Weighing 134 g (4.7 oz) and featuring a medium overall height of 43 mm (1.7 inches), it maintains scope alignment while resisting the bidirectional recoil forces common to spring-piston platforms.

Key Features

• One-Piece Monolithic Design: Provides consistent ring alignment and rigidity across the entire mounting base compared to standard two-piece setups.
• Reversible Dovetail Clamp: Features an integrated reversible side-clamp plate that fits standard 9–11 mm dovetails and 3/8-inch rimfire rails.
• Integrated Recoil Stop Pin: Includes a retractable recoil stop pin designed to engage receiver arrestor holes and eliminate mount creep.
• Internal Cushion Tape: Factory-installed internal tape lining cushions the scope tube against scratching and prevents optic slippage.

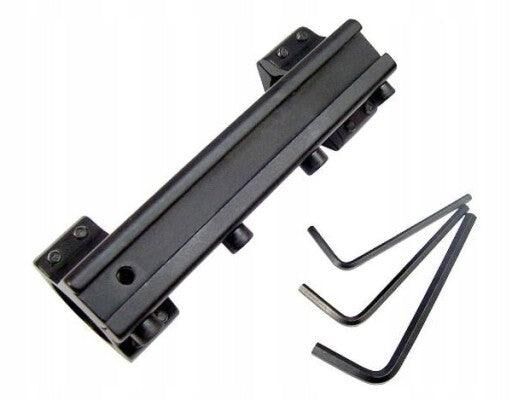

• Quad Base Fastening: Employs four base clamp hex screws (4 mm hex, M5 × 0.8) and double top clamp screws per ring (3 mm hex, M4 × 0.7) for secure optic retention.

Specifications

• Ring Diameter: 1 inch (25.4 mm)
• Mount Configuration: 1-piece base (bridge mount)

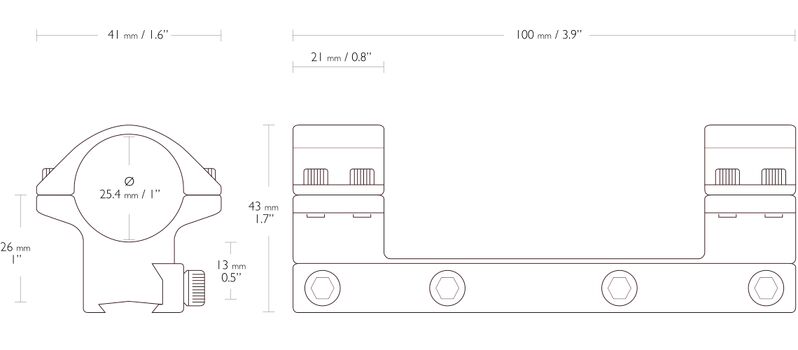

• Height Profile: Medium — 43 mm (1.7 inches) total height
• Weight: 134 g (4.7 oz)
• Rail Compatibility: 9–11 mm and 3/8" dovetail receivers
• Material: High-grade anodised aluminium alloy
• Top Clamp Screws: Double hex screws per ring (3 mm hex, M4 × 0.7 thread)
• Base Clamp Screws: Quad hex screws (4 mm hex, M5 × 0.8 thread)

Who is the Hawke Bridge Mount 9-11mm 1" Dia Med for?

• Spring-piston air rifle hunters and target shooters — Requires the structural alignment of a one-piece bridge mount with an integrated recoil stop pin and four M5 base clamping screws to eliminate optic creep caused by sharp bidirectional recoil.
• Rimfire rifle shooters — Uses the reversible side-clamp plate to mount 1-inch (25.4 mm) tube optics directly to standard 9–11 mm or 3/8-inch receiver dovetails with a total mount height of 43 mm.

Less suitable for: Firearms equipped with Picatinny or Weaver-style rails (which require dedicated Picatinny/Weaver scope rings), optics with 30 mm or 34 mm maintubes (which require 30 mm or 34 mm dedicated mounts), or riflescopes with large 50 mm to 56 mm objective bells that require a high-profile mount for barrel clearance.
