Will the Hawke Tactical 30mm High rings fit my standard rimfire rifle with an 11mm dovetail rail?

No, these rings are specifically designed with an integrated crossbolt for standard Weaver and MIL-STD-1913 Picatinny rails. If you need to mount them on an 11mm or 3/8-inch dovetail rail, you will need to use an adapter base such as the Hawke 22403 Dovetail to Weaver Adaptor.

What size objective lenses are best suited for the High profile (17mm base-to-ring clearance) on this model?

The High profile with its 17mm clearance is specifically engineered to accommodate scopes with large objective lenses ranging from 50mm to 56mm. For smaller objective lenses under 44mm, these rings may place your optic too high and a Medium profile ring would be more appropriate.

How do these rings handle the heavy recoil of a centerfire magnum rifle during outback hunting trips?

The Hawke 24117 mounts feature a robust triple Torx (T15) screw design per ring clamp, delivering 12 screws total across the two-piece set for exceptional surface contact and heavy recoil resistance. Additionally, factory-fitted internal synthetic tape protects your scope tube from scratching and crimping while dampening severe vibrations in the field.

30mm Scope Rings - Hawke 24117

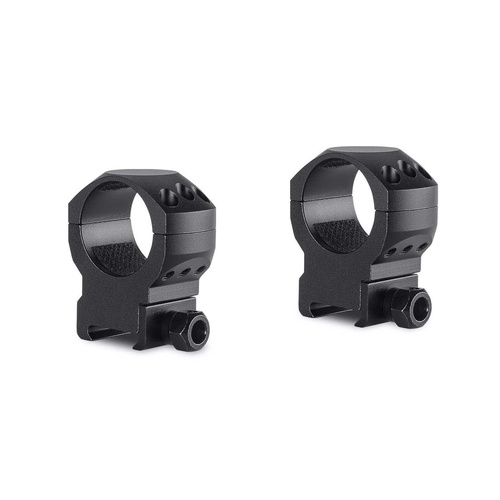

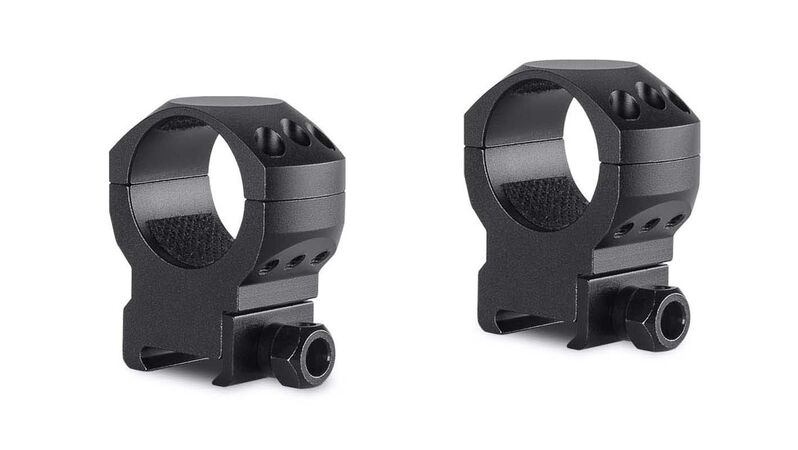

The Hawke Tactical Ring Mounts 30mm 2 Piece Weaver High (Model 24117) provide a rigid, heavy-recoil mounting platform for riflescopes with a 30 mm main tube. Constructed from high-grade CNC-machined aluminium with a matte black anodised finish, this 2-piece set secures directly to standard Weaver bases and MIL-STD-1913 Picatinny rails. With an overall height of 55 mm and a rail-to-scope clearance of 17 mm, these high-profile rings elevate optics to provide proper barrel and action clearance for large-diameter objective lenses.

Triple Torx Cap Clamps: Utilises three T15 Torx screws per side (6 screws per ring / 12 total) to distribute clamping force over a wide surface area and eliminate scope movement under heavy recoil.
Internal Cushion Tape: Integrated synthetic tape lines the inner ring surfaces to prevent scratching, tube crimping, and ring marks while absorbing mechanical vibration.
Weaver and Picatinny Compatibility: Engineered with an integrated crossbolt and heavy-duty hex nut base clamp for mounting onto Weaver and MIL-STD-1913 Picatinny rails.
CNC-Machined Aluminium: Built from solid aluminium alloy for structural strength, bringing the complete two-piece set to a total weight of 153 g.

Specifications

Tube Diameter: 30 mm

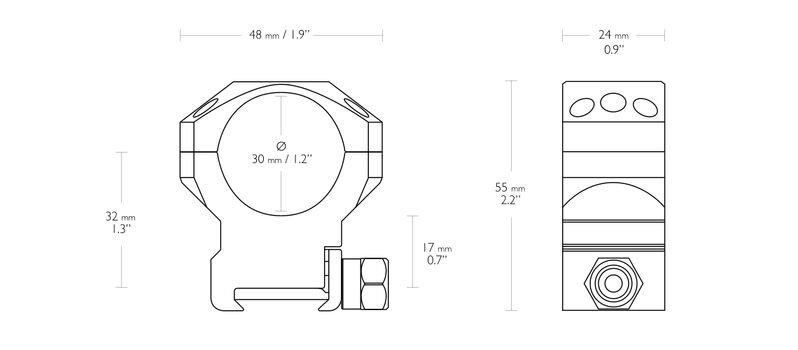

Profile Height: High (17 mm rail-to-bottom-of-scope clearance; 55 mm overall height)
Mounting Interface: Weaver / MIL-STD-1913 Picatinny
Ring Cap Screws: Triple Torx (T15) hardware (6 screws per ring)
Weight: 153 g
Material: CNC-machined aluminium with matte black anodisation

Who is the Hawke Tactical Weaver 30mm High for?

Hunters using heavy-recoil centerfire magnum rifles — requires the reinforced holding power of a 30mm weaver rifle scope ring mount featuring a 12-screw Triple Torx clamp layout and 153 g aluminium construction to stop optic slippage.
Shooters mounting riflescopes with 50mm to 56mm objective lenses — relies on the 17 mm rail-to-scope clearance of this high-profile 30mm weaver rifle scope ring mount to maintain proper barrel and receiver clearance for large-bell optics.

Less suitable for: Firearm receivers equipped with 9mm to 11mm or 3/8-inch dovetail rails (which require dedicated dovetail rings or a base conversion adapter), riflescopes built on 1-inch or 34mm main tubes, or optics with small objective bells under 32mm where a medium-profile ring set is required to maintain a proper cheek weld.

SKU	HWK39838LP
Model #	24117
Brand	Hawke
Shipping Weight	1.0000kg
