Is the Tactical BDC 5.56 reticle accurate when mounted on calibres other than .223 Rem?

While the etched BDC reticle subtensions are specifically calibrated around standard 5.56 NATO and .223 Rem ballistic trajectories at 8x magnification, the scope's 30 mm chassis is fully shockproof and rated for all calibres. You can safely mount it on heavier hunting rifles like a .308 Win, though you will need to map your own drop data if the bullet weights and velocities differ significantly from standard 5.56 loads.

How does the fixed 91-metre parallax perform during close-quarters scrub hunting?

The Vantage HD 30 IR 1-8x24 features a fixed parallax set at 91 metres (100 yards), which provides an ideal compromise for rapid target acquisition in thick timber or outback scrub. At true 1x magnification, parallax error at very close ranges (5 to 25 metres) is negligible, allowing for instant both-eyes-open shooting without losing your zero.

What mounting hardware is recommended for attaching this scope to an AR-style platform in Australia?

This optic requires standard 30 mm scope rings or mounts to fit your firearm. For flat-top AR and modular tactical platforms common in Australian dynamic shooting sports, a one-piece cantilever mount is strongly recommended to achieve proper eye relief and a secure interface across the rail.

Does this optic require any Australian electrical safety certifications or RCM compliance?

No. This is a purely optical sighting device that features an unpowered glass-etched reticle and uses a low-voltage passive DC illumination circuit powered by a single CR2032 coin cell battery. It does not connect to 240V mains power and is exempt from Australian RCM or SAA electrical compliance marks.

1-8x24 Rifle Scope - Hawke 14312 Vantage

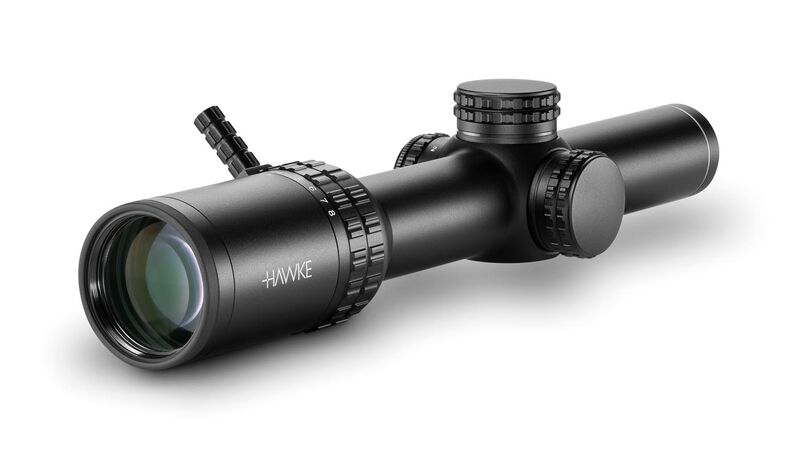

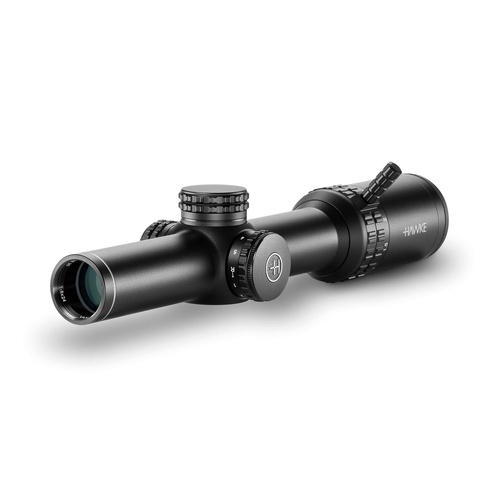

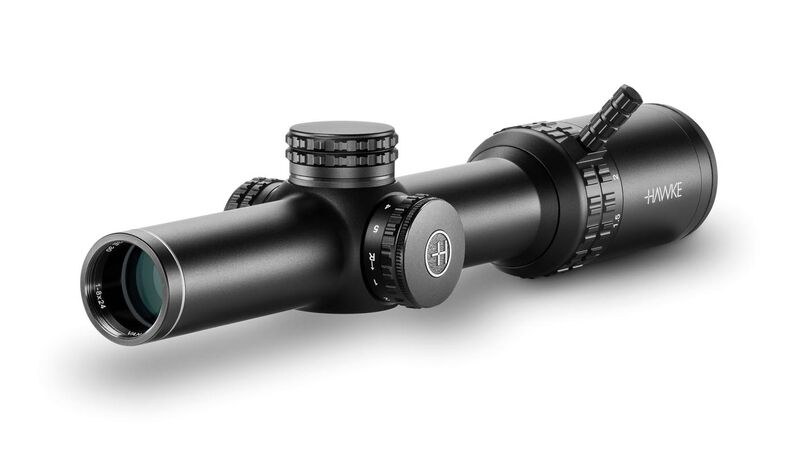

The Hawke Vantage HD 30 WA IR 1-8x24 (Tactical BDC 5.56 Reticle) is a low-power variable optic (LPVO) engineered for rapid target acquisition from close range out to mid-range distances. Built on a 30 mm single-piece mono-tube chassis, it features an 11-layer fully multi-coated optical system with a 24 mm objective lens that delivers a 115 to 14.4 ft field of view at 100 yards across its 1–8x magnification range. The glass-etched Tactical BDC 5.56 reticle sits in the second focal plane and features a 5-level red and green stepped illumination rheostat powered by a single CR2032 battery. Nitrogen-purged, waterproof, and shockproof across all calibres, this optic weighs 468 g and measures 267 mm in length.

Key Features

11-Layer Fully Multi-Coated Optics: Optical system engineered for optimal light transmission and edge-to-edge contrast.

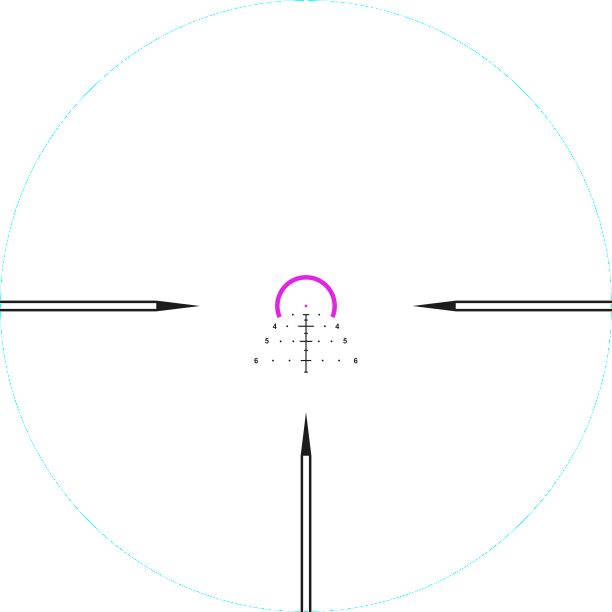

Glass-Etched Tactical BDC 5.56 Reticle: Second focal plane horseshoe-and-dot design calibrated for .223 Rem and 5.56 NATO ballistic holdovers at 8x magnification.
Dual-Colour Illumination: 5-stage red and green stepped rheostat system for varying ambient lighting conditions.
Wide-Angle Field of View: Offers 38.3 m at 100 m on 1x magnification down to 4.8 m at 100 m on 8x magnification.

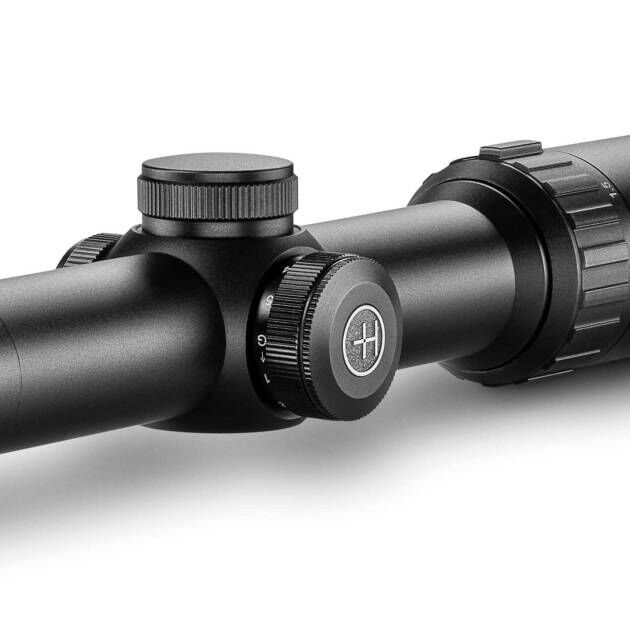

Capped Low-Profile Turrets: Zero-resettable turrets delivering 1/2 MOA click values across 210 MOA of total elevation and windage adjustment travel.
Rapid Magnification Control: Includes a fast-focus ocular bell and a removable zoom throw lever for quick adjustments while wearing gloves.
Rugged Housing: 30 mm single-piece chassis, nitrogen-purged for water and fog resistance, with 97 mm eye relief and a fixed 91 m (100 yd) parallax.

Specifications

Magnification: 1–8x
Objective Lens Diameter: 24 mm
Main Tube Diameter: 30 mm mono-tube
Reticle: Tactical BDC 5.56 (Second Focal Plane)
Illumination: 5 levels (Red / Green), CR2032 battery
Adjustment Click Value: 1/2 MOA
Total Adjustment Travel: 210 MOA (Elevation & Windage)
Field of View: 38.3 – 4.8 m @ 100 m (115 – 14.4 ft @ 100 yd)
Eye Relief: 97 mm (3.8 in)
Exit Pupil: 24 mm – 3 mm
Parallax: Fixed at 91 m (100 yd)

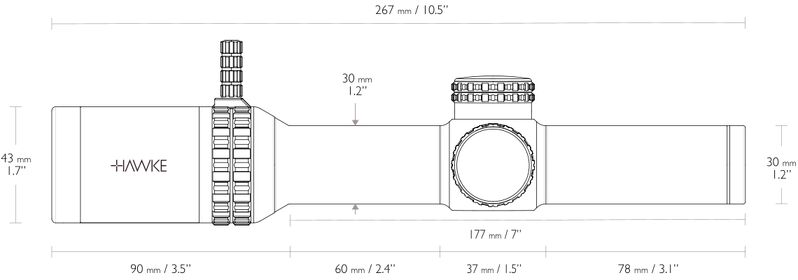

Overall Length: 267 mm (10.5 in)
Weight: 468 g (16.5 oz)

Who is the Hawke Vantage HD 30 WA IR 1-8x24 for?

Driven game and pig hunters — True 1x magnification offering a wide 38.3 m field of view at 100 m allows this low-power variable optic to acquire fast-moving game instantly in thick scrub, while the lightweight 468 g mono-tube minimises rifle carry fatigue.
Practical dynamic rifle and 3-Gun sport shooters — The 1-8x magnification range coupled with 1/2 MOA turret adjustments and an illuminated 5.56 BDC reticle enables this riflescope to transition smoothly from point-blank targets to steel plates out to 600 m.

Less suitable for: Dedicated precision or F-Class shooting beyond 600 m due to its fixed 91 m parallax and 8x maximum zoom; shooters engaging small targets at extreme distances require a high-magnification riflescope (such as a 5-25x system) equipped with adjustable side-focus parallax and a first focal plane reticle.

SKU	HWK40021LP
Model #	14312
Brand	Hawke
Shipping Weight	1.0000kg
