What is the optimal shooting distance for the Turkey Dot reticle on this scope?

The Hawke Vantage IR 1-4x20 features a fixed parallax set at 50 yards (approx. 46 metres) and reticle sub-tensions specifically calibrated for 4x magnification at that range. It is ideal for point-blank encounters out to roughly 70-100 metres. For precision engagements consistently beyond 100-150 metres, a higher-magnification optic with adjustable parallax is recommended.

Will the 1-inch tube and chassis handle heavy recoil from a 12-gauge shotgun or large centrefire calibre?

Yes, Hawke rates this chassis as 'All Calibre Rated.' It is engineered with a durable, single-piece aluminium mono-tube designed to withstand the heavy recoil typical of 12-gauge magnum shotgun loads as well as standard bush rifles.

What scope rings or mounting bases do I need to attach this to my rifle or shotgun?

This scope features a 1-inch tube diameter and requires standard 1-inch scope rings. Depending on your firearm's rail type, compatible options available in our range include the Hawke 24101 Tactical Ring Mounts for dovetail rails, or adapters like the Hawke 22403 Dovetail to Weaver Adaptor.

Does this illuminated reticle require any special electrical compliance or charging in Australia?

No, the illumination is powered entirely by a single standalone CR2032 3V coin cell battery featuring dual-colour stepped brightness levels. Because it contains only a low-voltage passive circuit with no mains power connection or radio transmitters, it is exempt from SAA approval and mandatory RCM markings.

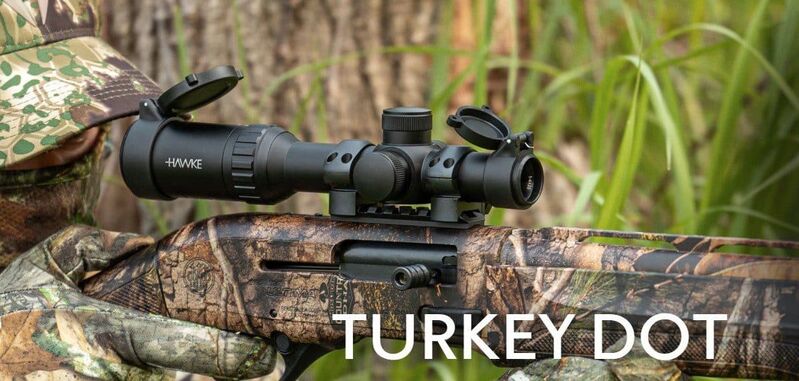

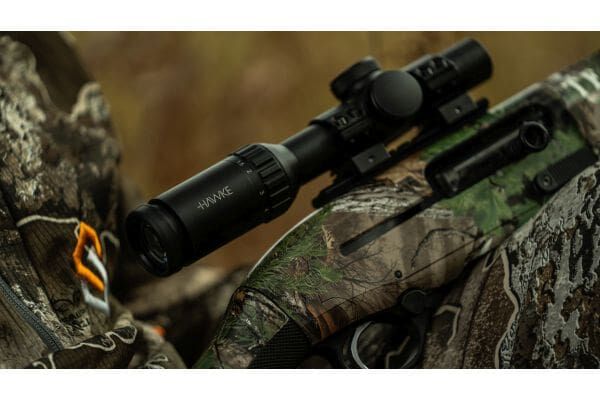

Turkey Riflescope - Hawke Vantage 14205

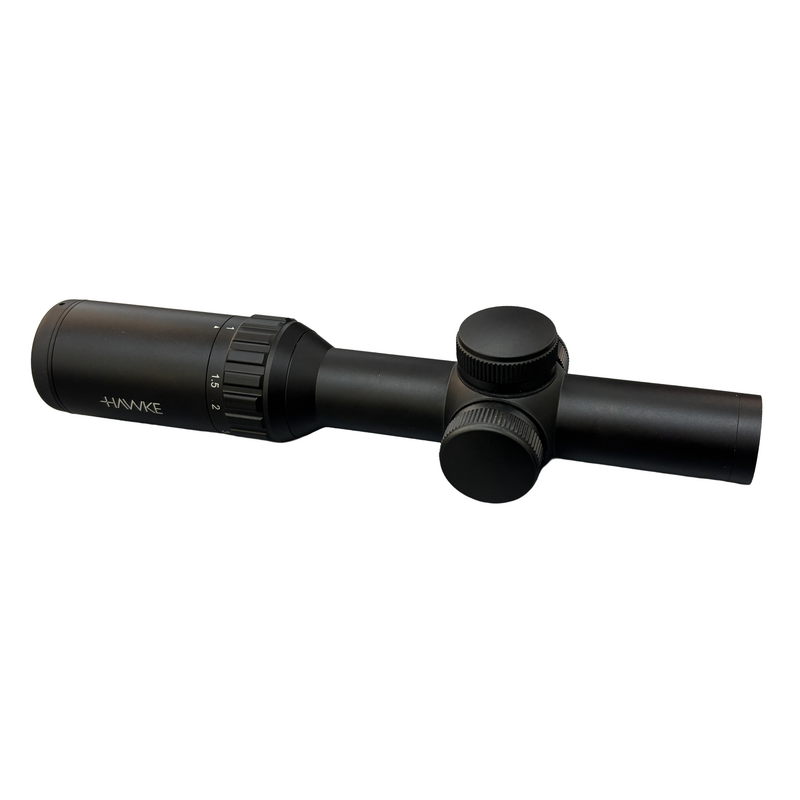

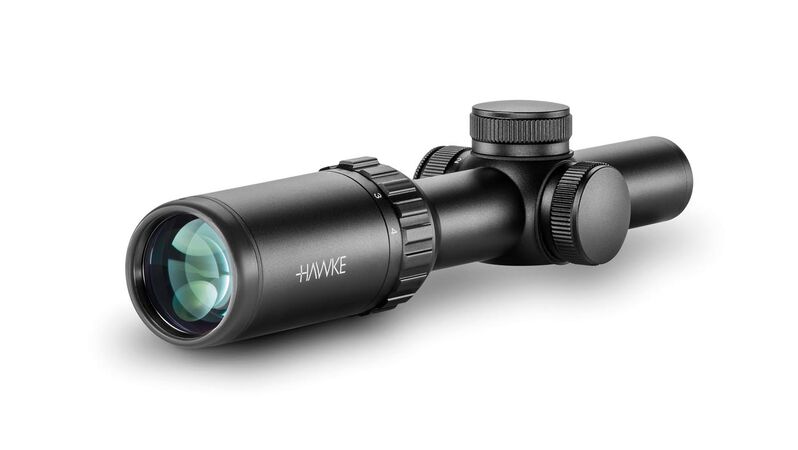

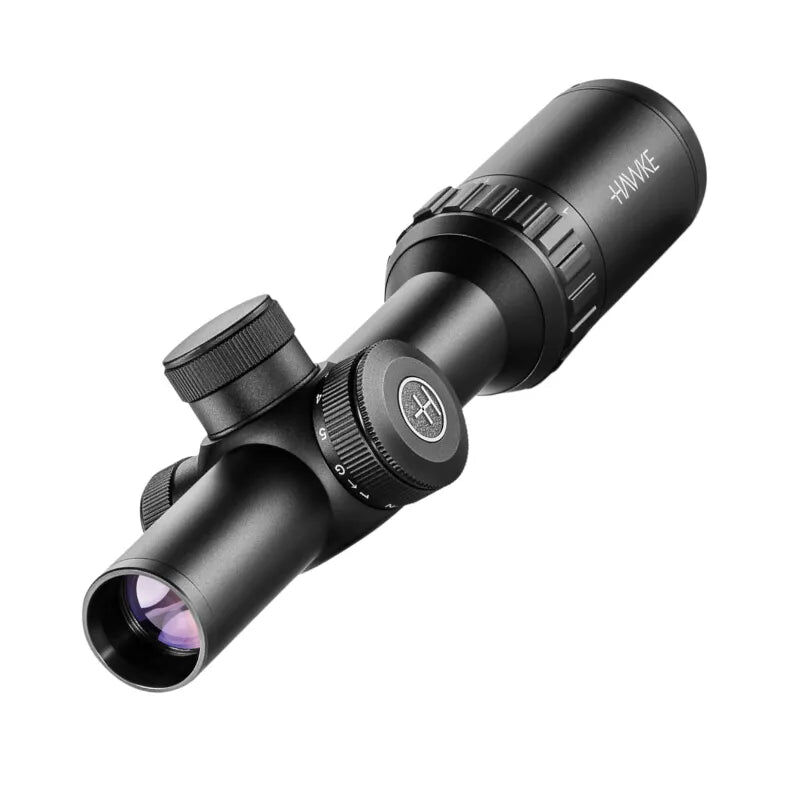

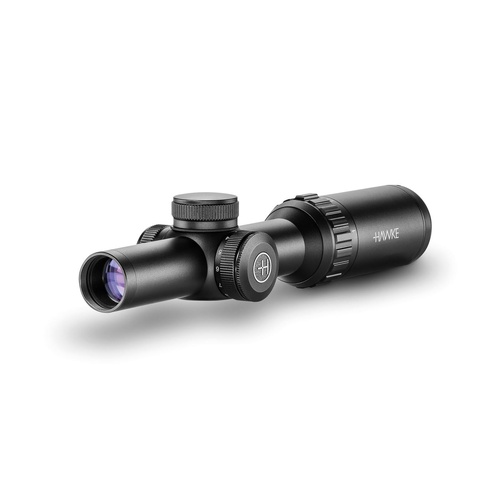

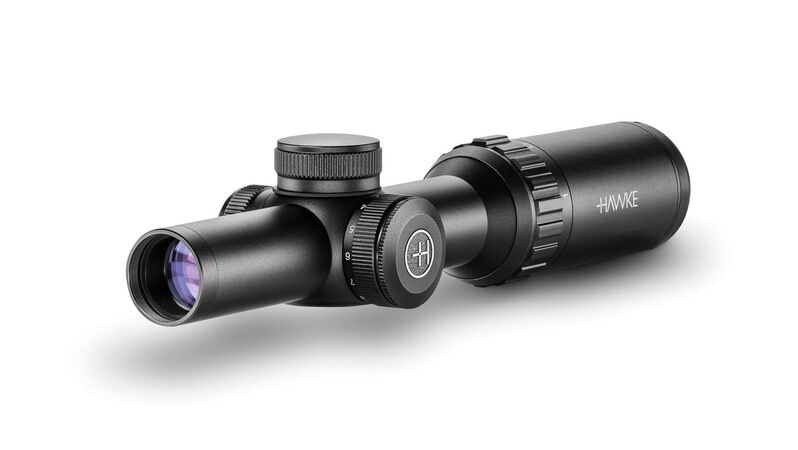

The Hawke Vantage IR 1-4x20 Turkey Dot IR (Model 14205) is a low-power variable optic designed for fast-handling shotguns and bush rifles. Built on a 1-inch (25.4 mm) mono-tube chassis, it features 11-layer fully multi-coated System H2 optics paired with a specialised second focal plane (SFP) Turkey Dot IR glass-etched reticle. The optical system delivers a true 1x setting for rapid both-eyes-open target acquisition, scaling up to 4x for identified shot placement out to medium distances. The reticle integrates an illuminated 2 MOA centre dot framed by an outer horseshoe bracket calibrated to span 10 inches at 50 yards on 4x magnification, illuminated via a stepped rheostat offering 5 levels of red and 5 levels of green powered by an included CR2032 3V coin cell.

Key Features

Turkey Dot IR Reticle: Features an illuminated 2 MOA centre dot and horseshoe framing bracket with floating stadia at 3, 6, and 9 o'clock for rapid shot alignment.
Compact Optical System: 20 mm objective lens paired with 11-layer fully multi-coated lenses to maximise light transmission and clarity.
Dual-Colour Illumination: Red and green illumination with 5 brightness settings per colour, powered by a single CR2032 battery.
Rugged Turrets: Capped, low-profile, resettable 1/2 MOA turrets offering up to 110 MOA total elevation and windage adjustment travel.
All-Calibre Durability: Rated shockproof for heavy-recoil shotgun and centrefire calibres, alongside nitrogen purging for waterproof and fog-proof performance.
Fixed Parallax: Factory set at 46 metres (50 yards) for optimal close-range focus and parallax alignment.

Specifications

Model Number: 14205
Magnification: 1–4x
Objective Lens Diameter: 20 mm
Main Tube Diameter: 1 inch (25.4 mm)
Reticle: Turkey Dot IR (Second Focal Plane)
Eye Relief: 101 mm (4.0 in)
Field of View: 33.1 m – 8.3 m at 100 m (99.3 – 24.8 ft at 100 yds)
Exit Pupil: 20 mm – 5 mm
Turret Adjustment Click Value: 1/2 MOA
Maximum Adjustment Range: 110 MOA Elevation / 110 MOA Windage

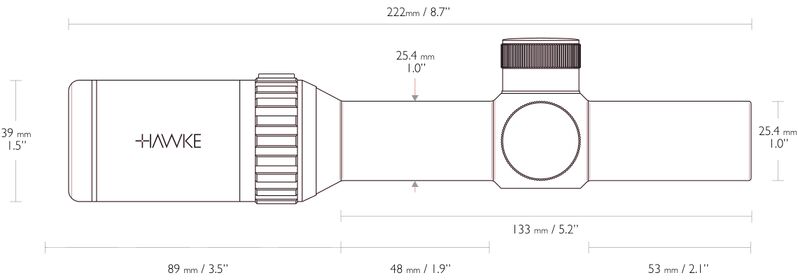

Length: 222 mm (8.7 in)
Weight: 333 g (11.7 oz)
Power Source: 1x CR2032 3V battery
Mount Compatibility: Standard 1-inch rings

Who is the Hawke Vantage IR 1-4x20 Turkey Dot IR for?

Shotgun turkey hunters shooting inside 50 yards — provides an illuminated reticle with a horseshoe bracket calibrated to span 10 inches at 50 yards on 4x magnification, combined with a 101 mm (4.0 in) eye relief that protects against heavy 12-gauge recoil.
Scrub hunters targeting wild pig and deer in thick cover — features true 1x magnification on a lightweight 333 g (11.7 oz) chassis, enabling rapid, both-eyes-open reflex shooting through a 20 mm objective lens at close range.

Less suitable for: Long-range target engagement beyond 100 to 150 metres, where higher-magnification riflescopes (such as 3-9x40 or 4-12x) with adjustable parallax are better suited for precise shot placement.

SKU	HWK39815LP
Model #	14205
Brand	Hawke
Shipping Weight	1.0000kg
