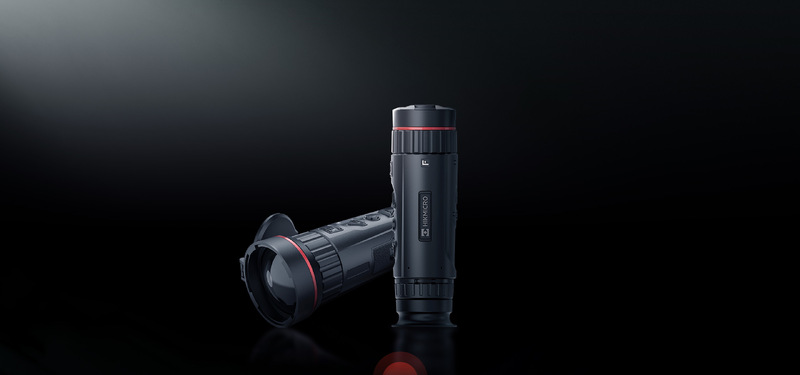

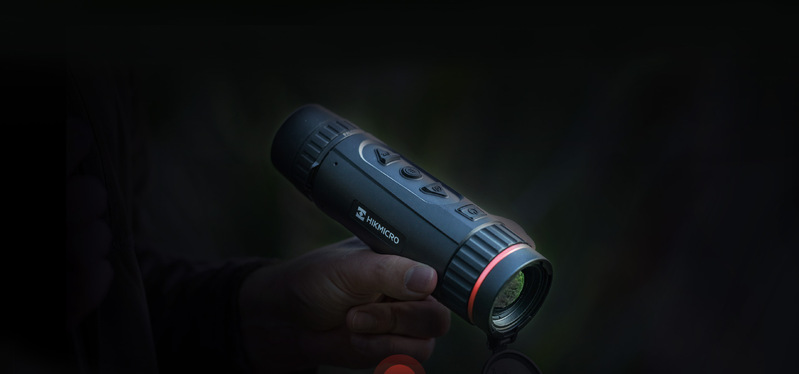

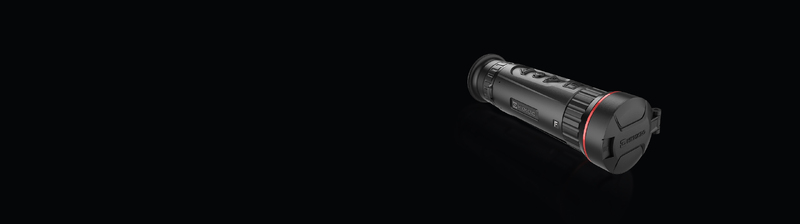

The VOx Uncooled Focal Plane Array thermal camera boasts a high-resolution 640x512 sensor with a 50Hz refresh rate, ensuring smooth and detailed thermal imaging. With a 12μm pixel pitch and a wavelength range of 8μm to 14μm, it provides exceptional sensitivity and accuracy, capable of detecting temperature differences as small as 20 mK. The camera features a 25mm F1.0 lens and a wide field of view of 17.5° x 14.0° (30.8m x 24.6m at 100m), allowing users to capture expansive scenes with impressive detail. Its ultra-clear 1024x768 OLED display enhances image quality, while the continuous zoom feature (2.5x - 11.2x) enables precise adjustments for optimal observation. The camera supports multiple color palettes, including Black Hot, White Hot, Red Hot, and Fusion, and offers both auto and manual calibration for accurate thermal imaging in all conditions.

KEY FEATURES

• Sensor Resolution: 640 x 512
• Refresh Rate: 50 Hz
• Pixel Pitch: 12 μm
• Wavelength Range: 8 μm to 14 μm
• Thermal Sensitivity: Less than 20 mK (@ 25°C), F#=1.0
• Lens: 25 mm, F1.0
• Detection Range: 1200 m
• Focus: Focus Ring
• Field of View (FOV): 17.5° x 14.0° (30.8m x 24.6m @ 100m)
• Minimum Focusing Distance: 2.5 m
• Zoom: 1.4x - 11.2x (8x), Continuous Zooming Supported
• Display: 1024 x 768, 0.39 inch, OLED
• Image Modes: Black Hot, White Hot, Red Hot, Fusion
• Calibration: Auto, Manual, External Correction
• Diopter Adjustment: -5D to +3D

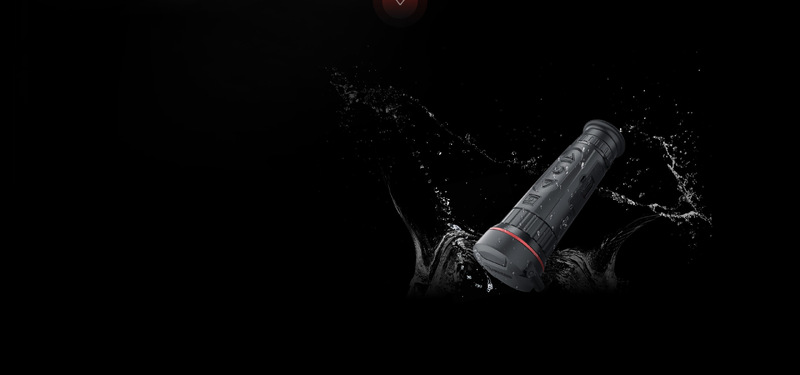

• Water Resistance: IP67
• Weight: 450 g without Battery
• Dimensions: 193.8 mm x 66.9 mm x 58.3 mm
• Operating Temperature: -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
• Memory: Built-in Memory Module (64 GB)
• Power Supply: Replaceable and Rechargeable Li-ion Battery
• Battery Life: ≥5 hours (25°C, with Hotspot Off)
• Charging Interface: 5V DC, 2A
• External Power Supply: Supported
