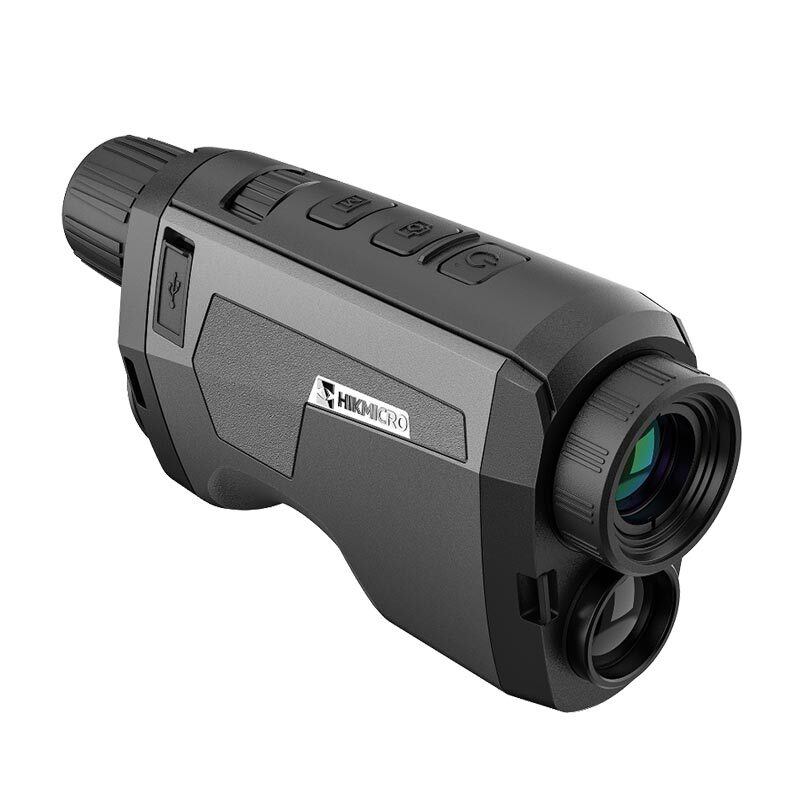

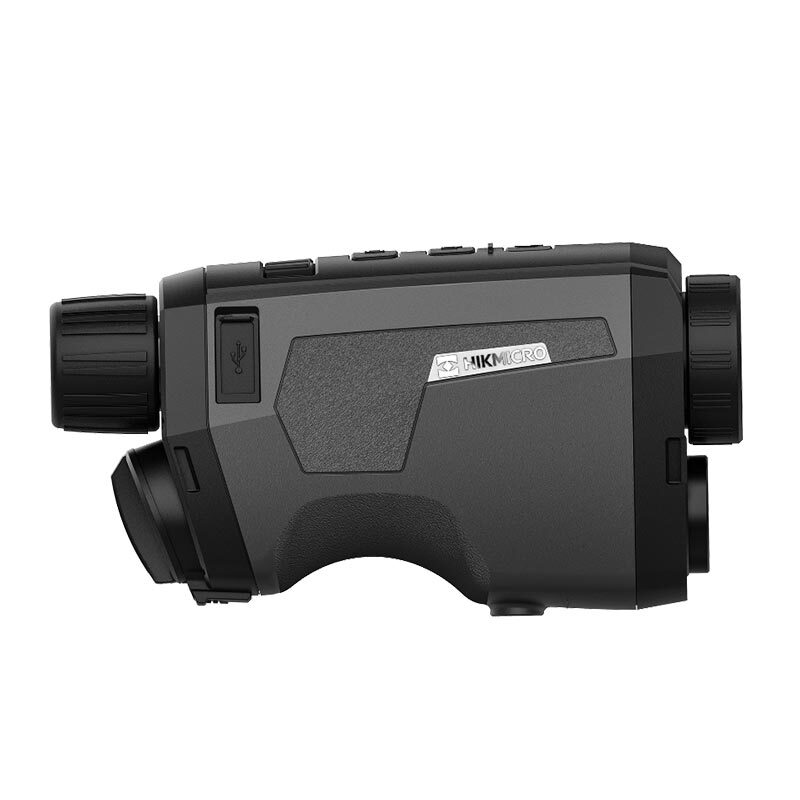

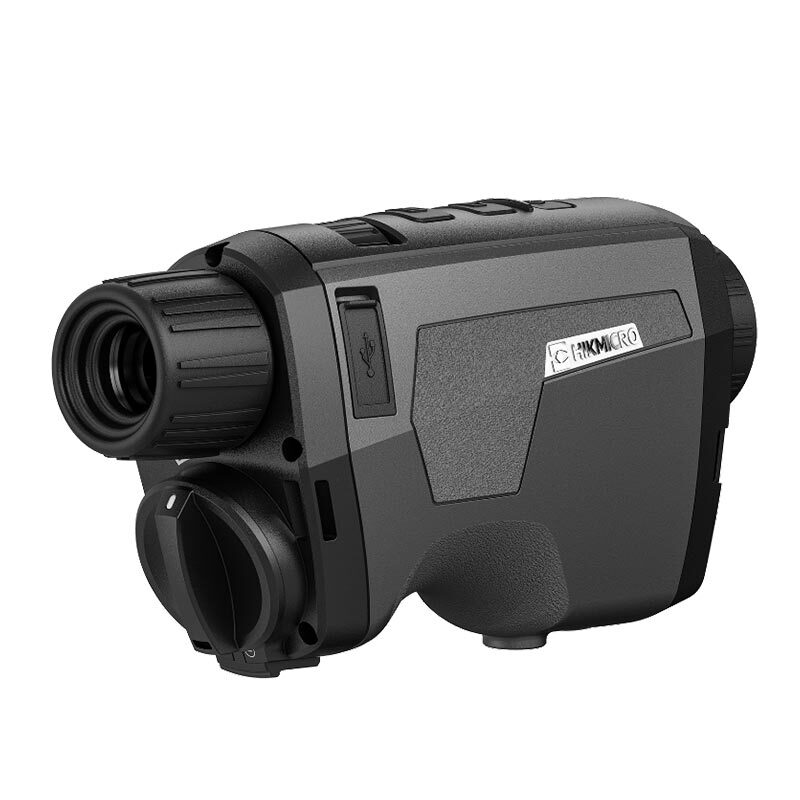

The Gryphon GH35 uses a quality 35mm f/1 lens to capture thermal radiation. The field of view (FOV) on this thermal monocular reads 7.5 x 5.7 degrees. It's equipped with 8x digital zoom to capture additional details.

Inside the housing of the Gryphon GH35, you'll find the (uncooled, 12µm) 384 by 288px thermal imaging sensor with a refresh rate of 50Hz. The NETD (Noise Equivalent Temperature Difference) of this thermal monocular is <35mK and it's operating between the 8µm and 14µm wavelengths.

The dimensions of this thermal monocular are 87 x 51 x 167mm (length/width/height) and weighs in at 480g. This device is rated IP67. It can withstand dust, shocks, water (splashes) and submersion underwater. Operating temperatures range between -30°C and 55°C.

The Gryphon GH35 is suitable for surveillance missions, hunting and law enforcement.

KEY FEATURES

• Fusion image
• 1/2” Progressive Scan CMOS
• 12 µm Thermal Sensor
• Quick replaceable battery
• Control-wheel navigation
