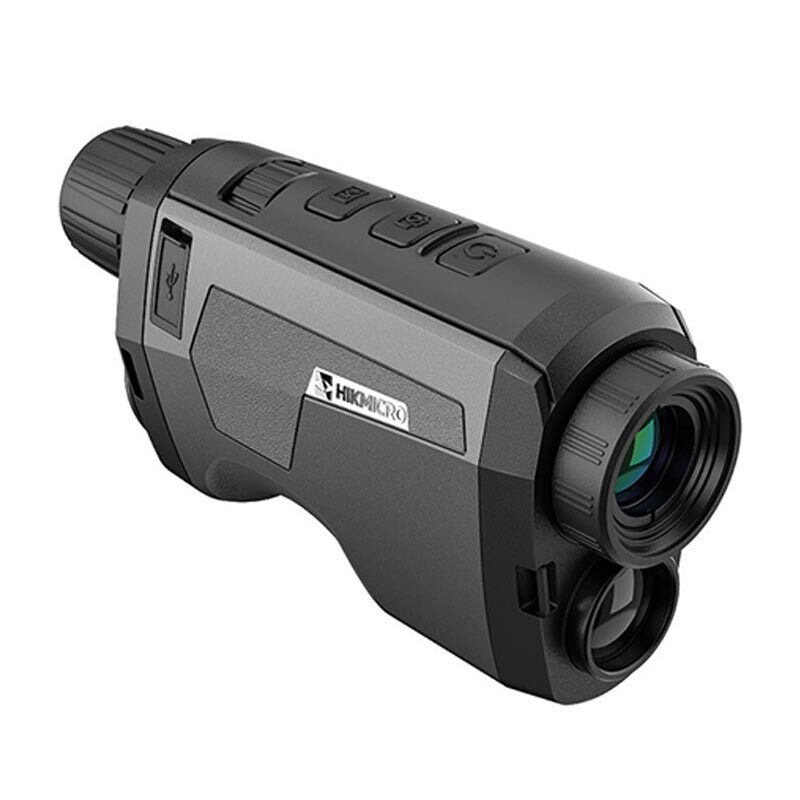

The Hikmicro Gryphon Pro Fusion GQ35 Thermal & Optical Monocular can be set to Optical, Thermal, or Fusion model which uses bi-spectrum, fusion technology to combine thermal and visible-light images in order to create a detailed picture. The Hikmicro Gryphon Pro Fusion GQ35 Thermal & Optical Monocular’s highly accurate thermal sensor captures slight temperature differences even in harsh weather conditions, while an integrated IR torch ensures that the high-resolution optical sensor can take detailed pictures during the day and night. Using the 2x optical magnification and 8x digital magnification you can zoom in on details throughout the field of view. The Hikmicro Gryphon Pro Fusion GQ35 Thermal & Optical Monocular also offers four selectable thermal colour palettes.

KEY FEATURES

Thermal Module

• Image Sensor VOx Uncooled Focal Plane Arrays
• Max. Resolution 640 × 512
• Frame Rate 50 Hz
• Pixel Interval 12 μm
• Response Waveband 8 μm to 14 μm
• NETD <35 mK (25°C, F# = 1.0)
• Lens (Focal Length) 35 mm
• Detection Range 1800 m

Focus Mode Manual

• Field of View 10.97° × 8.82° (H × V)
• Min. Focusing Distance 3 m
• Aperture F1.0
• Magnification 2.0
• Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×
• Optical Module
• Image Sensor 1/2” Progressive Scan CMOS
• Focal Length 22 mm
• Wavelength 400 nm to 1000 nm
• Max. Resolution 1920 × 1080
• Min. Illumination 0.001 Lux F1.0
