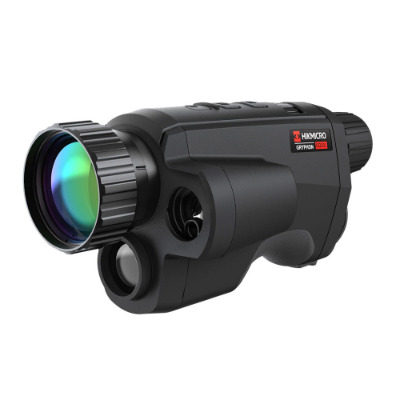

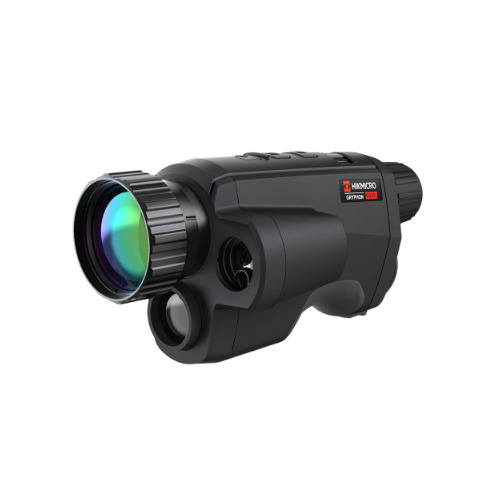

THE HIKMICRO GRYPHON GQ50L handheld thermal monocular camera is equipped with a 640 × 512 infrared detector, a 1920 × 1080 low illumination optical detector and a 1024 × 768 OLED display. It supports functions of observation, Wi-Fi hot spot, hot tracking, bi-spectrum image fusion, laser distance measurement, and so on. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, narcotic enforcement, anti-smuggling, tracing and arresting, hiking, and travel, etc.

KEY FEATURES

• 640*512 resolution, high sensitivity detector
• 50mm lens
• 1920*768 resolution, 0.39-inch OLED display
• Thermal, optical and fusion modes
• Precision laser range finder

Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 640 × 512

Frame Rate: 50 Hz

Pixel Interval: 12 μm

Response Waveband: 8 μm to 14 μm

NETD: <35 mK (@25 °C, F# = 1.2)

Lens (Focal Length): 50 mm

Detection Range: 2600 m

Focus Mode： Manual

Field of View： 8.78° × 7.03° (H × V)

Min. Focusing Distance： 5 m

Aperture：F1.2

Magnification：2.9

Digital Zoom：1 ×, 2 ×, 4 ×, 8 ×

Optical Module

Image Sensor：1/2” Progressive Scan CMOS

Focal Length：22 mm

Wavelength：400 nm to 1000 nm

Max. Resolution： 1920 × 1080
