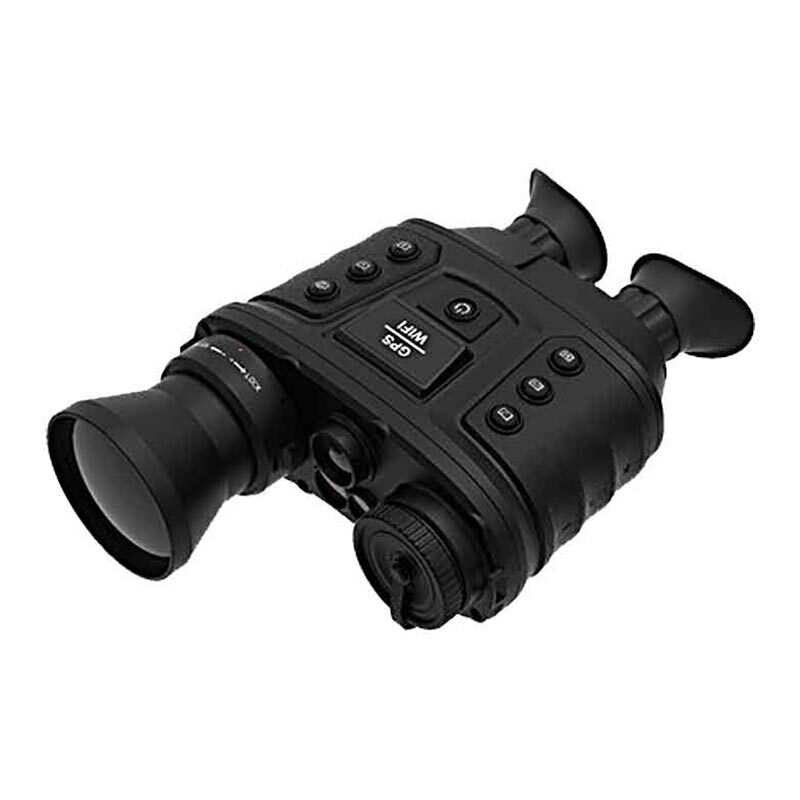

High sensitivity thermal module with 384 x 288 resolution

NETD < 40 mk (25° C, F#=1.0)

Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR

High-quality optical module with 1280 x 960 resolution

Ultra-low illumination (optical channel), B/W: 0.001 lux (F1.0, AGC On)

Bi-spectrum image fusion and object highlighting (detail enhancement and target recognition)

Video recording, replay, snapshot, and search (users can review event on device)

Wi-Fi hot spot

Supports Eye Safety Laser (Laser-distance detection up to 3 km with accuracy up to 0.75 m)

Built-in Laser-distance detection module, compass, and GPS module Supports self-positioning and target positioning

Digital Magnetic Compass and Inclination Sensor

KEY FEATURES

Thermal Module

• NETD< 40mk (@25°C,F#=1.0)
• Field Of View6.23° × 4.98° (H × V)
• aperture 1.4
• Pixel Pitch17μm
• Response Waveband8μm to 14μm
• MRAD (IFOV)0.17
• Digital Zoom4×
• Max. Resolution640 × 512
• Lens (Focal Length)100mm Electric focus

Image Display

• Thermal/Optical ModeThermal view, B/W optical view, image fusion view are selectable
• Image FusionColor fusion, B/W fusion
• Monitor0.39-inch, OLED, 1024 ×768
• PalettesBlack hot, white-hot

Optical Module

• Max. Resolution1920 × 1080 25fps
• Image Sensor1/1.8'' Progressive Scan CMOS
• Min. IlluminationB/W: 0.001 lux (F1.0, AGC On)
• Lens (Focal Length)22 mm
• Image Enhancement3D DNR, Adaptive AGC

Smart

• Laser-Distance DetectionUp to 3 km
• Hot tracks
• Object highlights
• Automatic BacklightThe OLED backlight automatically turns off if no human eyes are detected.

System

• Measure DistanceMax. 3km
• Accuracy0.75m
• Nominal Wavelength1550 nm (class1)
• Head Accuracy0.2 °(RMS)
• Record video on-board video recording
• snapshot-board image capturing
