100-240VAC (World Voltage) / 12VDC / 5VDC input independent channel 2 cell lithium ion (LiIon) / lithium iron phosphate (LiFePO4) battery charger.

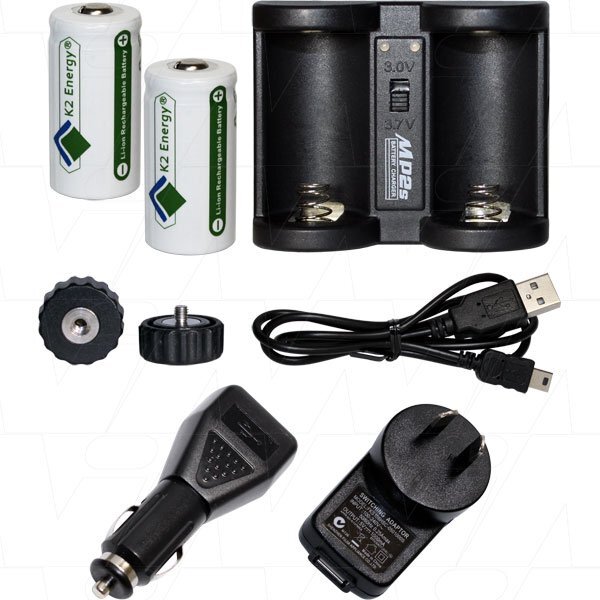

This kit includes 2 x K2LFP123A LiFePO4 cells.

• Comes with SAA, MEPS approved 100-240VAC (world voltage) to 5VDC input power adaptor, 12VDC to 5VDC input cigarette light connection car plug and 5VDC input USB cable.
• Two cell charger for charging one or two 3.6V/3.7V lithium ion cells and 3.0V/3.2V lithium iron phosphate in sizes 16340, 15270, 18350.
• To view the complete range of torch and laser sight batteries we have available please click this link.
• 2 x screw in spacers (adaptors) supplied for charging shorter cells.
• Manual switch to select appropriate voltage for charging either 3.6V/3.7V lithium ion cells or 3.0V/3.2V lithium iron phosphate cells. N.B. Switch must be in the correct position for the cell type to be charged. Failure to do so could lead to damage of the equipment & possible cell explosion.
• 0.4A charging current for charging single low capacity battery, 0.25A charging current for charging two batteries.
• 0V battery activation function.
• LED status indicators for each charging channel.
• Algorithm based CC/CV charging system with reverse polarity & short circuit protection.

KEY FEATURES

Constant charge current:

• One slot – 400mA 20mA
• Two slots – 250mA 20mA
• Termination current: 40mA 10%
