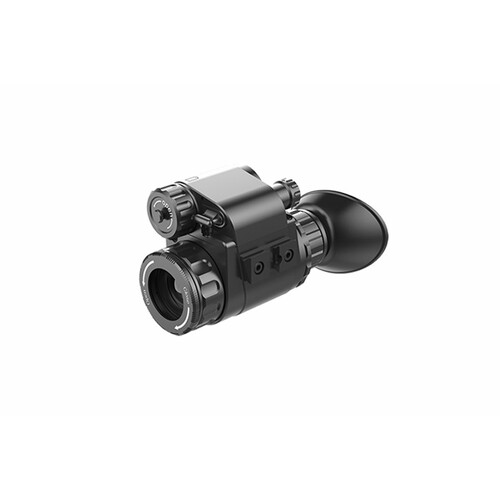

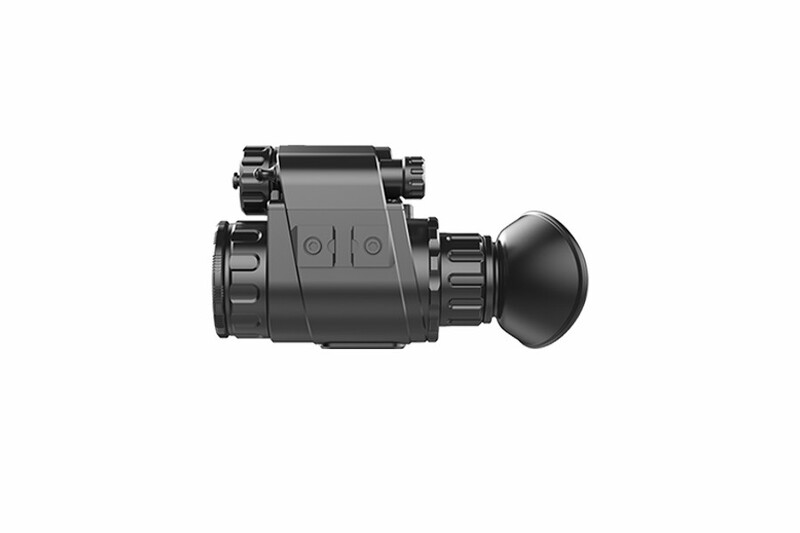

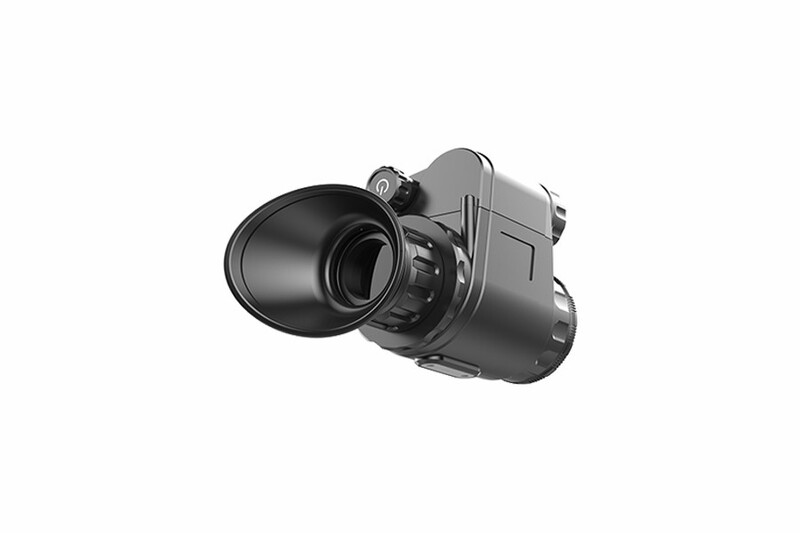

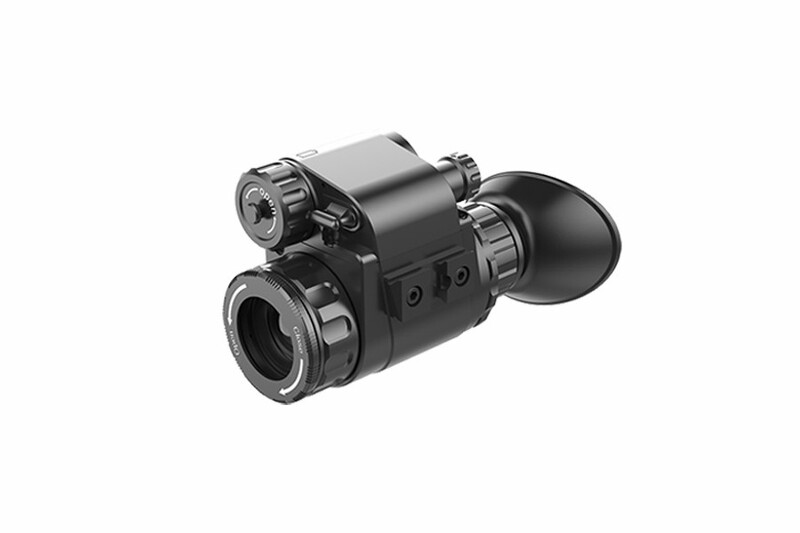

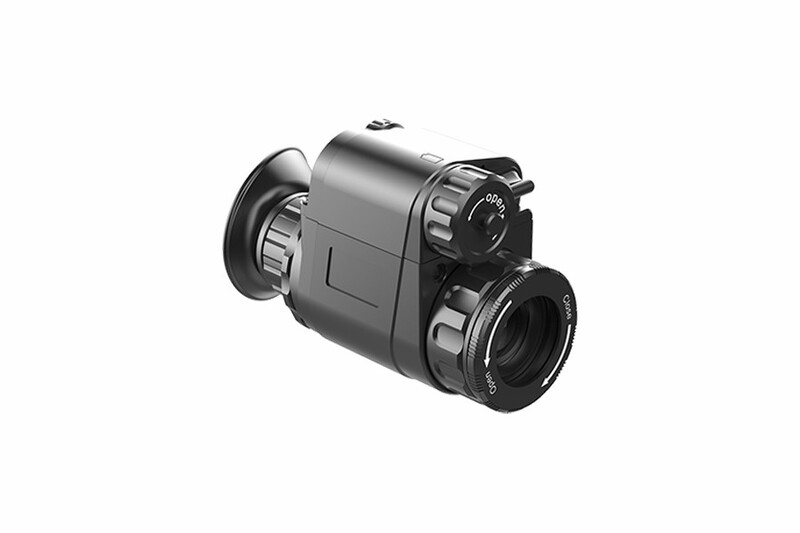

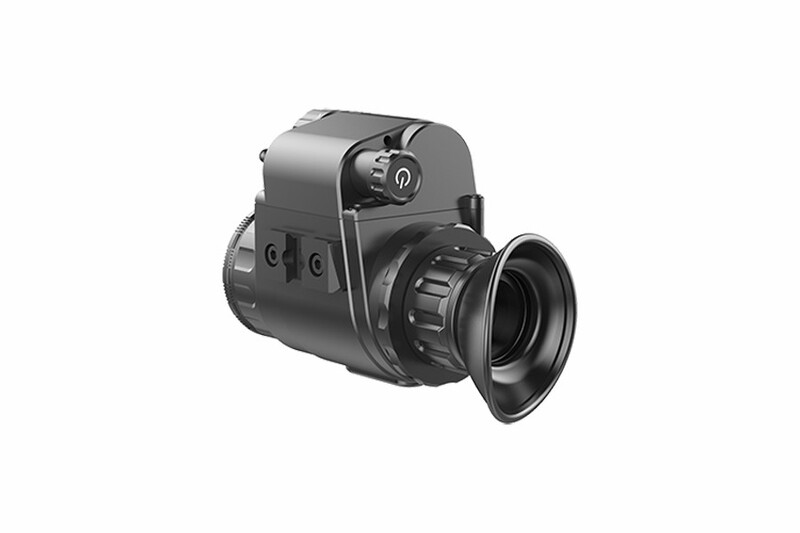

The Mini ML19 packs a quality 19mm lens to capture thermal radiation. The field of view (FOV) on this thermal monocular reads 19.5 x 14.7 degrees. It's equipped with a 4x digital zoom to capture additional details. The eye relief distance is 15mm and the exit pupil diameter is 5mm.

Inside the housing of the Mini ML19 you'll find the (uncooled, 17µm) 384 by 288px sensor with a refresh rate of 50Hz. The NETD (Noise Equivalent Temperature Difference) of this thermal monocular is <50mK.

The dimensions of this thermal monocular are 121 x 70 x 45mm (length/width/height) and weighs in at 225g. It can withstand dust, shocks and water (splashes).

The Mini ML19 can be used for surveillance missions, hunting, law enforcement and military operations.


KEY FEATURES

  • Available with 12µm / 17µm pixel Pitch
  • HD 1280×960 display
  • Realtime 50Hz refresh rate
  • Flexible Mounting Options
  • Variety of Power Supply Options
  • Stadiametric Rangefinder
  • Inclinometer and E-Compass
SKU IR125523LP
Model # ML19
Brand Infiray
Shipping Weight 1.0000kg
