Will the LaRue MBT-2S fit my legacy large-pin Colt AR-15 lower receiver?

No, the LaRue MBT-2S is strictly designed for standard mil-spec lower receivers utilizing .154-inch small pins. It is incompatible with legacy large-pin .169-inch Colt lower receivers and cannot be installed without modifying or replacing the lower.

What is the difference between the standard and heavy springs included with the trigger?

The standard spring configuration yields a total pull weight of 4.5 lbs, split evenly with a 2.5 lb first-stage take-up and a crisp 2.0 lb second-stage break. If you prefer a heavier feel for duty use, field hunting in cold weather, or personal preference, installing the included heavy spring increases the total pull weight to approximately 6.0 lbs.

Is this trigger compatible with Australian compliant AR-pattern straight-pull or bolt-action rifles?

Yes, the MBT-2S can be fitted to compliant AR-pattern platforms in Australia, such as Category B straight-pull, pump-action, or bolt-action rifles, provided they utilize standard mil-spec small-pin AR fire control groups. As a purely mechanical firearm component, electrical compliance certifications like SAA/RCM and 240V ratings are not applicable.

What material is the LaRue MBT-2S made from and how does it affect durability in the field?

The hammer and trigger components are precision CNC-machined from solid S7 tool steel, renowned for its exceptional impact resistance and shock absorption. This rugged construction ensures a hyper-consistent break and long-term durability, even under harsh outback hunting conditions and high-round-count competition shooting.

AR15 2-Stage Trigger - LaRue MBT-2S

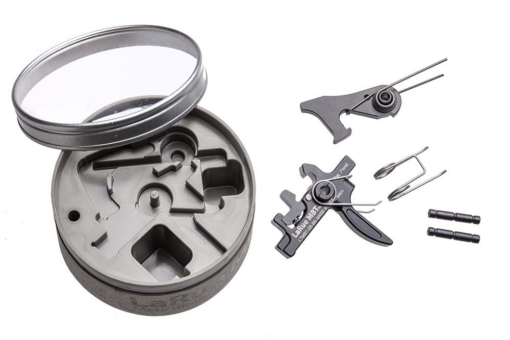

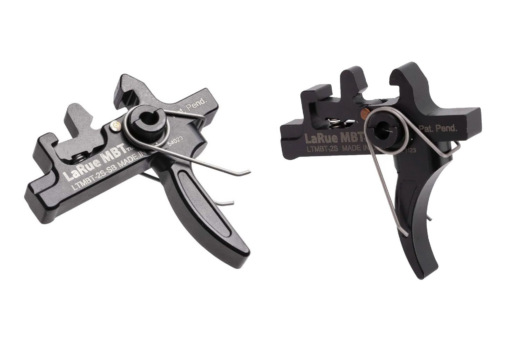

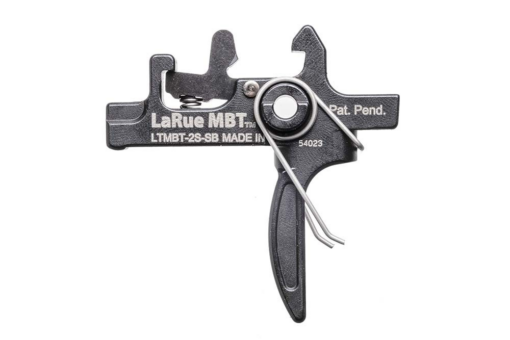

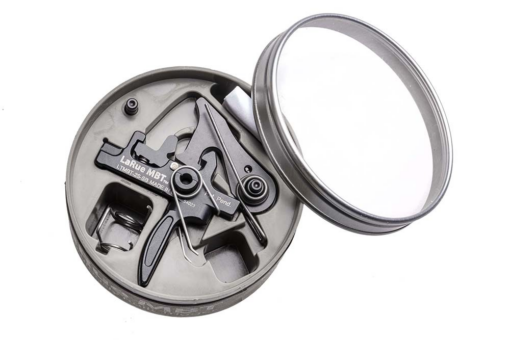

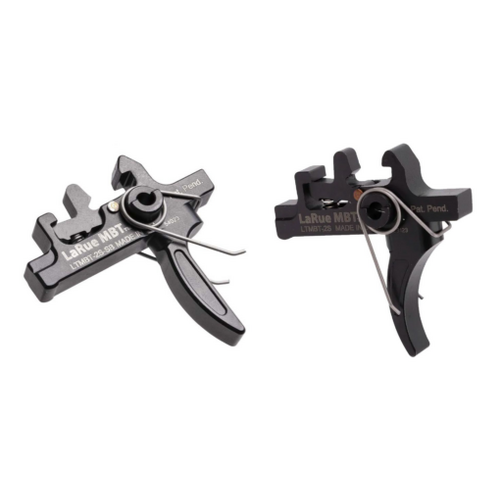

The LaRue Tactical MBT-2S (Meticulously Built Trigger) is a precision two-stage non-cassette fire control group engineered for standard mil-spec AR-15 and AR-10/LR-308 pattern lower receivers. Precision CNC-machined from solid S7 tool steel, the MBT-2S replaces standard, gritty single-stage triggers with a smooth take-up, a distinct second-stage wall, a crisp break, and a positive tactile reset. The component package includes two interchangeable springs, allowing users to select between a lighter pull for accuracy rigs or a heavier pull for field and duty applications.

Key Features

S7 Tool Steel Construction: Precision CNC-machined hammer, trigger, and disconnector fabricated from shock-absorbing, wear-resistant S7 tool steel.
Two-Stage Operation: Features a smooth first-stage take-up leading to a crisp break with minimal over-travel.
Dual Spring Configurations: Includes a standard light spring offering a 4.5 lb total pull weight (2.5 lb first stage / 2.0 lb second stage) and an alternate heavy spring offering a ~6.0 lb total pull weight.
Curved Bow Interface: Designed with a wide, distinctively squared-off curved face for consistent finger placement and leverage.
Standard Mil-Spec Fitment: Compatible with common .154-inch small-pin receivers across AR-15 and AR-10 platforms.

Specifications

Product Name: LaRue Tactical MBT-2S 2-Stage Trigger
Material: Solid S7 tool steel
Trigger Type: Two-stage component trigger (curved bow)
Standard Pull Weight: 4.5 lbs (2.5 lb first stage / 2.0 lb second stage)
Heavy Spring Pull Weight: ~6.0 lbs
Pin Diameter Compatibility: .154-inch small pin (mil-spec)
Platform Compatibility: AR-15 and AR-10/LR-308 lower receivers (e.g., 5.56 NATO, .223 Rem, .300 AAC Blackout, 6.5 Creedmoor, 7.62x51mm / .308 Win)
Power Requirements: None (100% mechanical)

Who is the LaRue MBT-2S 2-Stage Trigger for?

Precision AR-15 and AR-10 Target Shooters — Requires the LaRue MBT-2S trigger's 4.5 lb standard pull weight (broken into a 2.5 lb take-up and a 2.0 lb break) to deliver consistent trigger control and reduce sight deflection during benchrest and long-range shooting.
Designated Marksman Rifle (DMR) Builders — Benefits from the durable CNC-machined S7 tool steel construction and the option to install the included ~6.0 lb heavy spring for an increased safety margin in rugged field conditions.
Australian Owners of Compliant AR-Pattern Rifles — Utilises the standard .154-inch small-pin interface to drop this two-stage AR trigger directly into Category B compliant straight-pull, pump-action, or bolt-action platforms that accept mil-spec fire control groups.

Less suitable for: Firearm owners with lower receivers utilizing legacy .169-inch large-pin holes, such as older Colt models; these platforms require a dedicated large-pin AR-15 fire control group.

SKU	LAR102106LP
Model #	MBT-2S
Brand	Larue
Shipping Weight	0.2000kg
