Will the LaRue Tactical LT120-30 maintain zero after I remove and reinstall it on my hunting rifle?

Yes. Featuring LaRue's proprietary speed-lever quick-detach (QD) system, the LT120-30 is engineered to provide known return-to-zero repeatability when removed and reinstalled on a standard MIL-STD-1913 Picatinny rail. This allows you to safely swap optics in the field without losing your zero.

What is the maximum objective lens size I can mount using the LT120-30 without hitting the rifle barrel or rail?

The LT120-30 accommodates riflescopes with objective bells up to a 56mm maximum outer housing diameter, while still maintaining enough clearance to fit standard lens covers. Scopes with larger objective housings will make contact with the rail due to the lower 1.285-inch centerline height.

Does the LT120-30 mount require any special electrical compliance or SAA/RCM certification for use in Australia?

No electrical compliance or SAA/RCM certification is required. The LT120-30 is a completely mechanical, unpowered firearm mounting system machined from aircraft-grade billet aluminium with no electrical components, power cords, or batteries, making it fully ready for rugged outback hunting environments.

Is this mount suitable for extreme long-range shooting that requires built-in elevation cant?

The LT120-30 features a flat 0 MOA built-in cant and a low 1.285-inch optical centerline height above the rail. If you are shooting at extreme long ranges where supplementary elevation is needed to preserve your internal optic travel, you will require a separate 20 MOA base or a canted mount.

QD Scope Mount - Larue Tactical LT120-30

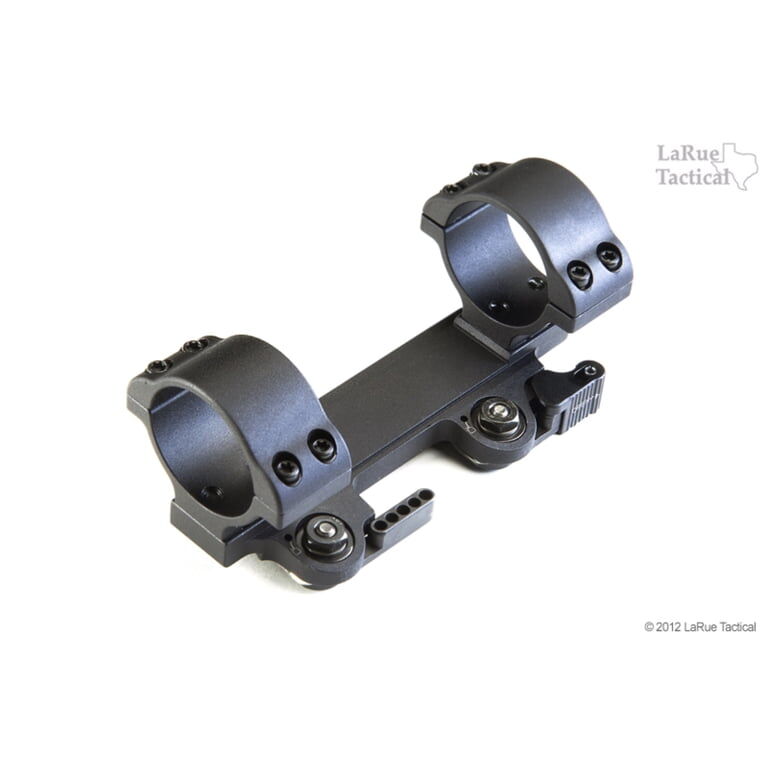

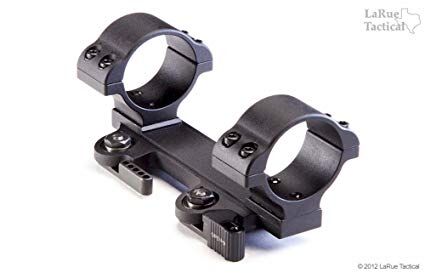

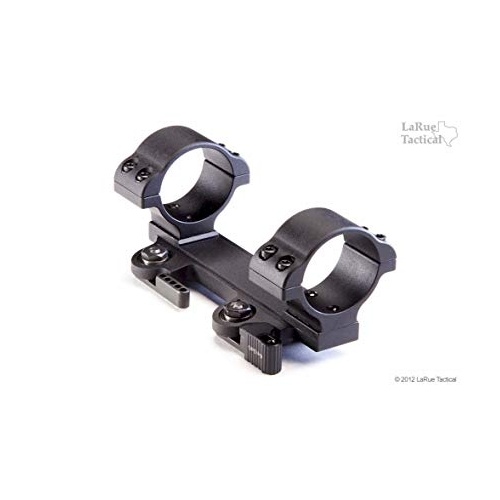

The LaRue Tactical LT120 QD Scope Mount 30mm is a precision-machined, quick-detach mounting platform designed for 30mm maintube riflescopes. Engineered for standard MIL-STD-1913 Picatinny rails, it establishes an optical centerline height of 1.285 inches (32.6 mm) above the rail, positioning the optic lower to the bore than standard AR-height mounts. Constructed from CNC-machined aircraft-grade billet aluminium with a Type III hardcoat anodised black finish, the LT120 provides a rigid 0 MOA foundation with an extended 2.9-inch (73.7 mm) inner ring spacing to accommodate large modern turret assemblies.

Key Features

Return-to-Zero QD System: Proprietary LaRue speed-lever quick-detach mechanism allows rapid optic removal and reinstallation while maintaining zero repeatability.
Low-Profile Centerline: 1.285-inch (32.6 mm) optic height delivers an optimal cheek weld on flat-top rifles, chassis systems, and bolt-action platforms.
Wide Turret Housing Clearance: An inner ring gap of 2.9 inches (73.7 mm) accommodates oversized windage, elevation, and parallax saddle housings.
Heavy-Recoil Construction: Billet aluminium build with Type III hardcoat anodising withstands magnum centrefire calibres including .300 Win Mag and .338 Lapua.
Complete Hardware Kit: Ships with a QD adjustment wrench, mounting hardware, and spare ring screws.

Specifications

Optic Maintube Diameter: 30 mm
Optical Centerline Height: 1.285 inches (32.6 mm)
Built-in Elevation / Incline: 0 MOA
Inner Ring Spacing: 2.9 inches (73.7 mm)
Rail Interface: MIL-STD-1913 Picatinny
Maximum Outer Objective Diameter: 56 mm
Material: Aircraft-grade billet aluminium
Finish: Type III hardcoat anodised black

Who is the Larue Tactical Qd Scope Mount 30mm for?

Long-Range Precision Shooters — Requires a low 1.285-inch (32.6 mm) optical centerline height on bolt-action and chassis systems to achieve a tight, consistent cheek weld while securing 30mm optics with large turret housings using its 2.9-inch (73.7 mm) ring spacing.
Multi-Rifle Hunters — Relies on repeatable quick-detach speed levers to swap a 30mm scope across multiple Picatinny-equipped rifles without loss of zero or re-zeroing in the field.

Less suitable for: Scopes with an external objective bell diameter exceeding 56 mm, setups requiring inline clip-on thermal or night vision devices that demand a 1.535-inch optical centerline, or extreme long-range shooting where a 20 MOA canted mount is required to preserve internal optic elevation travel.

SKU	LAT41090LP
Model #	LT120-30
Brand	Larue Tactical
Shipping Weight	1.0000kg
