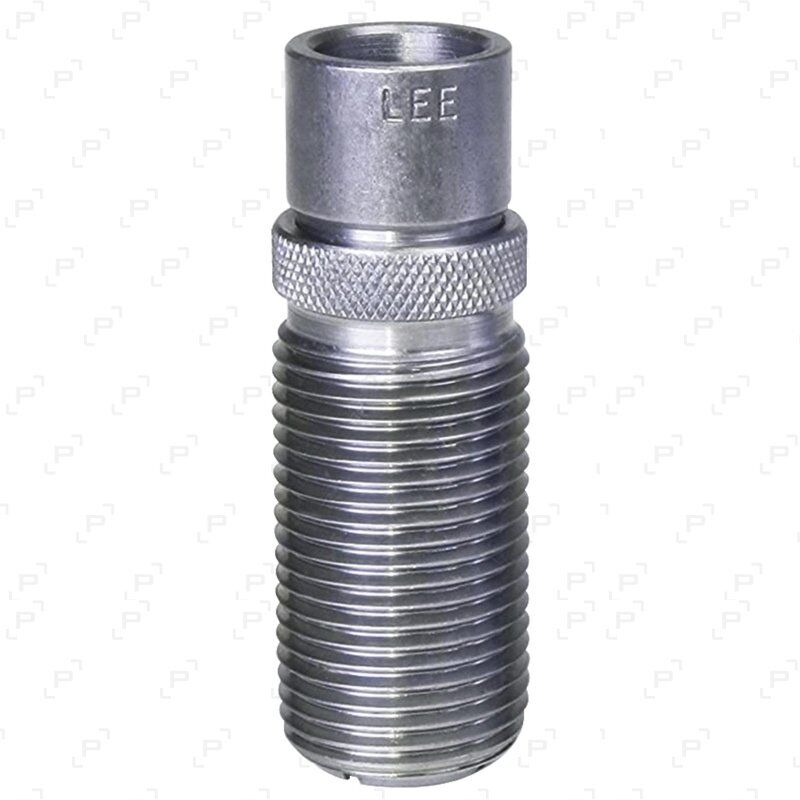

The Lee Precision Quick Trim Die Body for 9mm Luger (MPN: 90032) is a solid steel reloading accessory engineered to hold 9mm Luger (9x19mm Parabellum) cartridge brass securely in a press during case trimming operations. Utilizing standard 7/8"-14 reloading press threading, this die mounts into standard single-stage, turret, or progressive reloading presses. It establishes case length automatically via its internal die shoulder stop depth, eliminating the need to measure cases individually with callipers during the trimming stage. Built from solid steel with hardened internal surfaces, it weighs approximately 0.25 lb (113 g) and operates entirely mechanically without the need for mains power or electrical accessories.

Key Features

• Calibre-Specific Holding: Machined specifically for 9mm Luger (9x19mm) cases to ensure exact case mouth positioning during cutting.
• Integrated System Compatibility: Designed to interface directly with the Lee Deluxe Quick Trim or Value Quick Trim cutter assemblies, allowing one-pass length trimming, chamfering, and deburring when using the Deluxe cutter.
• Calliper-Free Operation: Automatically stops the cutter at factory specification length via mechanical shoulder depth indexing.
• Universal Press Threading: Features industry-standard 7/8"-14 threads to fit major single-stage and progressive reloading presses.
• Durable Construction: Made from solid steel with hardened internal wear surfaces to resist friction and abrasion.

Product Specifications

• Product: Lee Precision Quick Trim Die Body
• Model / MPN: 90032
• Calibre Compatibility: 9mm Luger (9x19mm Parabellum)
• Mounting Thread: Standard 7/8"-14 TPI
• Material: Hardened solid steel
• Weight: Approximately 0.25 lb (~113 g)
• Power Requirements: None (manual/mechanical operation)

Who is the Lee Precision Quick Trim Die Body for 9mm Luger for?

• High-volume 9mm pistol reloaders — requires rapid brass processing via standard 7/8"-14 threaded reloading presses, allowing this Quick Trim Die Body to index 9x19mm cases to consistent trim lengths without stopping to measure individual cases.
• IPSC and Service Pistol competitors — relies on precise case length indexing for uniform headspacing and crimp pressure across match-grade 9mm Luger ammunition using this dedicated calibre-specific die.

Less suitable for: Reloaders preparing cartridges other than 9mm Luger (such as .380 Auto, 9x21mm, or .38 Special), which require dedicated alternate-calibre die bodies, or users operating without a separate Lee Quick Trim cutter assembly, who will require a standalone manual lathe trimmer or an industrial motorized case preparation centre.
