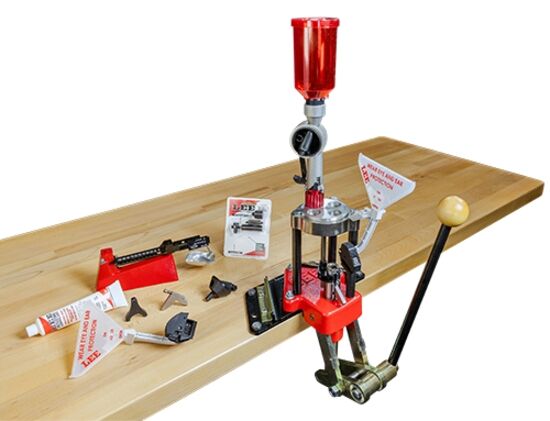

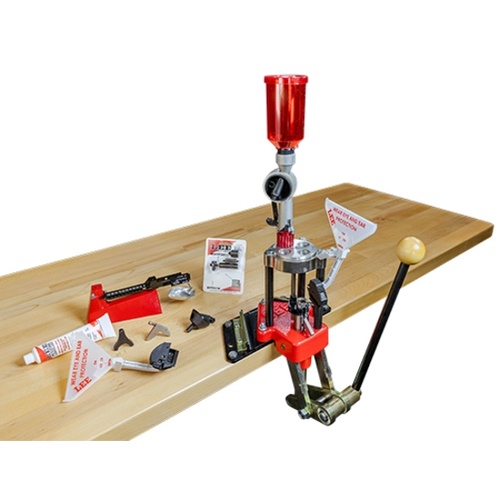

The Lee Precision Classic Turret Press Kit with 4-Hole Auto-Indexing (Model: 90304) is a complete mechanical reloading station designed for handgun and moderate-volume rifle ammunition. Built on a rigid cast-iron base with all-steel linkage, the press features a 3.5-inch ram stroke and an auto-indexing 4-hole turret that automatically advances to the next die position with every handle stroke. This allows reloaders to deprime, resize, prime, charge, seat, and crimp a cartridge in continuous sequence without manually changing dies. The entire kit operates mechanically with zero electrical requirements and utilizes standard 7/8"-14 threaded dies, making it fully compatible with standard Australian shooting sports reloading components.

Key Features

• Semi-Automated Turret Linkage: Advances the 4-hole turret automatically on each stroke to complete a finished round in continuous steps, delivering an output exceeding 250 rounds per hour for handgun ammunition.
• Cast-Iron and Steel Construction: Built with a cast-iron frame, all-steel linkage, and a hardwood ball grip, contributing to a total shipping weight of approximately 17.5 lbs (~7.9 kg) for rigid bench-mounted stability.
• Through-Ram Waste Disposal: Directs spent primers down through the centre of the hollow ram into a clear PVC collection tube to keep work surfaces free of debris.
• Dual-Mode Operation: Auto-indexes cartridges with overall lengths up to 3.313 to 4.0 inches, or converts into a manual single-stage press for magnum rifle cases over 4 inches (101.6 mm) simply by removing the central index rod.

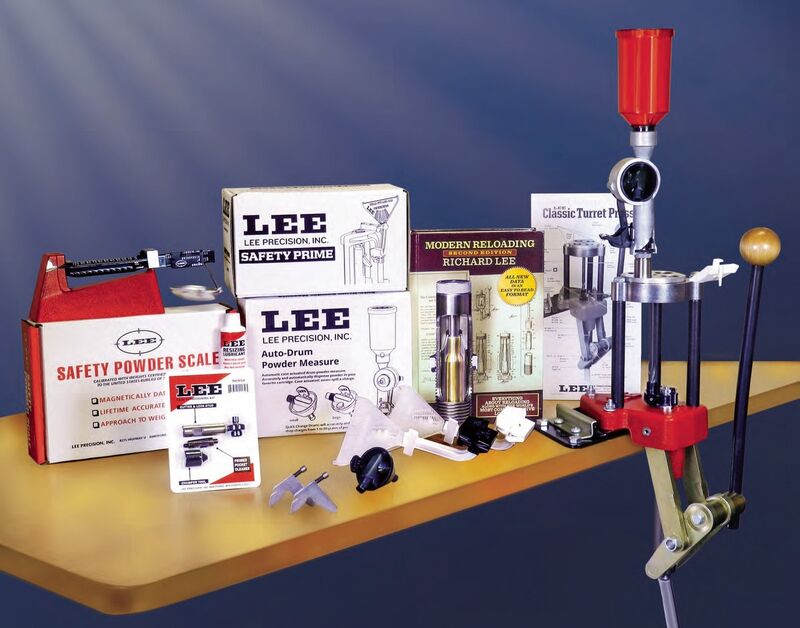

• Comprehensive Tooling Kit: Includes the 4-Hole Classic Turret Press, Deluxe Auto-Drum Powder Measure with riser, Large and Small Safety Prime tools, Safety Powder Scale, Case Conditioning Combo, sizing lube, and the Modern Reloading Second Edition manual.

Product Specifications

• Model: 90304
• Frame Material: Cast iron with all-steel mechanical linkage
• Die Thread Compatibility: Standard 7/8"-14
• Ram Stroke: 3.5 inches
• Maximum Cartridge Overall Length (Auto-Index): 3.313 to 4.0 inches
• Maximum Cartridge Overall Length (Manual Mode): Over 4.0 inches (101.6 mm)
• Production Output: Exceeds 250 rounds per hour (handgun calibres)
• Shipping Weight: ~17.5 lbs (~7.9 kg)
• Power Source: 100% manual mechanical operation

Who is the Lee Precision Classic Turret Press Kit for?

• Handgun sport shooters — requires a sustained production rate exceeding 250 rounds per hour using an auto-indexing 4-hole turret system that deprimes, primes, charges, and seats pistol cartridges in continuous sequence on a 3.5-inch ram stroke.
• Hunters and standard rifle target shooters — requires the versatility to load ammunition up to 3.313 to 4.0 inches in cartridge overall length in auto-indexing mode, or cartridges measuring over 4.0 inches (101.6 mm) in manual-indexing mode, supported by a 17.5 lbs cast-iron turret press platform.

Less suitable for: High-volume competitive shooters requiring 500+ rounds per hour (who are better served by a fully progressive reloading press), or ultra-large calibres such as .50 BMG that exceed the 7/8"-14 die threads and 3.5-inch stroke geometry (which require a dedicated large-bore single-stage press).
