What reloading presses are compatible with the Lee Precision 90437 Deluxe Quick Trim?

This case trimmer mounts directly into any standard reloading press that accepts industry-standard 7/8"-14 threaded dies. It operates mechanically without any electrical power, making it entirely independent of mains voltage or Australian plug compliance.

Do I need any extra accessories or dies to start trimming brass with this tool?

Yes, the trimmer cannot function on its own and requires a dedicated Lee Quick Trim Die matched to your specific cartridge, which is sold separately. Additionally, pilots and collets are not needed since case indexing is handled entirely by the specific die body.

How fine are the adjustments for controlling the case trim length?

The trimmer features a built-in click-adjustable stop that is precisely calibrated in 0.001-inch increments. This micro-adjustable system allows you to easily dial in exact trim lengths or slightly shorten cases to reduce the frequency of future trimmings.

Is this manual trimmer suitable for high-volume brass processing?

The 90437 is engineered for 100 percent manual hand-crank operation and is best suited for low-to-medium volume reloading batches. If you plan to process hundreds or thousands of cases at a time, hand fatigue can become an issue, in which case a power-assisted trimming setup would be more efficient.

Case Trimmer - Lee Precision 90437

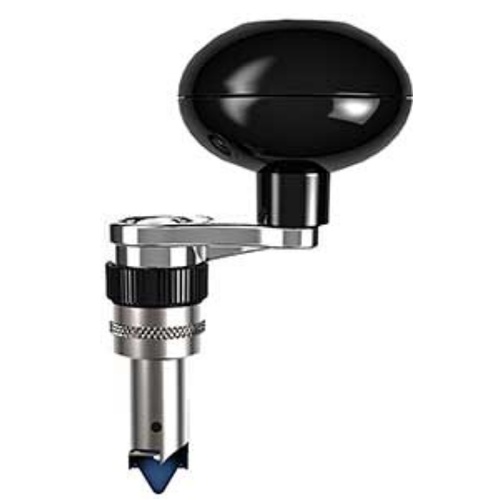

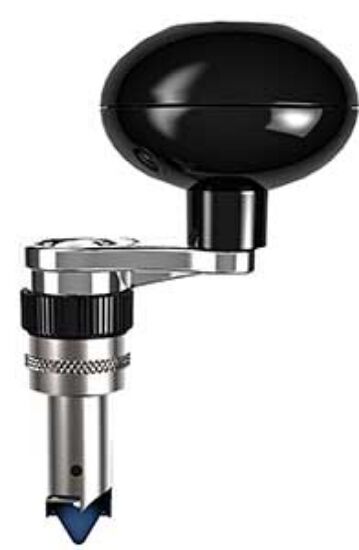

The Lee Precision Deluxe Quick Trim Case Trimmer (Model 90437) is a press-mounted case preparation tool engineered to condition metallic cartridge brass in a single step. Designed to install into reloading presses utilizing standard 7/8"-14 threads, the tool trims brass cases to length while simultaneously inside-chamfering and outside-deburring the case mouth. It operates via a 100% manual hand-crank mechanism, eliminating the need for electrical connections, collets, or calibre-specific pilots.

Key Features

3-in-1 Case Preparation: Simultaneously trims cases to length, deburrs the exterior mouth, and chamfers the interior case mouth in one continuous hand-cranked operation.
Micro-Adjustable Length Control: Features a click-adjustable stop calibrated in 0.001-inch (0.0254 mm) increments to allow precise trim depth adjustments.
Integrated Chip Catcher: Includes a snap-on plastic waste receptacle designed to collect brass shavings directly at the press.

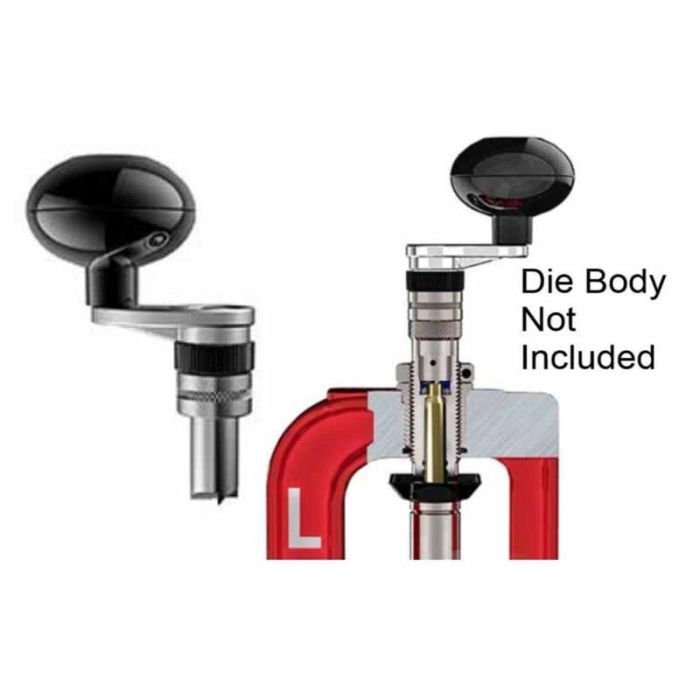

Press-Mounted Integration: Mounts directly into calibre-specific Lee Quick Trim Dies on standard reloading presses, maintaining precise case alignment without standalone case lathes or calipers.

Specifications

Model Number: 90437
Operation: 100% manual hand crank
Adjustment Increments: 0.001-inch (0.0254 mm) per click
Mounting Interface: Standard 7/8"-14 thread (via calibre-specific Quick Trim Die)
Packaged Shipping Weight: Approximately 0.365 to 0.38 lbs (165 to 172 grams)
Calibre Indexing: Integrated into matching Quick Trim Die (no pilots or collets required)

Who is the Lee Precision Deluxe Quick Trim Case Trimmer for?

Low-to-Medium Volume Metallic Cartridge Reloaders — Delivers micro-adjustable depth control via a click-adjustable stop calibrated in 0.001-inch increments, allowing reloaders to precisely size brass on their standard 7/8"-14 threaded press without setting up standalone lathe pilots or calipers.
Reloaders Seeking Manual Case Preparation — Provides an all-in-one press-mounted case trimmer weighing just 0.365 to 0.38 lbs that requires no 240V mains power or motor attachments to trim, chamfer, and deburr cartridge brass.

Less suitable for: High-volume reloaders processing batches of hundreds to thousands of cases, where repetitive manual hand-cranking causes fatigue; a motorized case trimmer or drill-powered trimming unit is better suited for sustained bulk processing.

SKU	LE102211LP
Model #	90437
Brand	Lee Precision
Shipping Weight	0.2000kg
