The Lee Precision 90544 Pacesetter 3-Die Set is a complete rifle reloading kit engineered for 8x57mm Mauser (8x57 JS / 7.92x57mm Mauser) cartridges. Machined to standard 7/8"-14 thread specifications, this steel die set mounts into all conventional single-stage or progressive reloading presses. It provides full-length sizing and depriming to restore fired brass to factory dimensions, a dead-length bullet seating die for consistent overall cartridge length, and a dedicated Lee Factory Crimp Die to firmly secure projectiles against recoil-induced setback in magazines.

Key Features

• Full-Length Resizing: Features an integrated decapping unit that resizes the entire case body and neck to ensure reliable chambering in standard rifle chambers.
• Factory Crimp Die: Applies a segmented post-seating crimp that secures cannelured or non-cannelured projectiles to maintain uniform start pressures and prevent bullet movement.
• Standard Press Mounting: Uses standard 7/8"-14 threads to ensure compatibility across major brands of reloading presses.

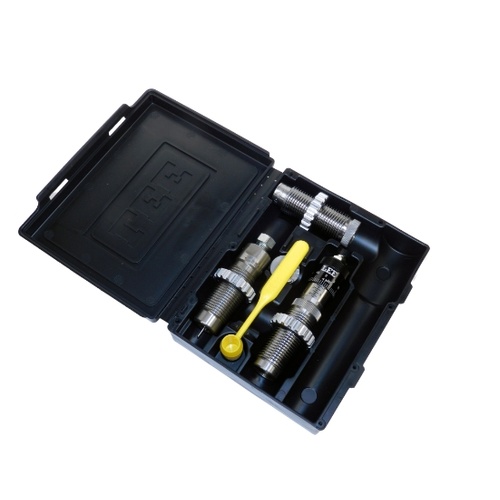

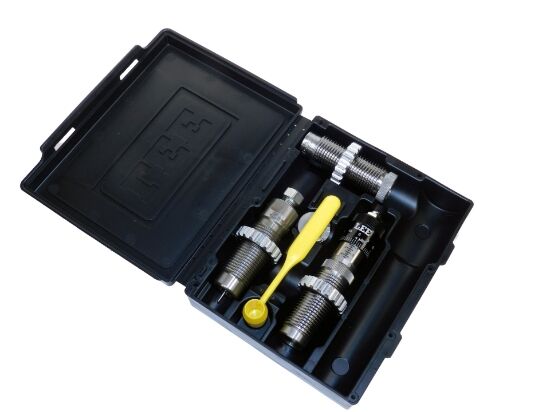

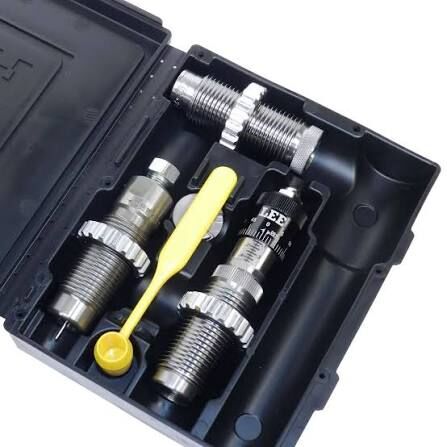

• Complete Setup: Includes a universal shell holder, powder dipper, load data instruction sheet, and a fitted storage box.

Product Specifications

• Calibre Compatibility: 8x57mm Mauser (8x57 JS / 7.92x57mm)
• Compatible Bullet Diameter: .323-inch (8.22 mm)
• Thread Interface: Standard 7/8"-14 thread pitch
• Included Dies: Full-length sizing die with decapper, bullet seating die, Lee Factory Crimp Die
• Packaged Weight: Approximately 0.45 kg to 0.55 kg

Who is the Lee Precision Pacesetter 3-Die Set for 8x57 JS Mauser for?

• Handloaders reloading surplus military service rifles — relies on the full-length resizing die and standard 7/8"-14 thread pitch mounting to reform fired military brass to factory dimensions for reliable feeding in Kar98k and Gewehr 98 actions.
• Handloaders loading mixed-range brass for European sporting rifles — uses a dedicated .323-inch (8.22 mm) bullet seating and factory crimping profile to ensure uniform projectile retention and chambering across varied brass headstamps.

Less suitable for: Rifles featuring early-pattern German military 8x57 J bores that require a narrower .318-inch bullet diameter, or handloaders processing brass fired exclusively in a single bolt-action rifle who require a dedicated neck-sizing die set to maximise brass working life.
