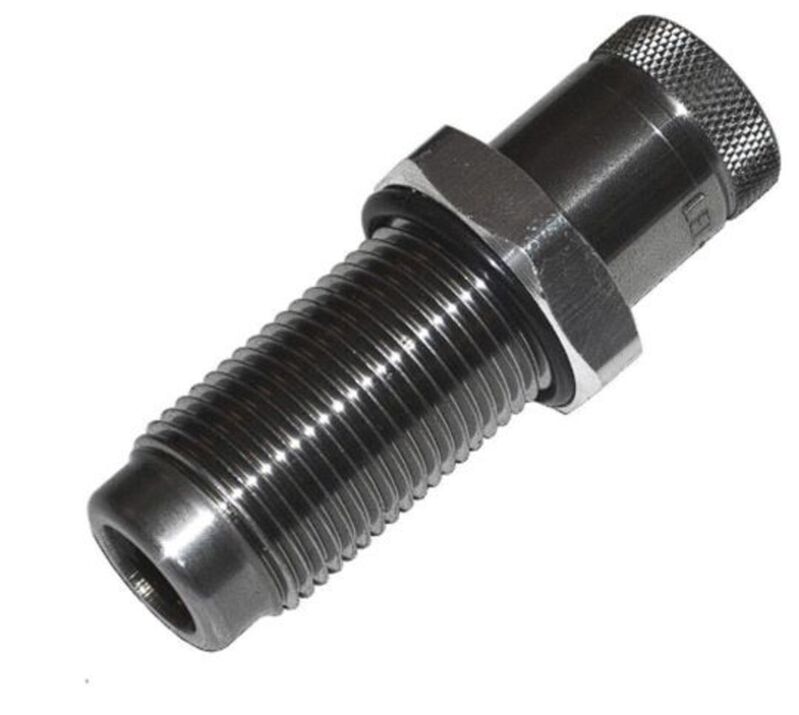

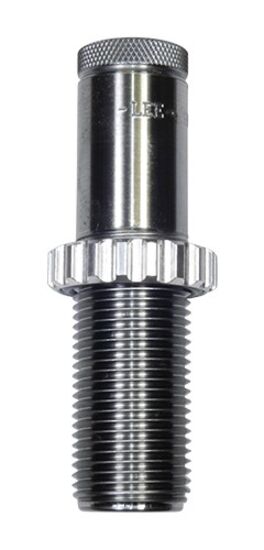

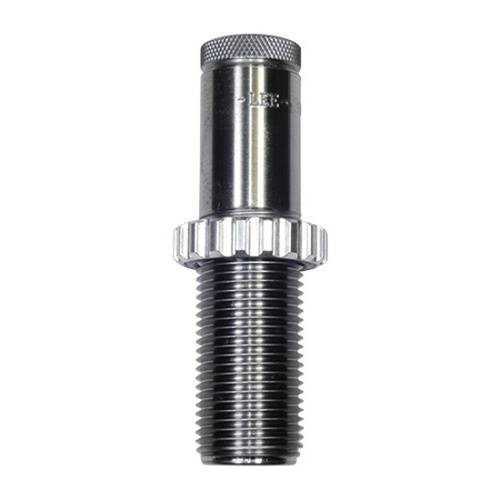

The Lee Precision 90614 Quick Trim Die is a press-mounted cartridge trimming die engineered specifically for 9.3x62mm Mauser brass. Designed to thread directly into standard reloading presses, it holds full-length sized cases rigidly in place, indexing off the case shoulder datum line to achieve precise, repeatable trim lengths without requiring manual calliper measurements between cuts. When paired with a Lee Deluxe Quick Trim cutter assembly, it allows handloaders to trim, chamfer, and deburr cartridge mouths directly on the press.

Key Features

• Press-Mounted Operation: Mounts via industry-standard 7/8"-14 threads to enable case trimming directly on single-stage, turret, or progressive reloading presses.
• Calibre-Specific Shoulder Indexing: Features a hardened internal datum made specifically for the 9.3x62mm Mauser shoulder geometry, ensuring uniform case length consistency across batches.
• Integrated Chamfer and Deburr Capability: Interfaces with the Lee Deluxe Quick Trim cutter head to trim length and dress internal and external case mouths in a single mechanical motion.
• Precise Length Control: Supports trim adjustments in 0.001-inch increments when paired with click-adjustable Deluxe Quick Trim cutter assemblies.
• Compact Form Factor: Weighs approximately 150 to 250 g, eliminating the bench footprint of standalone lathe-style case trimming tools.

Product Specifications

• Product Type: Case trimming die
• Part Number: 90614
• Calibre Compatibility: 9.3x62mm Mauser brass only
• Thread Interface: Standard 7/8"-14 press thread
• Tool Compatibility: Lee Deluxe Quick Trim (manual) or Deluxe Power Quick Trim assemblies
• Adjustment Resolution: 0.001-inch increments (when used with Deluxe cutter head)
• Weight: Approx. 150–250 g
• Operation Mode: Manual / Mechanical

Who is the Lee Precision Quick Trim Die for 9.3x62mm for?

• Big-game hunters and sporting reloaders — Prepares fired 9.3x62mm Mauser brass for heavy-game hunting ammunition by indexing directly off the cartridge shoulder to maintain consistent trim lengths adjusted in 0.001-inch increments on standard 7/8"-14 threaded presses.
• Space-conscious handloaders — Eliminates the footprint of bench-mounted lathe trimmers by utilizing the standard 7/8"-14 thread of an existing reloading press to trim 9.3x62mm cases within small-to-medium hunting batches of 20 to 100 rounds.

Less suitable for: High-volume production reloading of hundreds to thousands of cases, or shooters loading alternative 9.3mm cartridges such as 9.3x74R or 9.3x64mm Brenneke; high-volume brass prep is better served by commercial motorised rotary lathe trimmers, while alternative chamberings require their own calibre-specific trimming dies.
