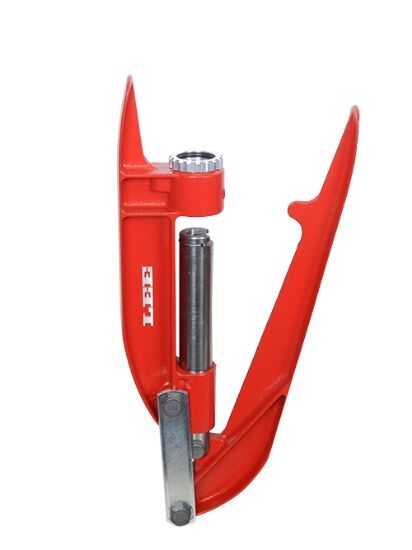

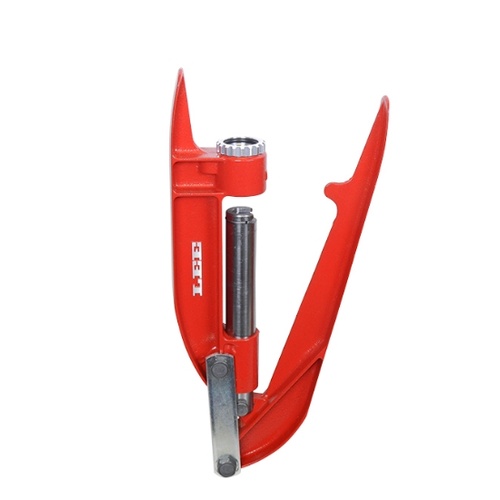

The Lee Precision 90685 Breech Lock Hand Press is a compact, handheld single-stage reloading press designed for portable ammunition assembly without requiring a permanent bench mount. Featuring a cast aluminium C-frame design, this 100% manual hand tool measures 11.5 inches (~29.2 cm) in overall length and weighs approximately 1.5 to 1.75 lbs (~0.68 to 0.79 kg). It accepts standard 7/8"-14 threaded reloading dies using the integrated Breech Lock Quick-Change bushing system, allowing users to swap dies with a 1/6 turn while preserving calibrated lock-ring settings. It utilizes standard universal press shell holders and accommodates cartridges up to a maximum overall cartridge length (OAL) of 3.650 inches (~92.7 mm).

Key Features

• Breech Lock Quick-Change System: Enables rapid die exchanges via a 1/6-turn mechanism using standard 7/8"-14 threaded dies, retaining exact die adjustments between sessions.
• Bench-Free Operation: Fully functional handheld design requiring no mounting bolts, clamps, or dedicated workbenches.
• Universal Compatibility: Works with standard universal press shell holders and includes one Breech Lock Quick Change Bushing.
• Broad Calibre Capability: Accommodates standard handgun calibres up to standard rifle cartridges and moderate belted magnums like .300 Win Mag and .375 H&H within its 3.650-inch (~92.7 mm) stroke clearance.

Product Specifications

• Press Type: Handheld single-stage reloading press
• Model / MPN: 90685
• Frame Construction: Cast aluminium, C-frame configuration
• Tool Length: 11.5 inches (~29.2 cm)
• Tool Weight: Approximately 1.5 to 1.75 lbs (~0.68 to 0.79 kg)
• Maximum Overall Cartridge Length (OAL): 3.650 inches (~92.7 mm)
• Die Thread Compatibility: 7/8"-14 via Breech Lock bushings
• Power Source: Manual hand actuation

Who is the Lee Precision 90685 Breech Lock Hand Press for?

• Varmint shooters developing loads at the shooting range — provides an 11.5-inch (~29.2 cm) portable reloading hand press footprint that allows shooters to seat bullets and adjust powder charges directly at the firing line between test groups.
• Hunters needing field-adjustable ammunition in remote camps — features a lightweight 1.5 to 1.75 lbs (~0.68 to 0.79 kg) handheld form factor that packs into gear bags for off-grid hunting setups without requiring a mounting bench.
• Shooters with space constraints in apartments or caravans — processes ammunition up to 3.650 inches (~92.7 mm) maximum overall length in compact living quarters where bench-mounted presses cannot be permanently bolted down.

Less suitable for: Reloading cartridges exceeding 3.650 inches (~92.7 mm) overall length (such as .338 Lapua Magnum or .50 BMG) or high-volume batch loading of hundreds of rounds per session; these requirements are better served by a heavy bench-mounted single-stage press or a progressive reloading press.
